| Pipe Size | 3/4 in. |
| Connection Type | Union NPT |
| Valve Type | Mixing Valves |
| Capacity (Cv) | 3.9 Cv |
| Fluid Temperature | Cold Inlet: 39 F to 80 F; Hot Inlet: 120 F to 212 F; Mixed Outlet: 70 F to 180 F |
| Materials (Body) | Teflon coated Nickel plated Brass/Bronze |
| Materials (Packing) | EPDM O-rings |
| Application | Heat Pump Systems; Nursing homes; Public facilities; Radiant floor heating; Space heating; Combo systems; Solar hot water; Greenhouses |
| CSA | CSA Certified |
| Maximum Safe Operating Pressure (psi) | 150 psi |
| Approvals, Others | NSF/ANSI; IAPMO |
| Minimum flow rate (gpm) | 0.5 gpm |
| Minimum flow rate (lpm) | 1.9 lpm |
| Approvals, ASSE | No Approval |
Description

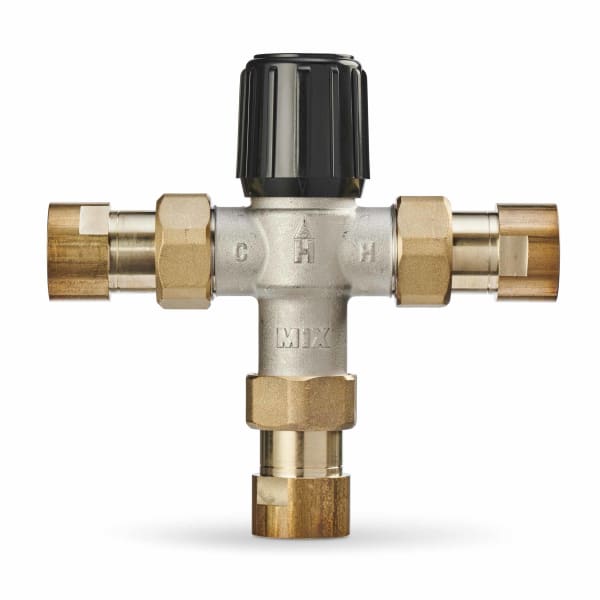

The AM101R-UT-1 is a thermostatic mixing valve from Resideo (Honeywell Home) for hydronic heating service, 3/4 inch, NPT connection.
A mixing valve solves a problem that has no other answer: a water heater has to be kept hot enough to suppress bacterial growth in the tank, and that temperature is too hot to deliver to a tap. The valve blends stored hot water with cold on its way out, so the tank stays hot and the fixture does not.
This is a heat-only valve. The R series is built for hydronic heating loops — radiant floor supply temperature, boiler protection, blending on a heating circuit. It is not for potable water service. Fitting a heat-only valve on domestic hot water puts a component outside its rating on the water people drink and bathe in. Check the model before ordering if the application is potable.
Set the outlet temperature with a thermometer at the fixture, not by the dial alone, and re-check it after the system has settled. Inlet conditions move the mix, and a valve set on a cold line reads differently once the loop is up to temperature.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AM101R-UT-1/U
- Type: Heat-only mixing valve (not for potable water)
- Size: 3/4 in
- Connection: NPT
- UPC: 085267825238
- Shipping weight: 14.0 lb
- Category: Mixing Valves
