| Pipe Size | 1/2 in. |
| Connection Type | Threaded |
| Body Pattern | Angle |
| Capacity (Cv) | 4.6 Cv |
| Close-off Pressure | 17 psi maximum |
| Pressure Rating | Hot Water--150 psi maximum; Steam--15 psi maximum |
| Materials (Body) | Bronze |
| Application | Precise and automatic control of room temperature in two-pipe systems by modulating the flow of hot water or steam through high capacity heating units when used with T104 Thermostatic Actuators |
| Used With | T104 |
| Dimensions | 1 in. x 2 9/16 in. |
| Temperature Range (F) | 248 F Maximum |
| Capacity | high |
| Capacity (Btu/hr-steam) | 127,000 Btu/hr |
Description

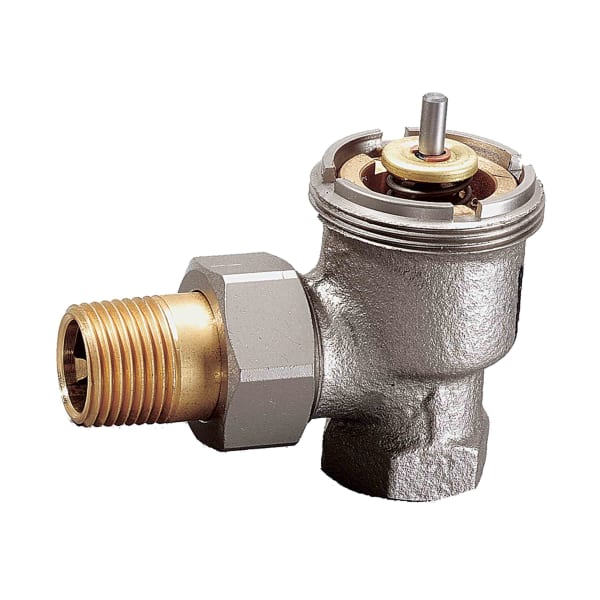

The V110E1004 is an angle-pattern thermostatic radiator valve body from Resideo (Honeywell Home), 1/2 inch, rated 4.6 Cv and built to the high-capacity design.
A thermostatic radiator valve gives one radiator its own temperature control without any wiring. The head senses room air and opens or closes the valve underneath it, so a south-facing room that runs hot stops taking heat while the rest of the loop keeps running.
Pattern matters more than it sounds. A angle body is chosen to suit how the pipe arrives at the radiator: straight where the supply runs in line with the valve, angle where it turns up out of the floor, horizontal angle where it comes through the wall and has to turn in plan rather than in elevation. Fitting the wrong pattern means re-piping, not re-orienting.
The 4.6 Cv rating is what sizes the valve to the radiator. Too small and the radiator starves at design temperature; too large and the head loses authority, hunting between too hot and too cold instead of holding a setting.
What a working TRV takes: a valve body and a thermostatic head, ordered separately. This listing is the body.
Thermostatic heads for this valve body
- Resideo T100B1035 Thermostat Radiator Actuator With Remote Sensor - 48-79F
- Resideo T100C1026 Thermostat Radiator Actuator with Remote Sensor and Dual Capillary
- Resideo T104A1040 High Capacity Thermostatic Radiator Actuator
- Resideo T104B1046 High Capacity Thermostatic Radiator Actuator 16 ft
- Resideo T104C1036 High Capacity Thermostatic Radiator Actuator - 40 mm Diameter
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V110E1004/U
- Pattern: Angle
- Connection size: 1/2 in
- Cv: 4.6
- Series: High Capacity
- Category: Thermostatic Radiator Valves
