| Frequency | 60 Hz |
| Electrical Ratings | 120 Vac, 0.4A max. |
| Application | Duct mounted |
| Dimensions | 16 in. x 20 in. |
| UL | Listed: Report E30954 |
| Type of Air Cleaner | Electronic Air Cleaner |
| Airflow Capacity (cfm) | Maximum-- 1200 cfm |
| Airflow Capacity (m³/hr) | Maximum-- 2040 m³/hr |
| Efficiency Standard | Efficiency ranges are defined for small particles, E1=0.3 to 1.0 microns; medium particles, E2=1.0 to 3.0 microns; and large particles, E3=3.0 to 10.0 microns.,Efficiency ratings are based on American Society of Heating, Refrigerating and Air-Conditioning |
| Fractional Efficiency | E1=81%, E2=93%, E3=99% |
| Replacement Filters | 50000293-001 |
| Static Pressure Drop (in. w.c.) | 0.26 at 500 FPM |
| Additional Features | Includes high air flow post filter to enhance filtration performance. |
Description

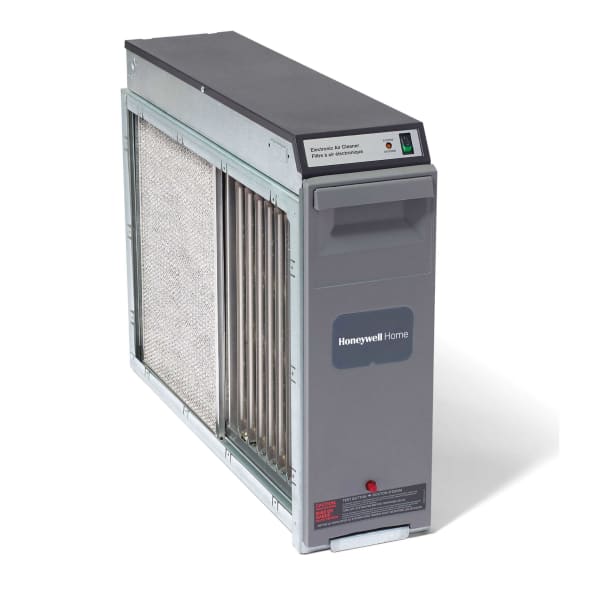

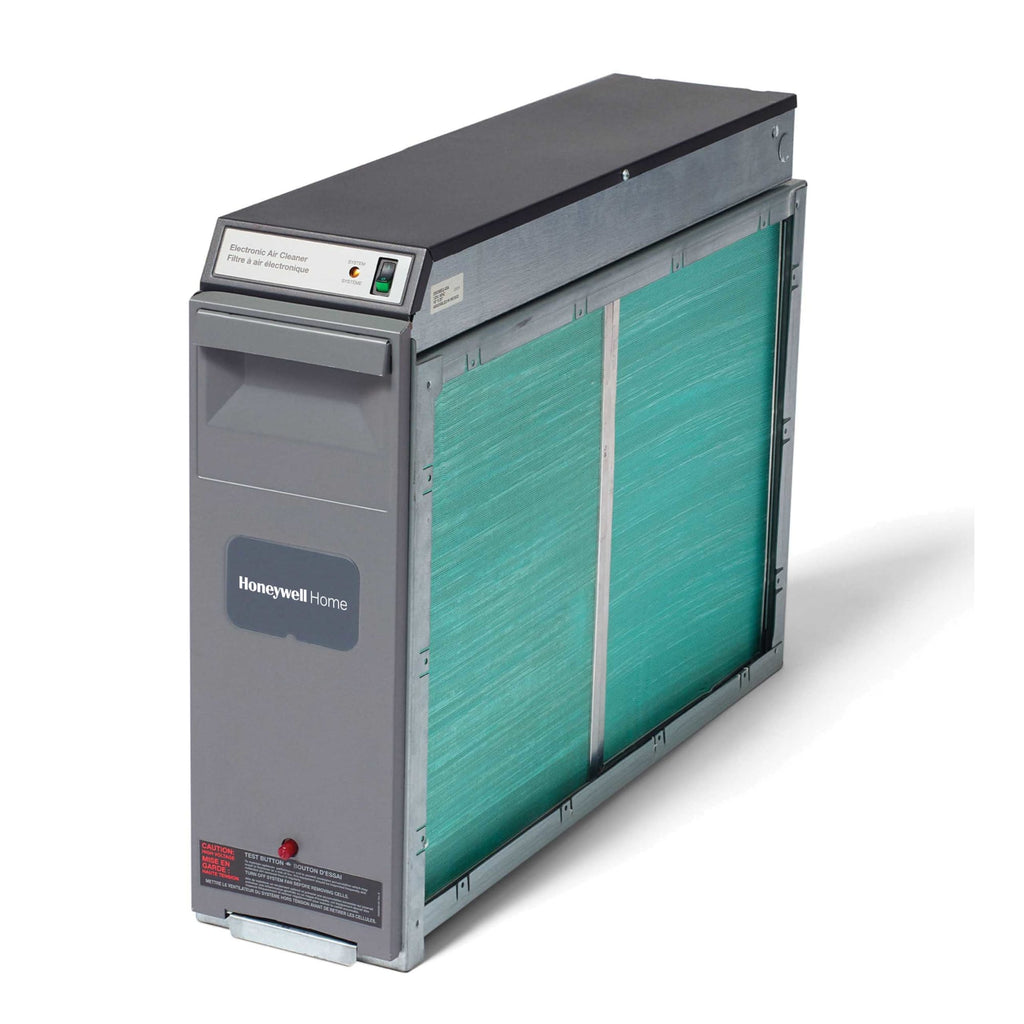

The F300E1001 is an electronic air cleaner from Resideo (Honeywell Home), 16 in x 20 in.
An electronic air cleaner does not strain particles out of the air — it charges them and then collects them on plates of the opposite charge. That is a different physics from media filtration, and it shows up in the numbers: this unit holds back 81% of particles in the 0.3–1.0 micron range, where a MERV 11 media filter in the same cabinet size manages about a third of that. Small particles are the ones that reach deep into the lungs and the ones a pleated filter is worst at.
The trade is maintenance. The collecting cells are washable and they have to actually be washed — an electronic cleaner that goes a year without service stops collecting and becomes an expensive empty box. Plan on pulling the cells a few times a heating season.
Includes high air flow post filter to enhance filtration performance.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: F300E1001/U
- Type: Electronic air cleaner
- Cabinet size: 16 in x 20 in
- Airflow capacity: 1200 cfm
- Fractional efficiency: E1=81%, E2=93%, E3=99%
- Static pressure drop: 0.26 at 500 FPM
- Power: 120 Vac, 0.4A max.
- UPC: 085267207874
- Category: Air Cleaners & Filters
