| Pipe Size | 1 1/4 in |
| Connection Type | NPT |
| Body Pattern | Two-way |
| Valve Type | Ball Valve |
| Voltage | 100 to 240 V |
| Frequency | 50 Hz; 60 HZ |
| Electrical Connections | 10 ft cable |
| Fluid Temperature | 36 °F to 149 °F |
| Ambient Temperature | 32 °F to 113 °F |
| Controlled Fluid | Potable Water |
| Mounting | Valve can be installed in any orientation |
| Application | Water Leak Detection and Shut off Valve |
| Includes | L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable |
| Dimensions | 6.5 in H x 5.28 in L x 2.67 W |
| CSA | CAN/CSA C22.2 |
| Approvals, CE | CE EMC 2014/30/EU; CE RED 2014/53/EU |
| Approvals, Others | RoHS 2011/65/EU, ES 50040083; REACH 1907/2006; FCC part 15, subpart C |
| Pressure Range (psi) | Pressure resistance min. PN10 |
| Available Accessories | Leak Detector Cable; WiFi Water Leak and Freeze Detector, Spare Actuator, Spare Power Cable, Spare Valve |
Description

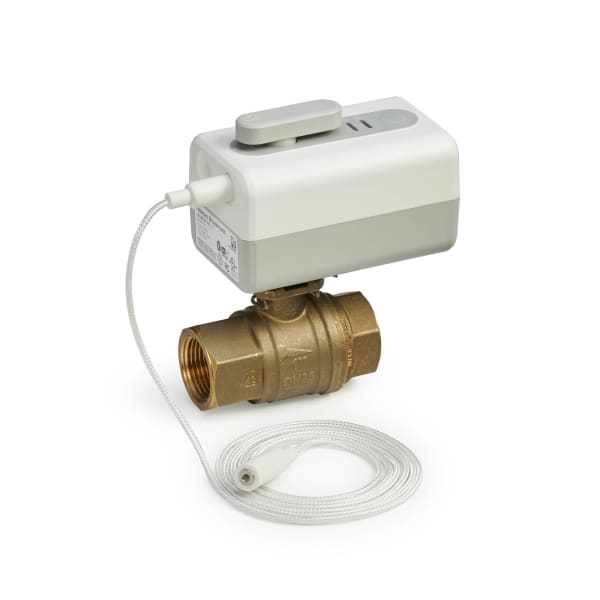

The VWS02Y-11/4 is an L5 Wi-Fi shutoff valve from Resideo (Honeywell Home), 1 1/4 in NPT lead-free ball valve with actuator.
Water damage is the claim that does not need a flood. A supply line that weeps behind a wall, a water heater that lets go while the house is empty, a washing machine hose at the end of its life — all of it runs until somebody notices, and the cost is the drying and the rebuild rather than the water.
This is the part that ends it. The actuator drives a full-port ball valve on the main; when the sensor finds water, or when you close it from the app, the supply stops. A detector tells you there is a leak. A valve stops it while you are in another state.
Size it to the main, not to the fixture — this one is 1 1/4 in NPT. The valve is lead-free because it sits in potable supply.
In the box: L5 actuator, lead-free ball valve, power supply adapter, actuator to ball valve metal clip, 5 ft water leak detector cable.
Mount orientation is free, which matters where the main enters at an awkward angle.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VWS02Y-11/4
- Type: Wi-Fi water shutoff valve
- Pipe size: 1 1/4 in
- Connection: NPT
- Valve type: Ball Valve
- Power: 100 to 240 V
- Fluid temperature: 36 °F to 149 °F
- Includes: L5 Actuator, Lead-free Ball Valve, Power Supply Adapter, Actuator to Ball Valve Metal Clip, 5 ft Water Leak Detector Cable
- UPC: 194159007932
- Category: Leak Detection Valves
