| Supply Voltage | 18 to 30 Vac |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | Screw terminals |
| Electrical Ratings | 18 to 30 Vac |
| Operating Temperature | 32 F to 120 F |
| Operating Humidity | 5 to 90% RH, non-condensing |
| Application | Up to 3 Heat/2 Cool Conventional Systems; Up to 4 Heat/2 Cool Heat Pumps |
| Used With | RedLINK™ accessories |

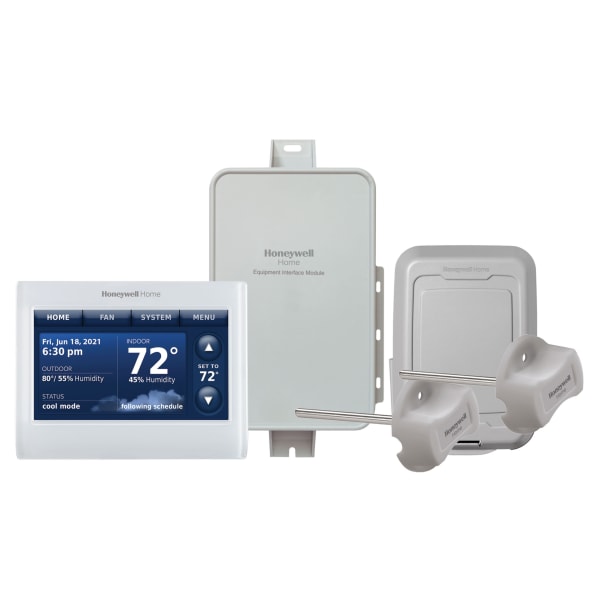

| Includes | THX9421R5021WW Prestige® 2-Wire IAQ Thermostat, THM5421R1021 Equipment Interface Module, C7089R1013 Wireless Outdoor Sensor and 2 Duct Sensors |
| Dimensions | 3 1/2 in. High, 4 1/2 in. Wide, 7/8 in. Deep |
| Hazmat Information | LITHIUM METAL BATTERIES in compliance with Section II of PI970 |
| Stages | Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO-EM.HEAT |
| Switch Positions (Fan) | AUTO-ON-CIRC-FOLLOW SCHEDULE |
| Power Method | Hardwired |
| Color | Front: White, Side: White |
| Programmability | 7 Day Program or Non-Programmable |
| Terminal Designations | R, RC, RH, C, W-O/B, W2-AUX1, W3-AUX2, Y, Y2, G, A-L/A, U1, U1, U2, U2, U3, U3, S1, S1, S2, S2, S3, S3, S4, S4, A, B, C, D |
| Display Size | 8.06 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range (F) | Heat: 40 F to 90 F; Cool 50 F to 99F |
| Humidification Setting Range | Cooling: 40 to 80% RH. Heating: 10 to 60% RH. |
| Dehumidification Setting Range | 40 to 80% RH. |
Description
The YTHX9421R5101WW is a Prestige thermostat from Resideo (Honeywell Home), supplied as a kit, Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems.
A thermostat earns its price on the equipment it can drive properly, not on the screen. Multi-stage heating, a heat pump with auxiliary, humidification and ventilation are all decisions the thermostat makes or fails to make; a stat that can only switch one stage runs two-stage equipment as though it were single-stage and throws away the efficiency that was paid for.
This one drives Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems. Check that against the equipment before ordering — it is the specification that decides whether the install works, and the one most often skipped in favor of the feature list.
RedLINK is what lets it work with wireless sensors, outdoor sensors and equipment modules without pulling wire for each one. On a retrofit that is the difference between a thermostat swap and opening walls.
The kit version ships with the parts the system needs to be commissioned together rather than sourced separately and hoped to match.
Used with: RedLINK™ accessories.
Goes with: THX9421R5021WW, THM5421R1021, C7089R1013.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: YTHX9421R5101WW/U
- Type: Prestige thermostat kit
- Stages: Up to 4 Heat/2 Cool Heat Pumps; Up to 3 Heat/2 Cool Conventional Systems
- Supply voltage: 18 to 30 Vac
- System switch: HEAT-OFF-COOL-AUTO-EM.HEAT
- Application: Up to 3 Heat/2 Cool Conventional Systems; Up to 4 Heat/2 Cool Heat Pumps
- Used with: RedLINK™ accessories
- Dimensions: 3 1/2 in High, 4 1/2 in Wide, 7/8 in Deep
- UPC: 085267025850
- Shipping weight: 5.0 lb
- Category: Thermostats
