| Supply Voltage | 18 to 30 Vac or 750 mV |
| Frequency | 50 Hz; 60 Hz |
| Electrical Connections | Screw terminals |
| Electrical Ratings | 18 to 30 Vac or 750 mV |
| Operating Temperature | 32 F to 120 F |
| Operating Humidity | 5 to 90% RH, non-condensing |
| Application | 1 Heat/1 Cool Conventional Systems and Heat Pumps |
| Used With | Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK™ accessories |
| Includes | VisionPRO® 8000 thermostat |
| Dimensions | 4 5/8 in. High, 4 15/16 in. Wide, 1 1/8 in. Deep |
| Hazmat Information | LI metal Button Cell contained in Equipment *No Label is required* |
| Stages | Up to 1 Heat / 1 Cool Heat Pump or Up to 1 Heat / 1 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module |
| Switch Positions (System) | HEAT-OFF-COOL-AUTO |
| Switch Positions (Fan) | AUTO-ON-CIRC-FOLLOW SCHEDULE |
| Power Method | Battery or Hardwired |
| Color | Arctic White |
| Programmability | 7 Day Program or Non-Programmable |
| Terminal Designations | R, RC, C, W-O/B, Y, G, K, S1 S1 |
| Display Size | 10 sq in. |
| Changeover | Auto or Manual |
| Setting Temperature Range (F) | Heat: 40 F to 90 F; Cool 50 F to 99F |
Description

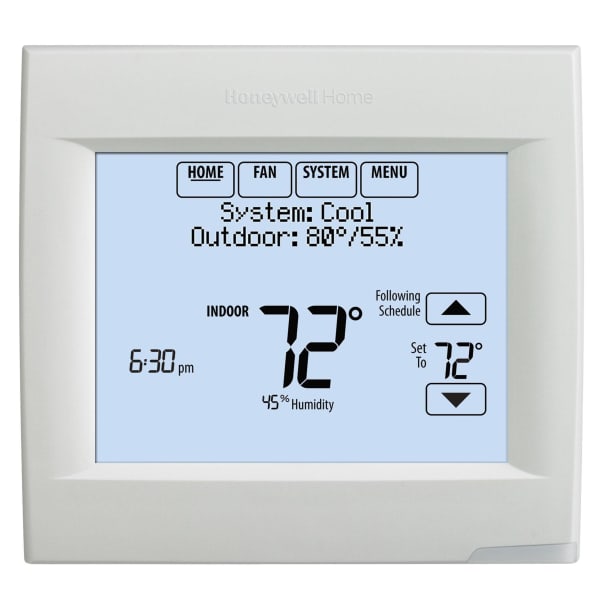

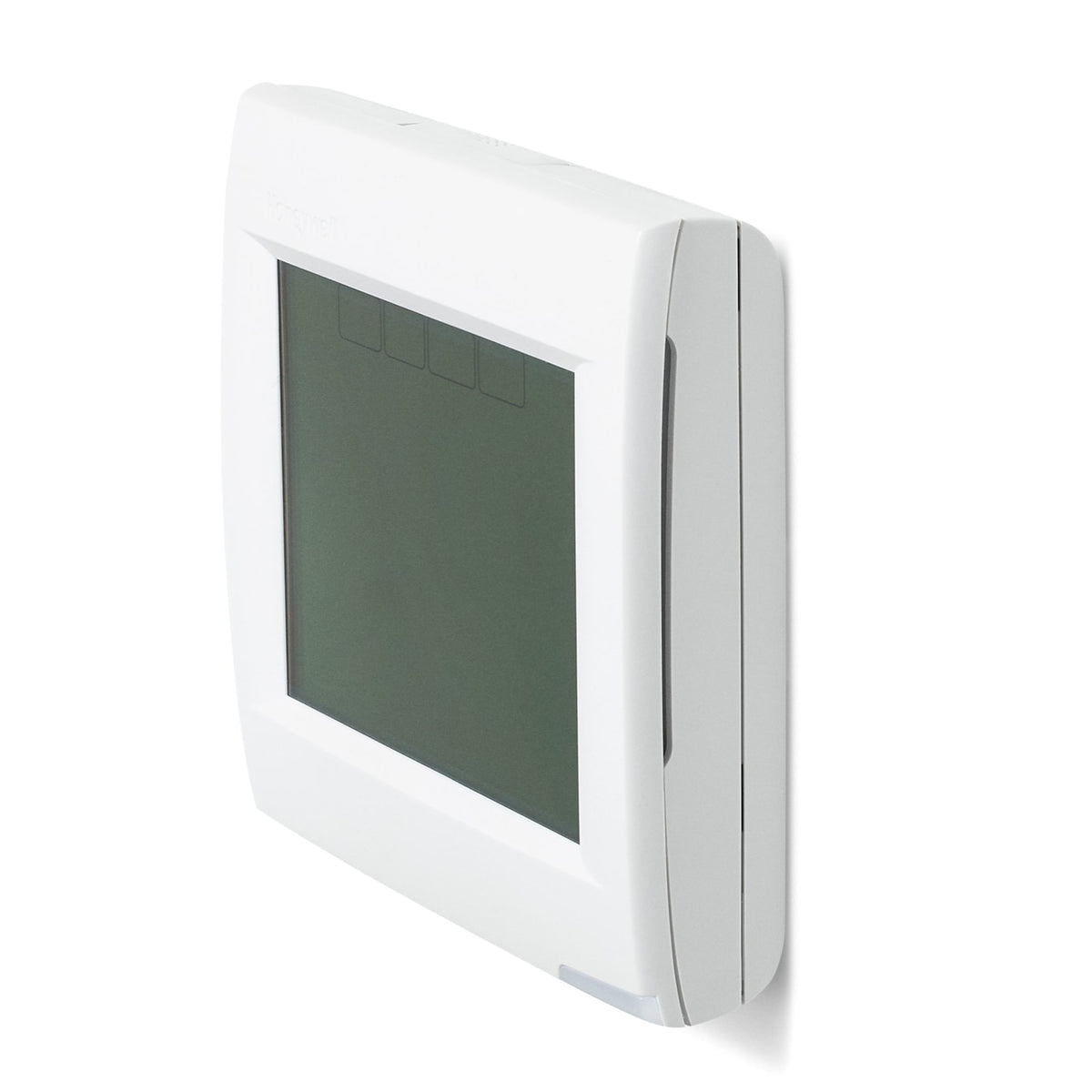

The TH8110R1008 is a VisionPRO 8000 thermostat from Resideo (Honeywell Home), Up to 1 Heat / 1 Cool Heat Pump or Up to 1 Heat / 1 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module.
A thermostat earns its price on the equipment it can drive properly, not on the screen. Multi-stage heating, a heat pump with auxiliary, humidification and ventilation are all decisions the thermostat makes or fails to make; a stat that can only switch one stage runs two-stage equipment as though it were single-stage and throws away the efficiency that was paid for.
This one drives Up to 1 Heat / 1 Cool Heat Pump or Up to 1 Heat / 1 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module. Check that against the equipment before ordering — it is the specification that decides whether the install works, and the one most often skipped in favor of the feature list.
RedLINK is what lets it work with wireless sensors, outdoor sensors and equipment modules without pulling wire for each one. On a retrofit that is the difference between a thermostat swap and opening walls.
Used with: Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK™ accessories.
Goes with: THP9045A1023.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH8110R1008/U
- Type: VisionPRO 8000 thermostat
- Stages: Up to 1 Heat / 1 Cool Heat Pump or Up to 1 Heat / 1 Cool Conventional when used standalone; Up to 4 Heat / 2 Cool Heat Pump or Up to 3 Heat / 2 Cool Conventional when used with the Equipment Interface Module
- Supply voltage: 18 to 30 Vac or 750 mV
- System switch: HEAT-OFF-COOL-AUTO
- Application: 1 Heat/1 Cool Conventional Systems and Heat Pumps
- Used with: Works standalone or with optional THM5421R1021 Equipment Interface Module and RedLINK™ accessories
- Dimensions: 4 5/8 in High, 4 15/16 in Wide, 1 1/8 in Deep
- UPC: 085267444316
- Category: Thermostats
