| Supply Voltage | 24 Vac |
| Frequency | 60 Hz |
| Electrical Connections | Plenum-rated cable |
| Close-off Pressure | 60 psid |
| Fluid Temperature | 203 F |
| Ambient Temperature | 32 F to 150 F |
| Operating Humidity | 5 to 95% RH, non-condensing |
| Mounting | Direct Coupled |
| Application | HVAC |
| Used With | VC Series Valves, 1000 Series 2-way and 6000 Series 3-way |
| Includes | 3/8 in. flex conduit adapter |
| Dimensions | 2.8 in. high x 3.7 in. wide x 2.7 in. deep |
| UL | Listed 94-5V |
| CSA | CSA Certified: LR1322-367 |
| Weight (lb) | 0.84 lb |
| Weight (kg) | 0.38 kg |
| Materials | Plastic housing |
| Power Consumption | Driving-- 6 VA |
| Shipping and Storage Temperature Range (F) | -40 F to +150 F |
| Approvals, CE | 89/336/ECC, 73/23/EEC |
| Switch Ratings | 2.2A (5 to 110 Vac)/1.0A (110 to 277 Vac) Inductive; Min. DC switching capability: 5 mA @ 24 Vac. |
| Environmental, Electrical or Ingress Protection Rating | Double Insulated, IP40 |
| Internal Auxiliary Switch | 1 |
| Actuator Type | Valve |
| Control Signal | Two position; SPDT |
| Fail Safe Mode | Stays in place |
| Switches | SPDT |
| Stroke (in.) | 0.4 in. |
| Cable | Molded strain relief, conduit clamp |
| Timing, Nominal | Driving @ 60 Hz-- 6 sec |
| Shaft Adapter Type | Self-alignment |
| Manual operation | Lever |
Description

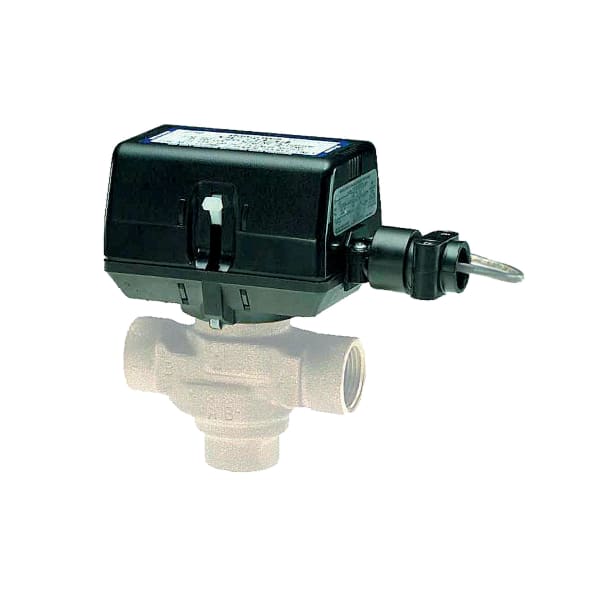

The VC2714ZZ11 is a two-position actuator for Resideo (Honeywell Home) VC series valve bodies. It mounts on the valve assembly and drives the cartridge open and closed on a signal from the zone control.
Two-position control is the standard arrangement for residential zoning: the actuator drives fully open on a call for heat and returns fully closed when the call ends.
What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the actuator.
VC valve bodies and cartridges this actuator works with
- Resideo VCZAA1100/E 2-way 1/2 in Sweat VC Valve Assembly 3.5 Cv and linear flow
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL1100/E
- Resideo 2-way 3/4 in fNPT VC Valve Assy 4.7 Cv and linear flow VCZAL3100/U
- Resideo VCZAR1100/U 2-way 1 in fNPT VC Valve Assy 6.6 Cv and linear flow
- Resideo VCZBB1100/U 2-way 1/2 in fNPT VC Valve Assembly 3.5 Cv and linear flow
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VC2714ZZ11/U
- Series: VC
- Control type: Two-position
- Category: Zone Valve Actuators
