| Pipe Size | 1/2 in. |
| Connection Type | Sweat |
| Body Pattern | Two-way, Straight-through |
| Valve Type | Cartridge Cage Valve |
| Valve Action | Stem up to close A port |
| Actuation | Must be purchased separately |
| Capacity (Cv) | 3.5 Cv |
| Flow Characteristic | Linear |
| Timing | When used with VC series Actuator--On/Off models with 6 seconds |
| Close-off Pressure | 60 psi |
| Fluid Temperature | 34 F to 203 F |
| Ambient Temperature | 32 F to 150 F |
| Controlled Fluid | Chilled or hot water with up to 60% Glycol |
| Materials (Body) | Bronze |
| Materials (Stem) | Stainless Steel |
| Materials (Seat) | EPDM O-ring seals on Noryl piston |
| Materials (Packing) | EPDM rubber |
| Used With | VC actuators, On-Off Type |
| Includes | Cartridge installation wrench |
| CSA | CSA Certified |
| Maximum Safe Operating Pressure (psi) | 300 psi |
| Materials (Cartridge) | Ryton™, Noryl™ engineering plastic |
| Stem Travel (in.) | 0.4 in. |
Description

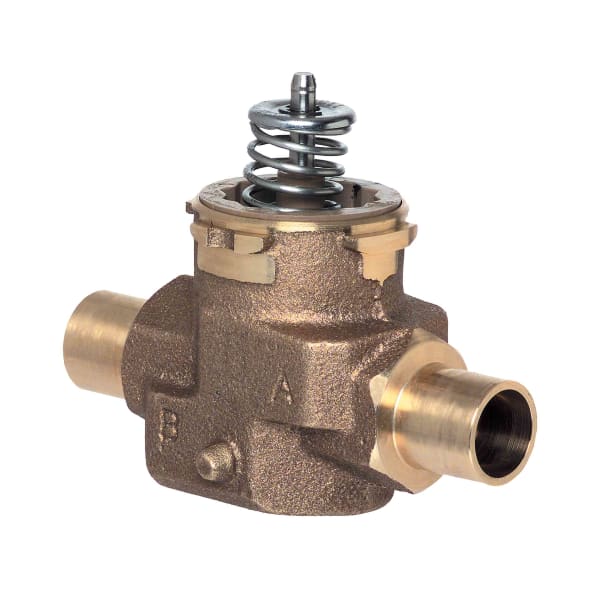

The VCZAA1100 is a VC series two-way valve assembly from Resideo, the brand that carries the Honeywell Home line of residential heating controls, built for hydronic zoning and fan coil control. It is a 1/2-inch sweat body with a 3.5 Cv rating and a linear flow characteristic.
A linear characteristic means flow tracks stem position in a straight line, which keeps a modulating loop stable instead of dumping most of its capacity in the first part of the stroke.
What a complete VC zone valve takes: a valve body, a cartridge, and an actuator, ordered separately. This listing is the valve assembly — pick the actuator that matches your control signal, whether that is two-position, floating, or modulating.
Building the valve from separate parts is what makes the VC platform worth specifying: the same body stays in the pipe while the actuator is matched to the control system, and a worn seat is handled by pulling the cartridge rather than cutting the body out.
Actuators and cartridges for this valve body
- Resideo 2-position Low Volt Actuator for VC Series valve VC2114ZZ11/U
- Resideo 2-position Low Volt Actuator for VC Series valve VC2714ZZ11/U
- Resideo VC4011ZZ11/U VC Actuator, 2-position, SPST, 100 -130 Vac
- Resideo VC6930ZZ32/U VC Floating Actuator, SP3T (tri-state) Floating, 24 Vac
- Resideo VC7934ZZ11/U VC Modulating Actuator, (0)2-10 Vdc, 24 Vac
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VCZAA1100/E
- Series: VC
- Configuration: 2-way
- Connection size: 1/2 in
- Connection type: Sweat
- Cv: 3.5
- Flow characteristic: Linear
- Category: Zone Valves
