| Current Draw | 0.6 A |
| Electrical Ratings | 24 Vac |
| Application | Ventilation Control |
| Used With | EARD6,VNT5150,VNT5200,VNT5070 |
| Airflow Capacity (cfm) | 50 to 160 cfm |
Description

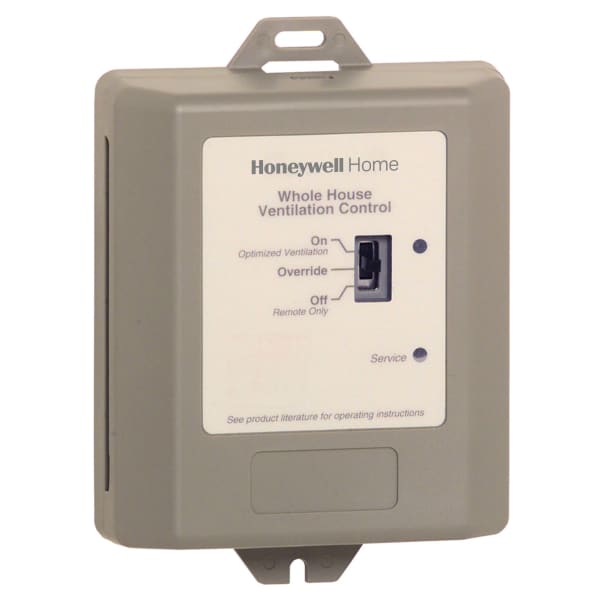

The W8150A1001 is a fresh air ventilation control from Resideo (Honeywell Home), 24 V, 160 cfm.
A tight house needs ventilation on purpose. This control decides when outside air comes in — by how much the house has already ventilated, by outdoor temperature, and by how long the equipment has run — and opens the fresh air damper only then. Left to itself an intake damper either sits shut or pulls cold air in all winter; the control is what makes it a ventilation strategy rather than a hole.
This is the control on its own. It also needs a motorized fresh air damper on the intake.
Used with: EARD6,VNT5150,VNT5200,VNT5070.
Goes with: EARD6TZ.
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: W8150A1001/U
- Type: Fresh air ventilation control
- Voltage: 24 Vac
- Current draw: 0.6 A
- Airflow capacity: 160 cfm
- Used with: EARD6,VNT5150,VNT5200,VNT5070
- UPC: 085267256155
- Category: Ventilation Controls
