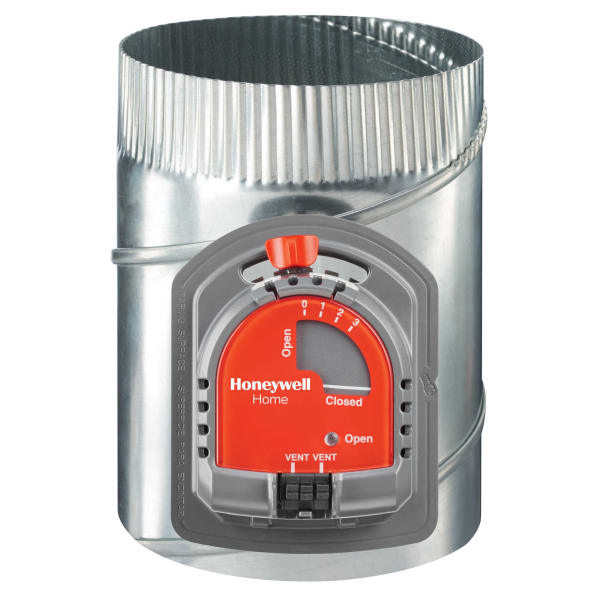

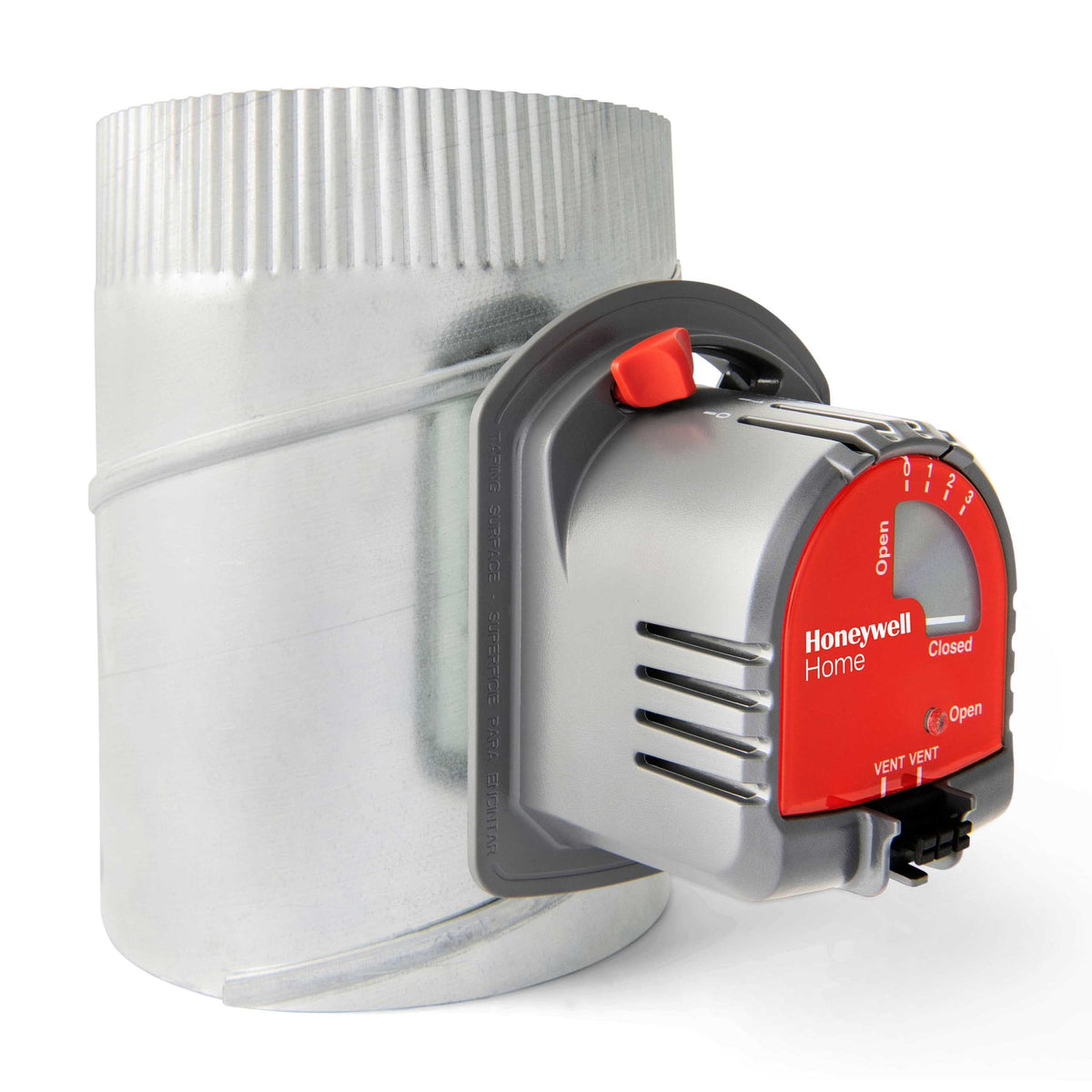

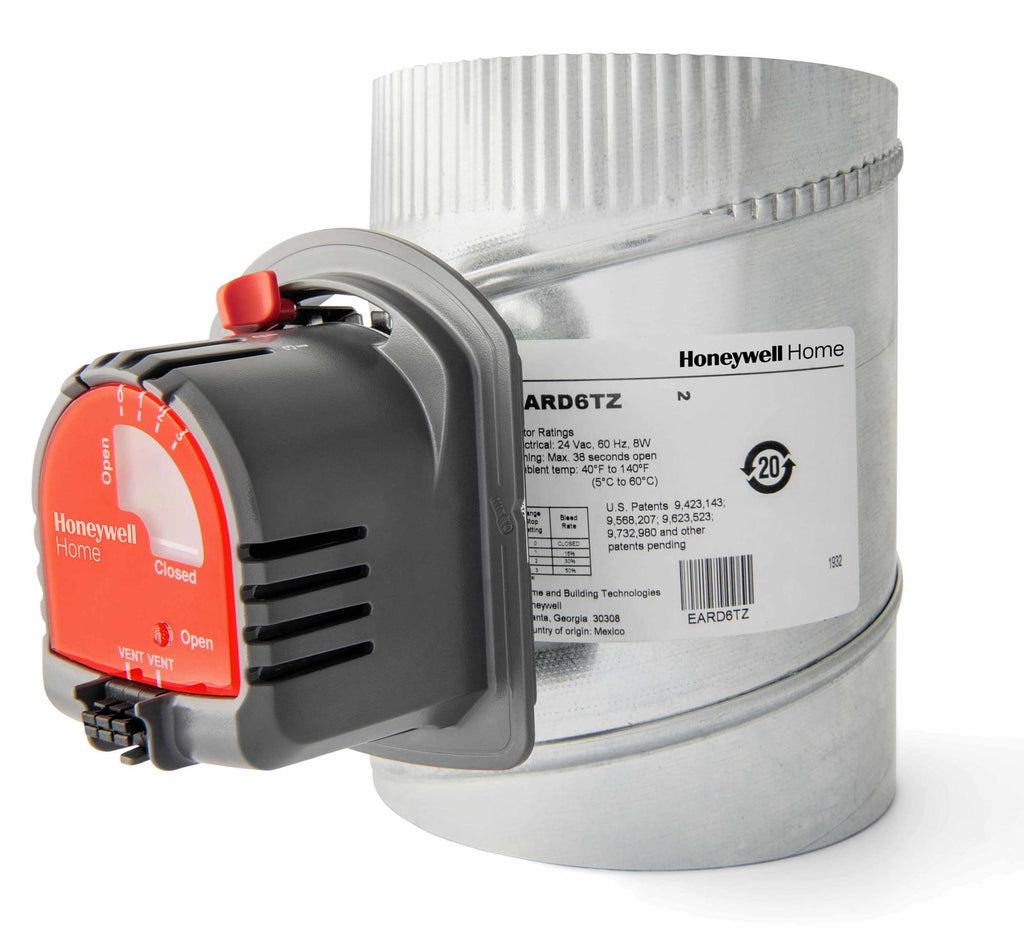

Honeywell Home EARD6TZ/U 6 in Round Fresh Air Damper

Name: Honeywell Home EARD6TZ/U 6 in Round Fresh Air Damper
Brand: Honeywell Home
SKU: HONE-EARD6TZ/U
Price: 169.96 USD
Availability: InStock

Honeywell HomeSKU: HONE-EARD6TZ/U

Planning a zoning system? Our free Zone Planner picks the panel, dampers or zone valves and thermostats for every floor, with one-click cart.

Price:

$169.96

Stock:

Only 8 units left

Quantity:

Usually ships in 1–2 business days.

Questions? Call (404) 678-9908 or chat with us.

Need 10+ or a project quote? Request a quote · Pros: open a trade account

Ships from Seattle, WA · 30-day returns · Manufacturer warranty

Shipping details

Shipping weight: 3.4 lb
Box size: 9.7 × 9.4 × 9 in

Size	6 in. diameter
Voltage	24V
Shape	Round
Application	Zone Damper
Used With	Honeywell Ventilation Systems
Damper Type	Single-blade, round
Motor or Actuator Mounting	Side or Top
Motor	Power open, spring closed
Motor Timing	30 seconds power open/10 seconds spring return
Wires to Motor	Terminals: M1-Power; M6 Common
Other Motor Information	Simplified range stops

The EARD6TZ is a motorized fresh air damper from Honeywell Home, 6 in round, 24 V.

This is the damper on the outdoor air intake. A house tight enough to hold its heat is also tight enough to hold everything else, so controlled ventilation brings in measured outside air instead of leaving it to whatever leaks. The damper is what makes it measured: it opens when the ventilation control calls and shuts the rest of the time, so the house is not pulling cold air in all winter.

It is driven by a ventilation control rather than by a thermostat. Without that control the damper has nothing telling it when the house has had enough outside air.

Used with: Honeywell Ventilation Systems.

Brand: Honeywell Home
Manufacturer Part #: EARD6TZ/U
Type: Motorized fresh air damper
Size: 6 in diameter
Shape: Round
Voltage: 24 V
Actuator mounting: Side or Top
Motor: Power open, spring closed
Used with: Honeywell Ventilation Systems
UPC: 085267690423
Category: Zone Dampers

Full Specifications

Damper Duct Shape Type	Round
Damper Type	Zone
Application	Zone Damper
Damper Material	Galvanized Steel
Warranty	5 Years
Color	Metallic
Activation	Electric
Actuator Housing Material	Molded Plastic
Actuator Power Consumption	8 VA
Actuator Torque	71 in-oz
Blade Material	Galvanized Steel
Leakage	Less than 1% at 0.5 in WC
Position Indicator Included	Yes
Position Indicator Type	Damper Position Range Stops, LED indication light for open and close
Range Stop	Yes
Range Stop Options	4
Actuator Frequency	60 HZ
Airflow (Max)	160 CFM
Airflow (Min)	50 CFM
