Description

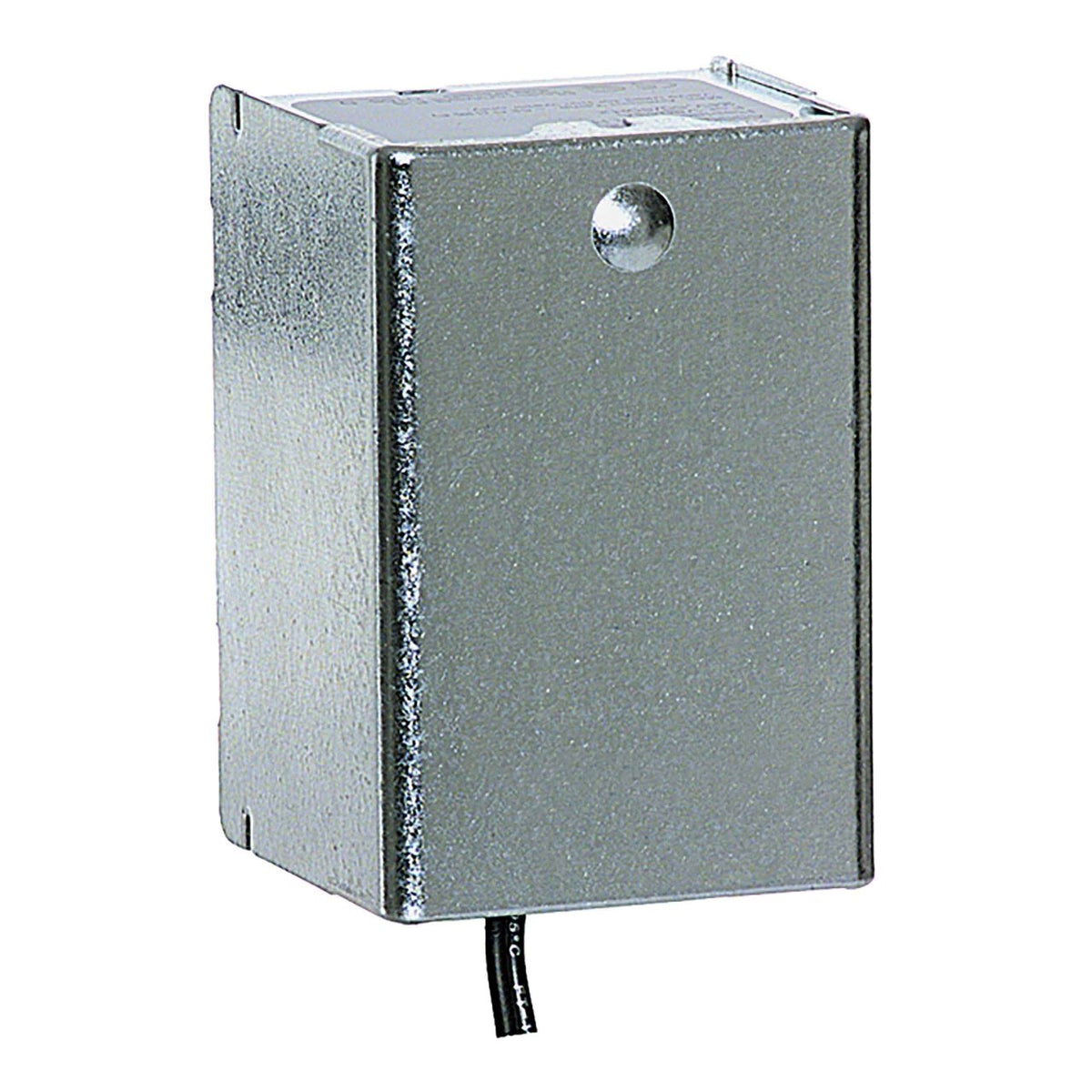

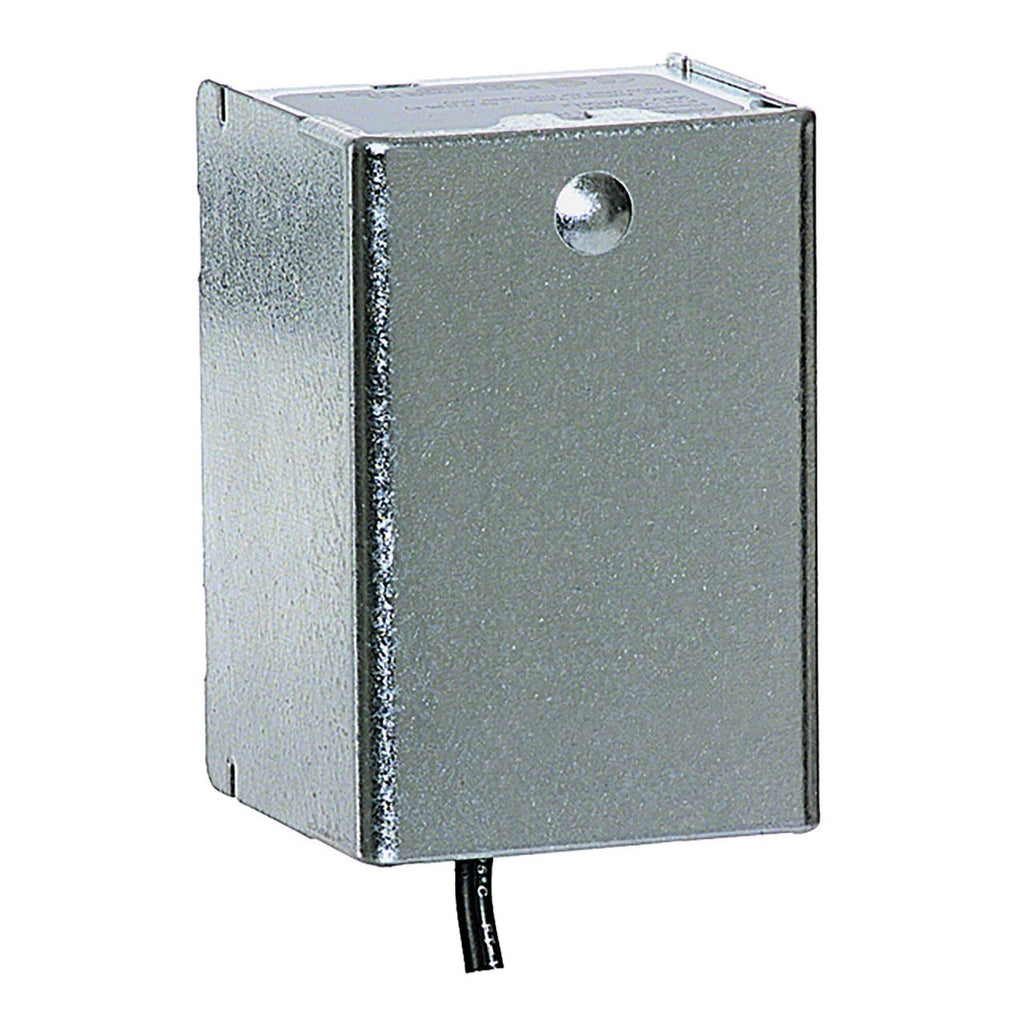

Powerhead assembly for V8044E zone valves; 3-way, SPST end switch, 18 in leads on the manual opener end with Heyco strain relief, 24 V/60 Hz.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: 40003916-025/U
- Application: Replacement Powerhead for V8044E Zone Valve
- For Use With: V8044E, Diverting Valves, Valves with Action of Spring Return to close ""A"" port
- Compatible With: V Series Zone Valves for hydronic heating
- Warranty: 5 years
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Supply Voltage: 24 V AC
- Power Supply Frequency: 50 Hz, 60 Hz
- Current Draw: 0.32A
- Fire and Smoke Rated: No
- Connection Length: 18 in, 457 mm
- Connection Type: Leads on same side of manual lever
- Color: Metallic
- UPC: 085267030779
- Country of Origin: HU
- Category: Zone Valve Replacement Heads
