Description

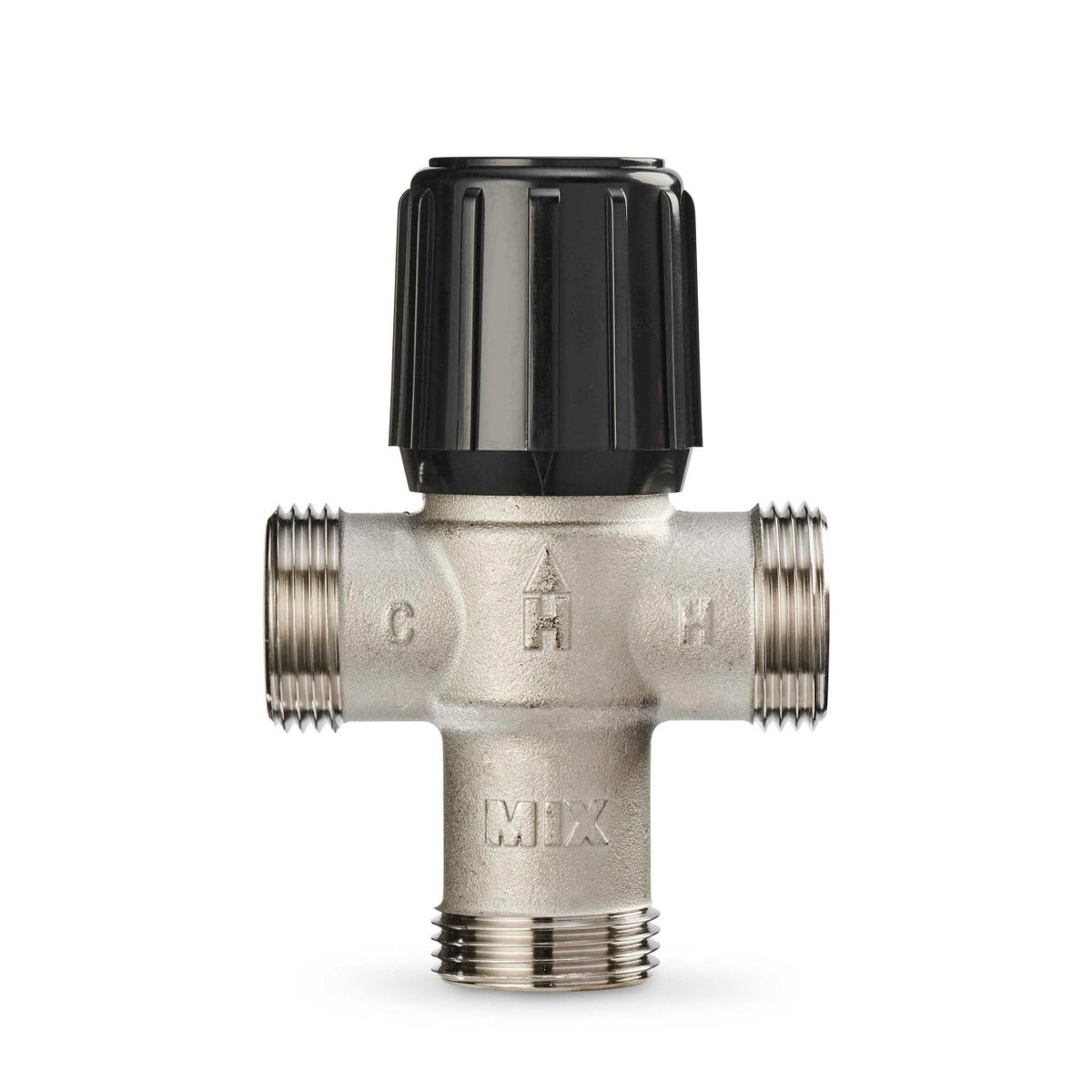

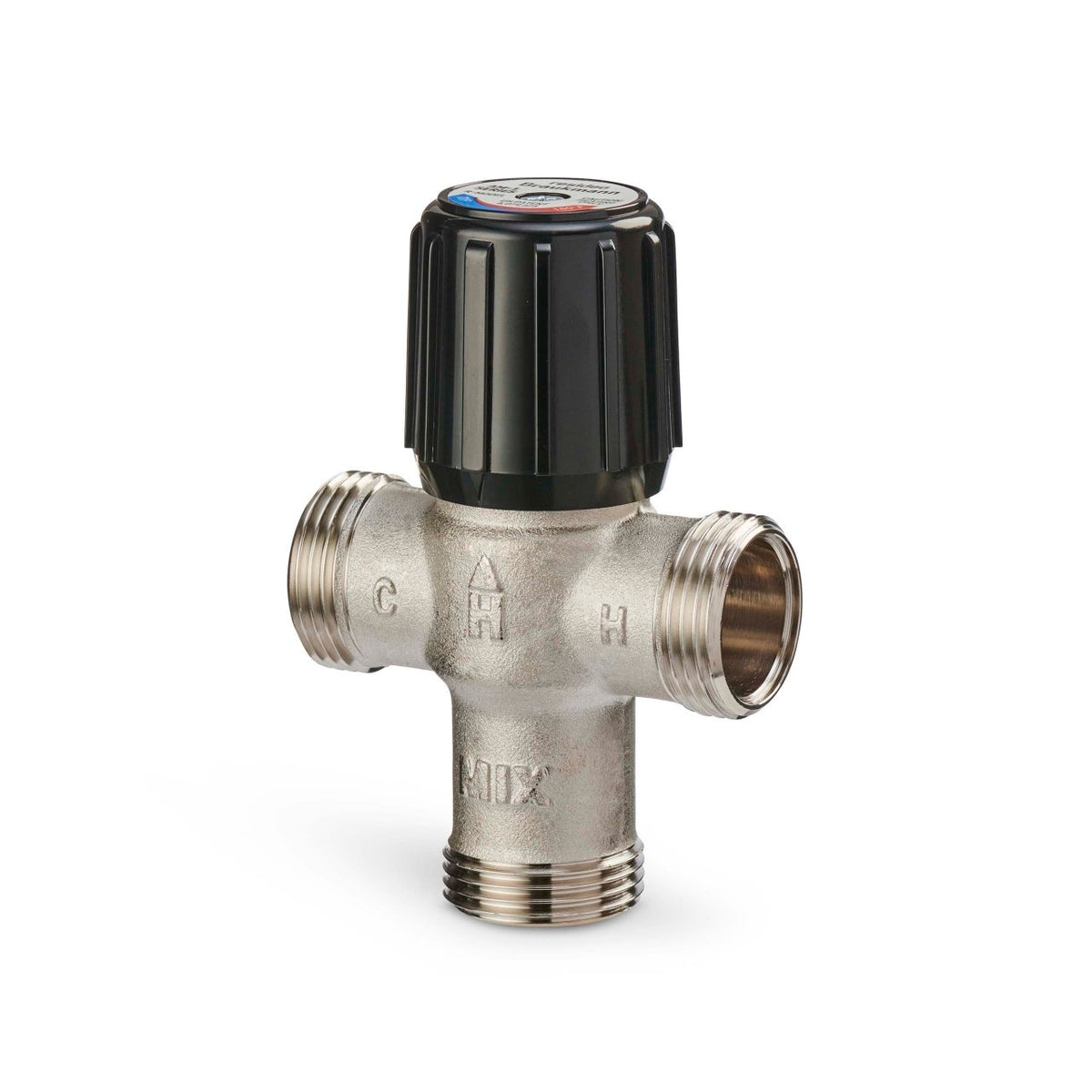

AM-1 mixing valve body only, radiant version, with a 70–180°F range.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AM1-RBODY-1/U
- Controlled Media: Non Potable Water
- Re-Circulation: No
- Approvals and Standards: CSA Certified
- Color: Silver Grey
- Includes: Body only
- Warranty: 1 Year
- Ambient Operating Temperature (Min): 70 °F, 21 °C
- Ambient Operating Temperature (Max): 120 °F, 49 °C
- Cold Inlet Temperature (Min): 39 °F, 4 °C
- Cold Inlet Temperature (Max): 80 °F, 27 °C
- Flow Coefficient: 3.9 Cv
- Flow Rate (Min): 0.5 gpm, 1.9 lpm
- Hot Inlet Temperature (Min): 120 °F, 40 °C
- Hot Inlet Temperature (Max): 212 °F, 100 °C
- Lead Free: No
- Operating Mixing Temperature (Min): 70 °F, 21 °C
- Operating Mixing Temperature (Max): 180 °F, 82 °C
- Operating Pressure (Max): 150 psi, 1034 kPa
- Valve Body Material: Nickel-plated, Teflon-coated
- Valve Packing Material: EPDM O-rings
- Connection Size: Will work with 1/2"", 3/4"" and 1"" fitting
- Connection Type: Male NPT
- Valve Body Pattern: Three-way
- UPC: 194159013353
- Country of Origin: MX
- Category: Mixing Valve Accessories & Parts
