Description

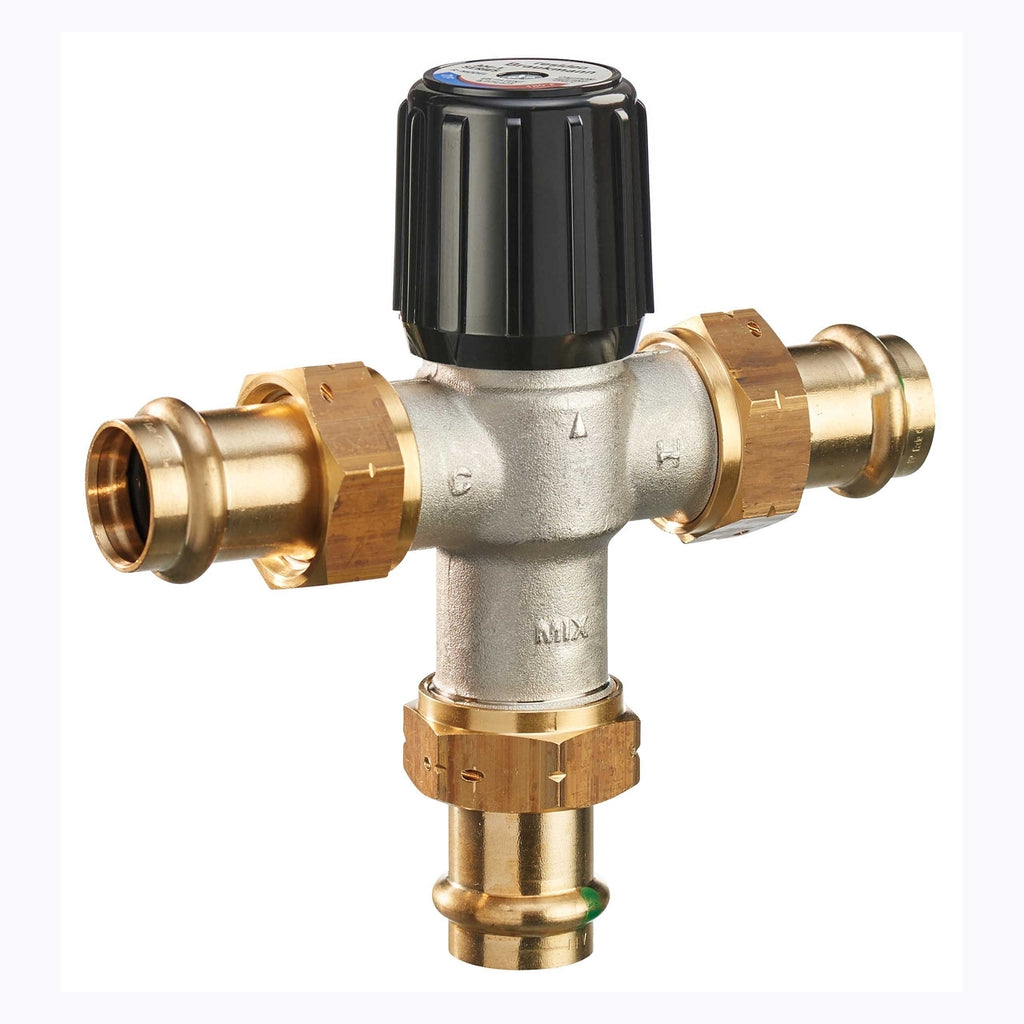

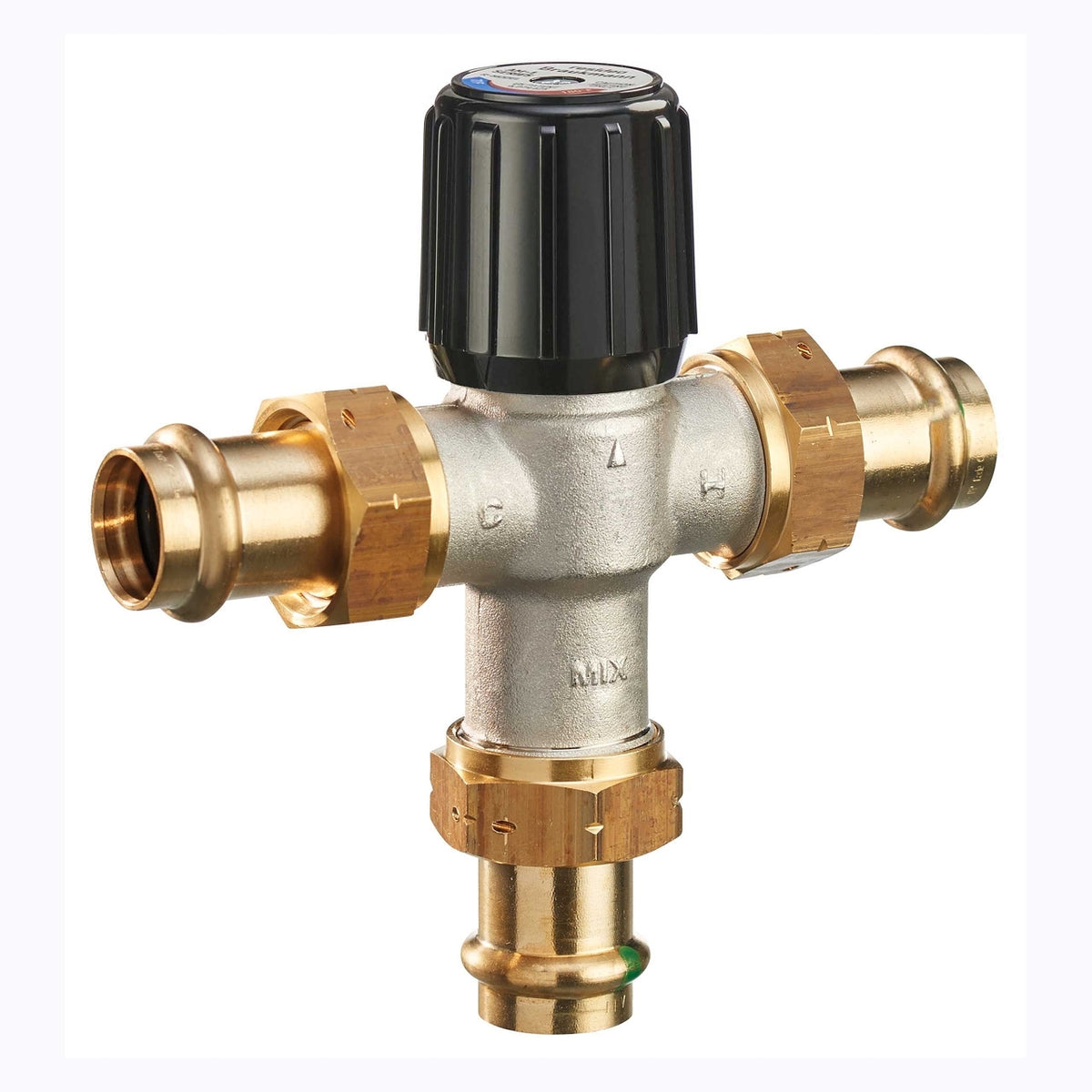

3/4 in low lead thermostatic mixing valve with union and press tailpiece connections and a 70–120°F range.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: AM101C1070-UP-1LF
- Controlled Media: Potable Water, Non Potable Water
- Re-Circulation: No
- Approvals and Standards: ASSE 1017 Certified, ASSE 1070 Certified, CSA Listed, IAPMO Listed
- Color: Metallic
- Includes: Check Valves on Hot and Cold Inlets
- Product Height: 6.2 in, 157 mm
- Product Length: 6.3 in, 160 mm
- Warranty: 1 Year
- Adjustment Means: Handwheel
- Cold Inlet Temperature (Min): 39 °F, 27 °C
- Cold Inlet Temperature (Max): 80 °F, 27 °C
- Flex Connector Included: No
- Flow Coefficient: 1.8 Cv
- Flow Rate (Min): 0.50 gpm, 1.9 lpm
- Hot Inlet Temperature (Min): 120 °F, 49 °C
- Hot Inlet Temperature (Max): 180 °F, 82 °C
- Lead Free: Yes
- Media Temperature (Max): 212 °F, 100 °C
- Number of Check Valves: 2
- Operating Mixing Temperature (Min): 70 °F, 21 °C
- Operating Mixing Temperature (Max): 120 °F, 49 °C
- Operating Pressure (Max): 150 psi, 1034 kPa
- Seal Material: EPDM Rubber
- Valve Body Material: Teflon-coated, Nickel-plated Brass
- Accessories: AM-1-020RP/U, AM101-SB/U, AM1-TAIL101UP-LF, AM1-TG101-US-LF/U
- Connection Size: 3/4 in
- Connection Type: Union ProPress
- Nominal Diameter: DN20
- Number of Connections: 3
- Valve Body Pattern: Straight Through
- UPC: 085267189330
- Country of Origin: MX
- Category: Mixing Valve - Lead Free - 3/4"
