Description

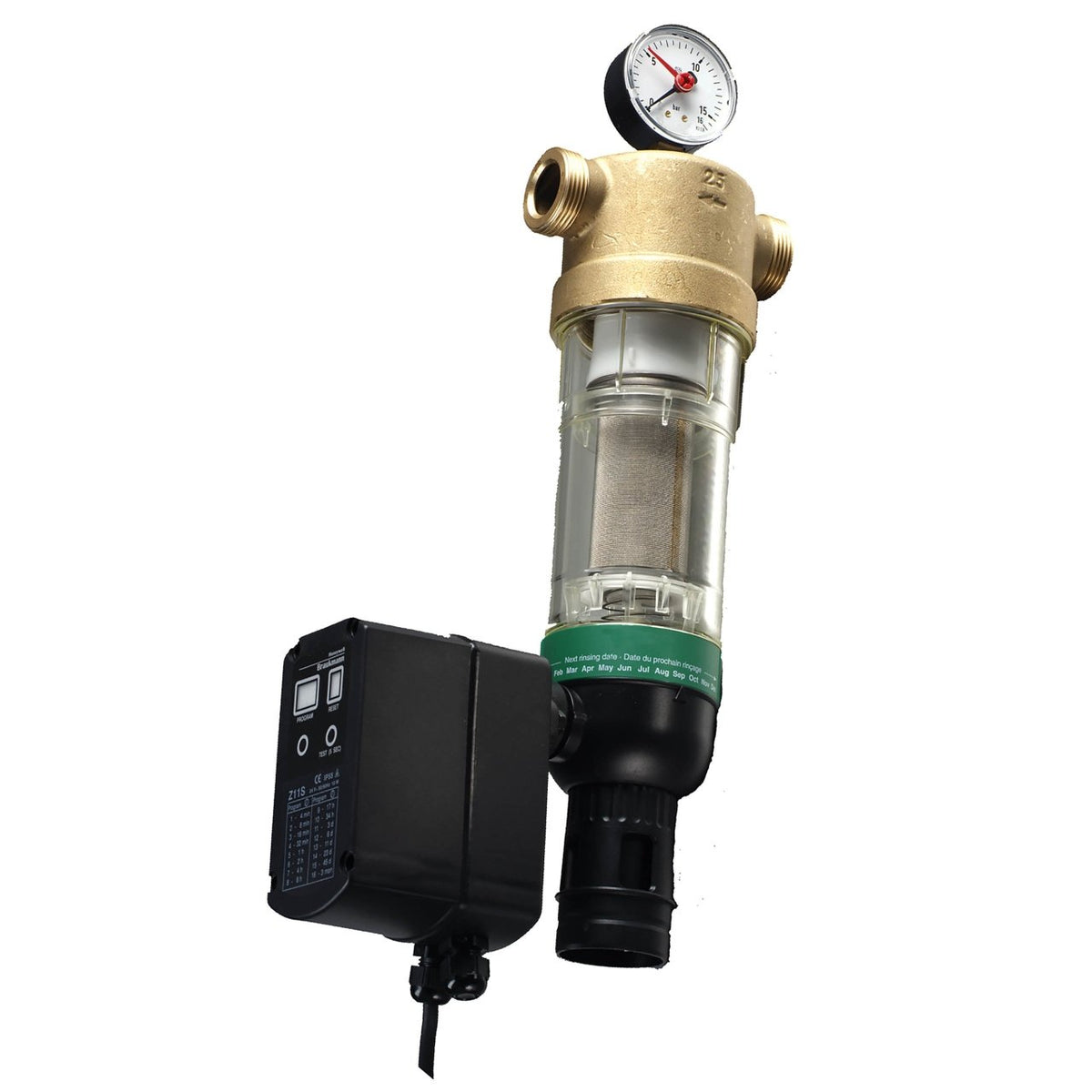

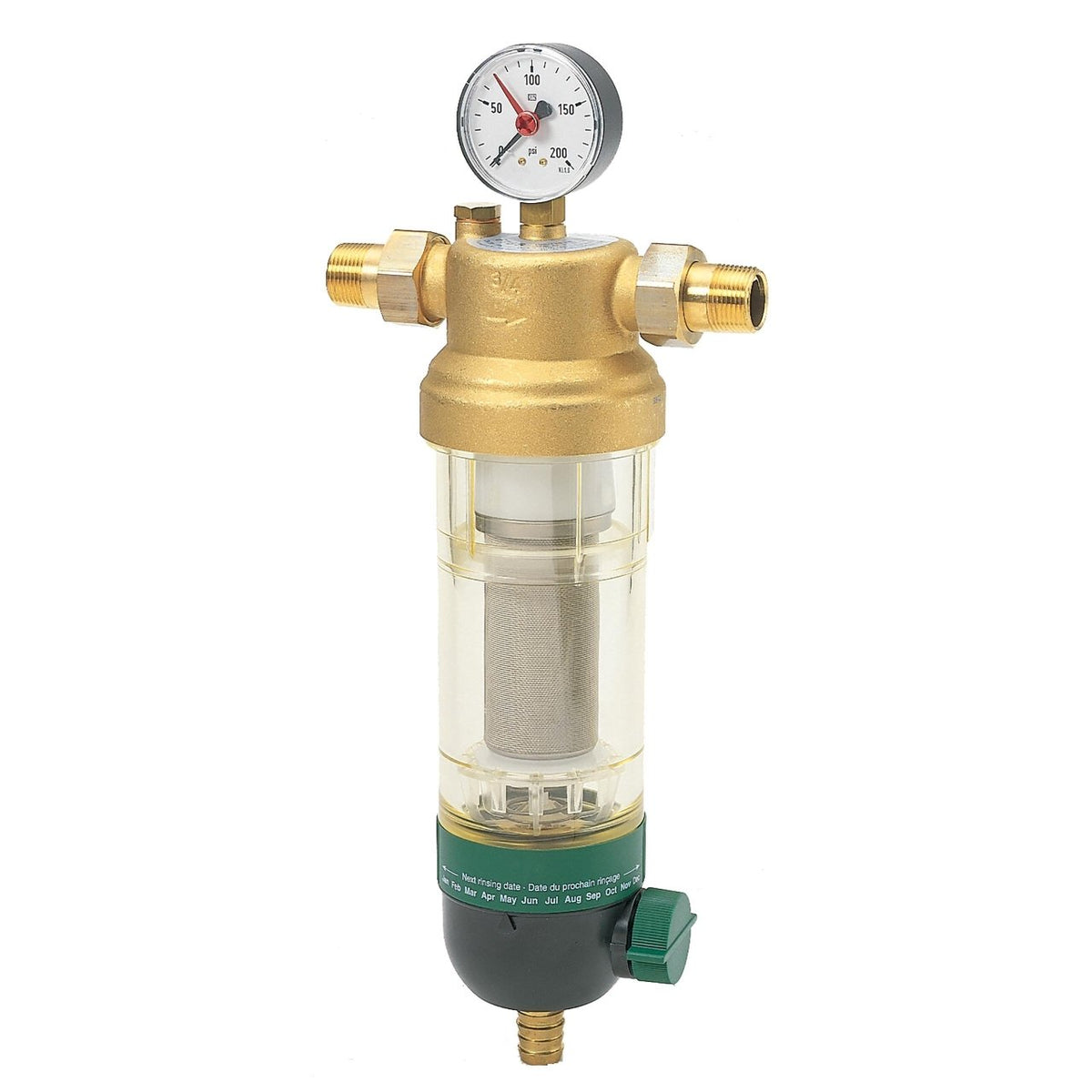

1-1/4 in backwashable water filter with a 100 micron filter, plastic sump and sweat and threaded MNPT unions included.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: F76S1031
- Application: Point of Entry Water Filter
- Pipe Size: 1 1/4 in
- Controlled Media: Drinking Water
- Connection Size: 1 1/4 in
- Connection Type: External Thread
- Filter Mesh Size: 100 microns, Available Kits f20
- For Use With: MV876B1018 Bayonet mounted automatic backwash control
- Includes: Gauge, Service Wrench
- Color: Metallic, Clear
- Filter Type: Reverse Rinsing
- Inlet Pressure (Min): 1.5 bar
- Compatible With: Residential or light Commercial Systems
- Reverse Rinsing with Filtered Water: Yes
- Display: Pressure Gauge
- Strainer Included: Yes
- Mounting Position: horizontal
- Environment Conditions: Clean, Dry, Dust-free
- Ambient Operating Temperature (Max): 104 °F, 40 °C
- Ambient Relative Humidity (Max): 0.85
- Ambient Relative Humidity (Min): 0.25
- Body Material: Brass, Dezincification Resistant
- Sump Material: Engineered Plastic, Bronze sump available
- Filter Mesh Material: Stainless Steel
- Seal Material: NBR
- Product Height: 17.88 in, 454.03 mm
- Product Weight: 3.3 kg, 7.3 lb
- Product Width: 8.75 in, 222.25 mm
- UPC: 085267819060
- Country of Origin: DE
- Category: Water Filters
