Description

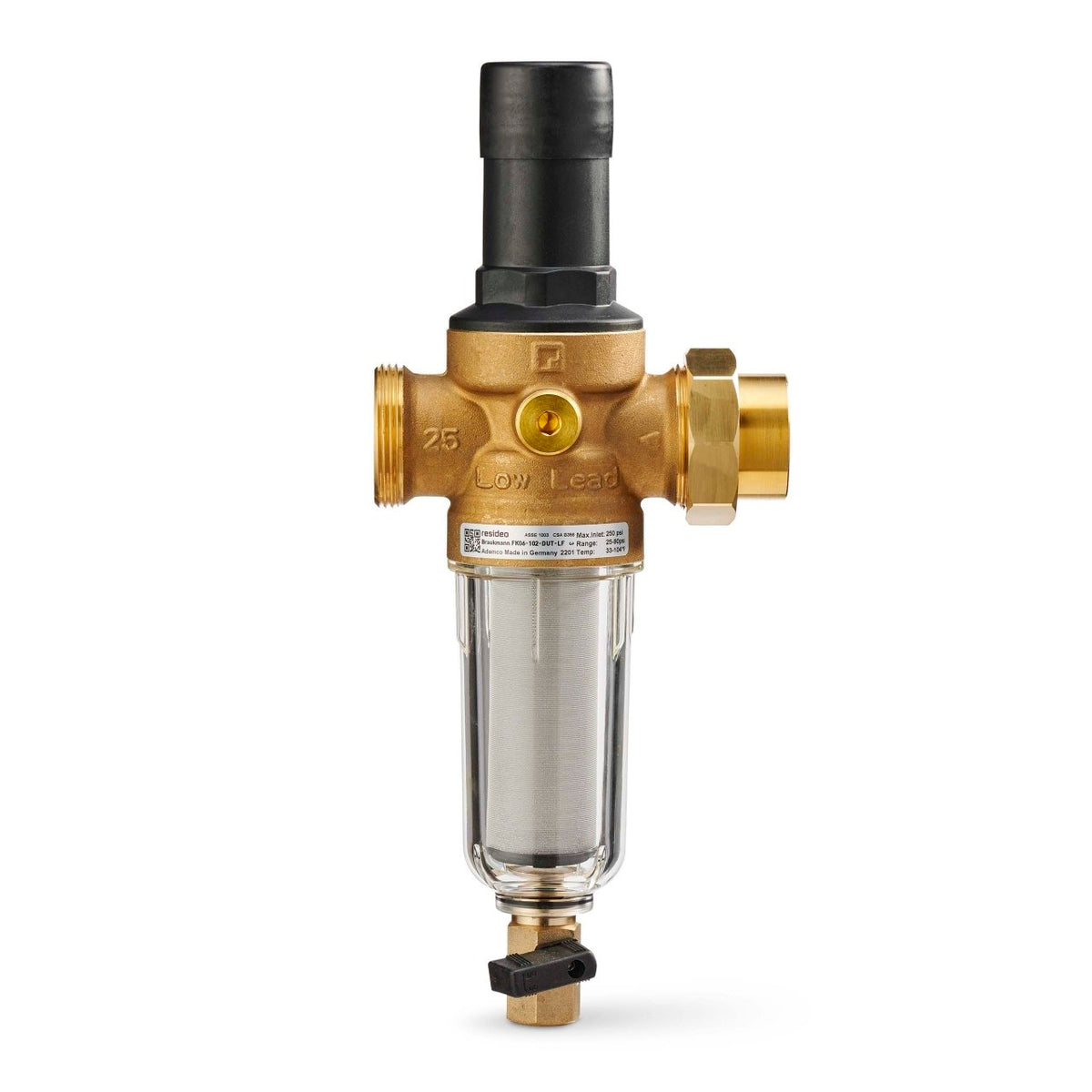

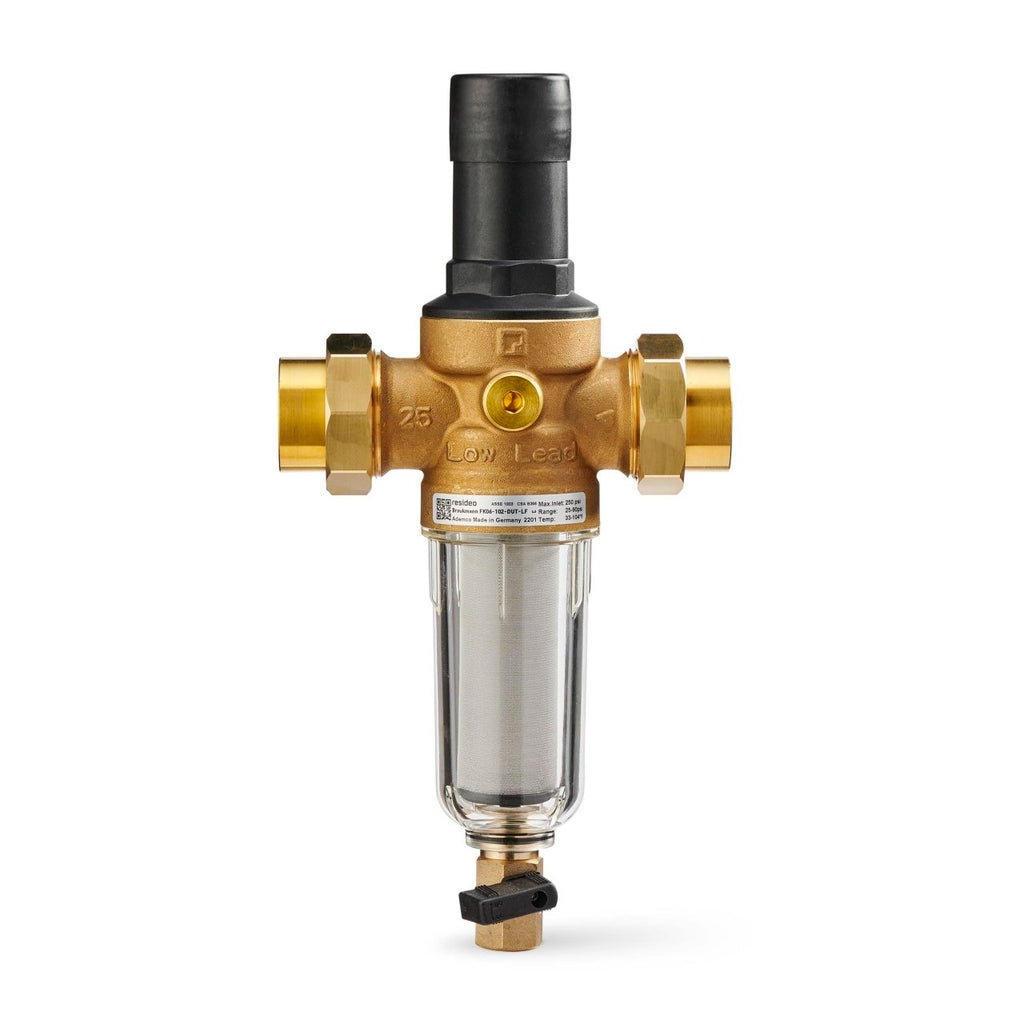

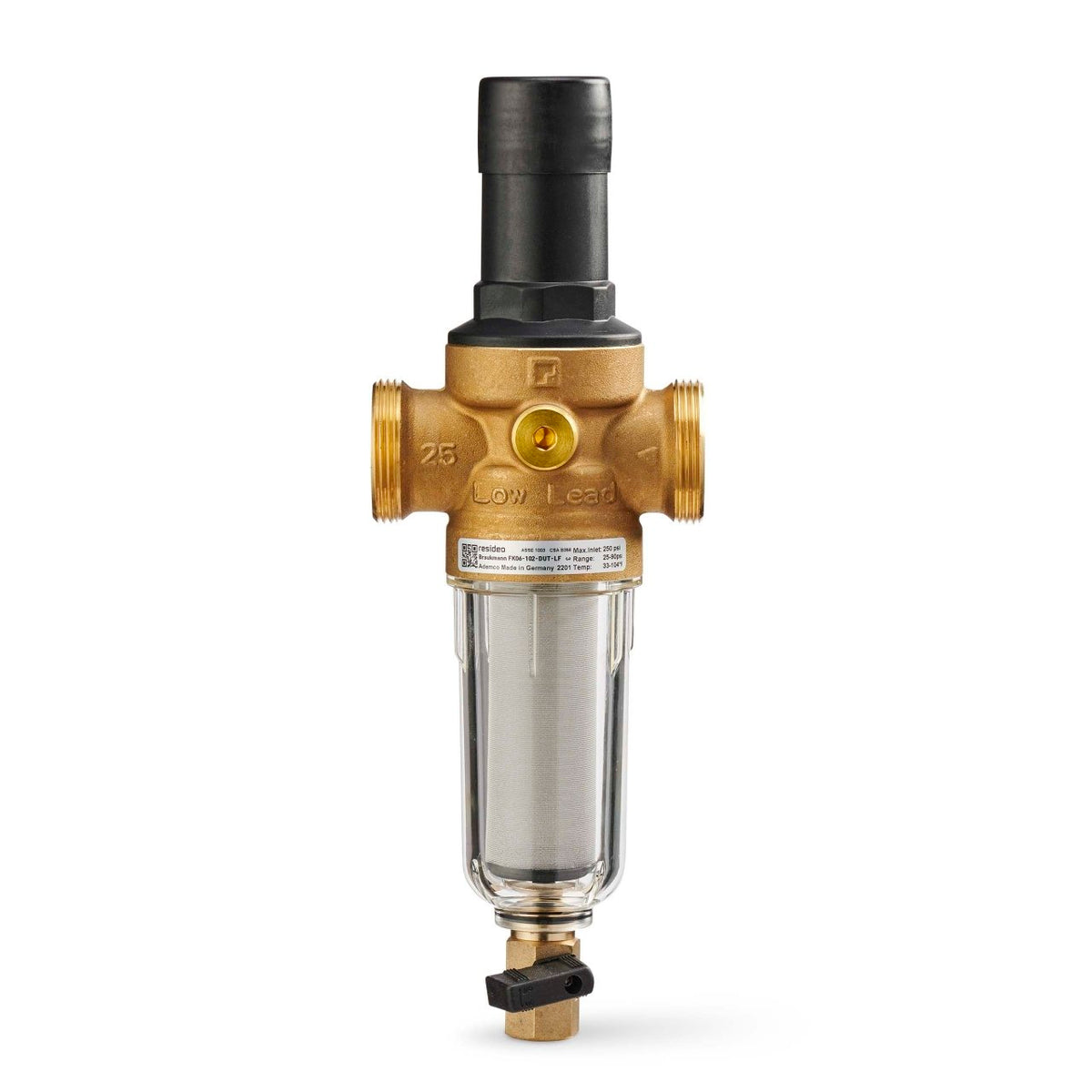

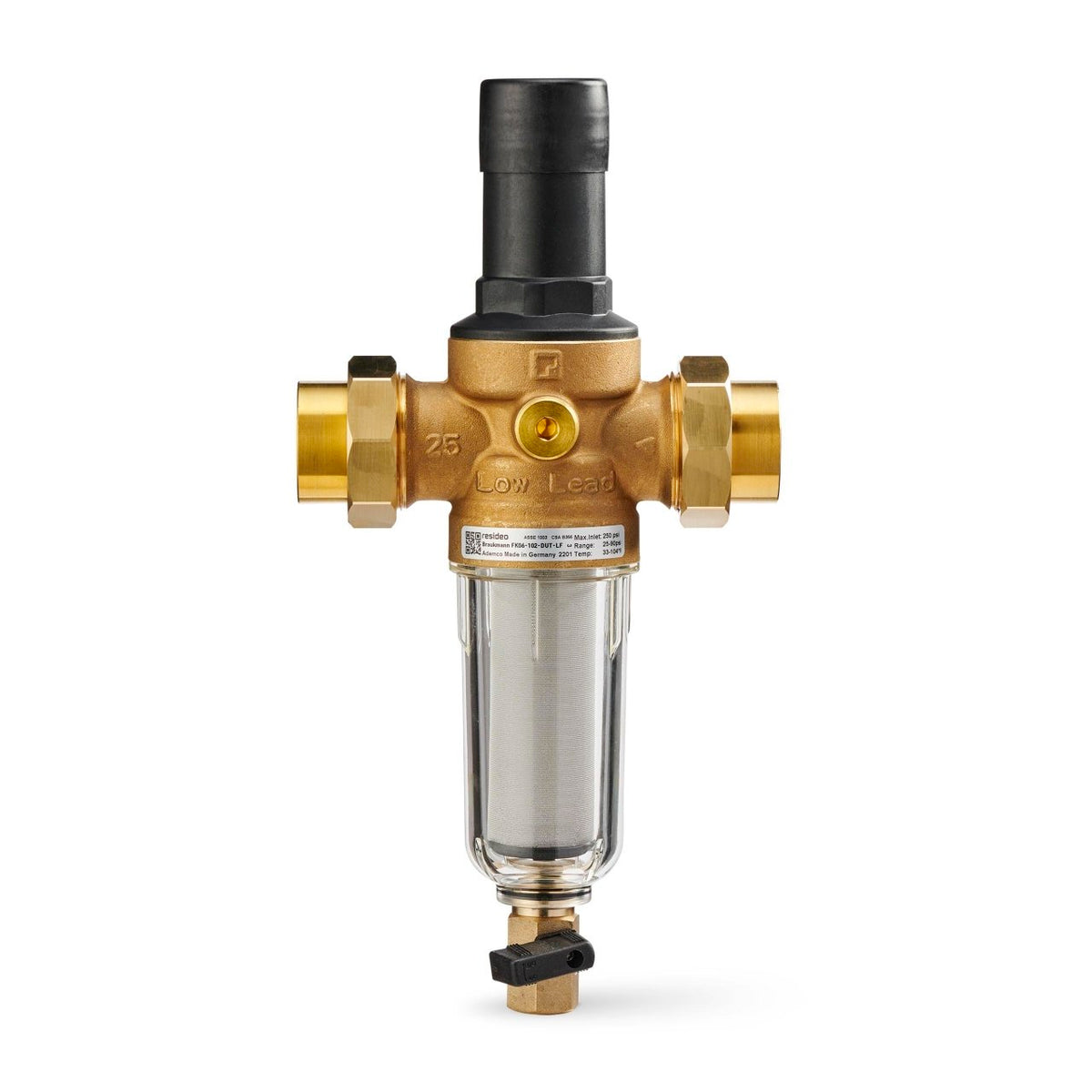

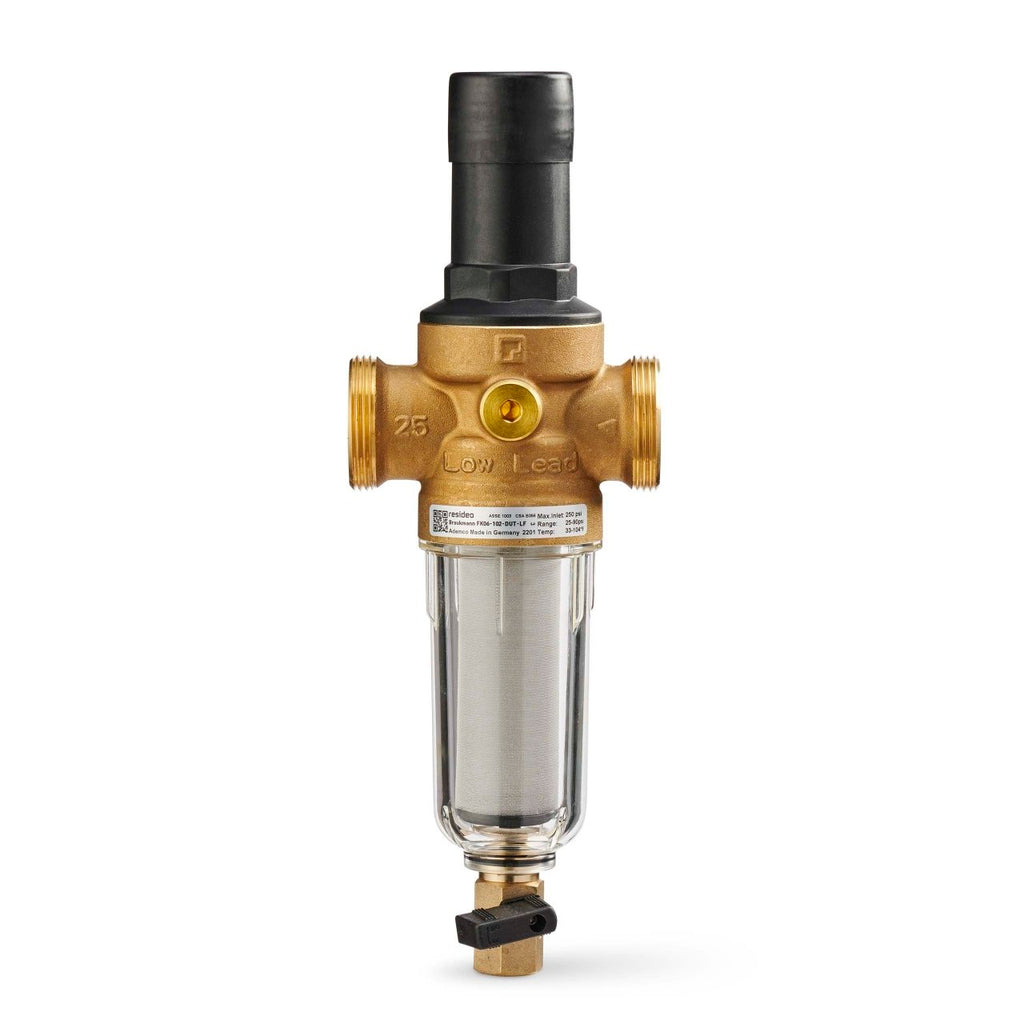

3/4 in FK06 DialSet lead free pressure reducing valve, DUT version.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: FK06-101-DUT-LF
- Accessories: K06U1101, ZR06F
- Ambient Operating Temperature (Min): 33°F, 1 °C
- Ambient Operating Temperature (Max): 140°F, 60 °C
- Approvals and Standards: ASSE 1003 Listed, CSA Certified, NSF/ANSI 61 Compliant, NSF/ANSI 372 Compliant
- Color: Metallic, Clear
- Connection Size: 3/4 in
- Connection Type: Double Union Thread (NPT)
- Differential Pressure (Min): 14.5 psi, 99.97 kPa
- Domestic Hot Water: Valve
- Filter Mesh Size: 50 micron
- Inlet Pressure (Max): 250 psi, 1723.69 kPa
- Lead Free: Yes
- Media Temperature (Min): 33°F, 1 °C
- Media Temperature (Max): 140 °F, 60 °C
- Nominal Diameter: DN20
- Number of Connections: 2
- Outlet Pressure (Min): 25 psi, 172.37 kPa
- Outlet Pressure (Max): 90 psi, 620.53 kPa
- Preset Outlet Pressure: 60 psi, 414 kPa
- Pressure Reducing Ratio: 10:1 Maximum
- Product Height: 9.75 in, 247 mm
- Product Length: 5.2 in, 132 mm
- Product Width: 132.16 mm, 5.2 in
- Replacement Parts: D06FA-1/2, KF06-1/2AZ, AS06-1/2C, 0901246, 0903127
- Valve Body Material: Brass
- Valve Body Pattern: Straight Through
- Warranty: 5 years
- Application: Potable Water Pressure Regulation and Irrigation
- Controlled Media: Drinking Water
- UPC: 085267442473
- Country of Origin: DE
- Category: Water Filters
