Description

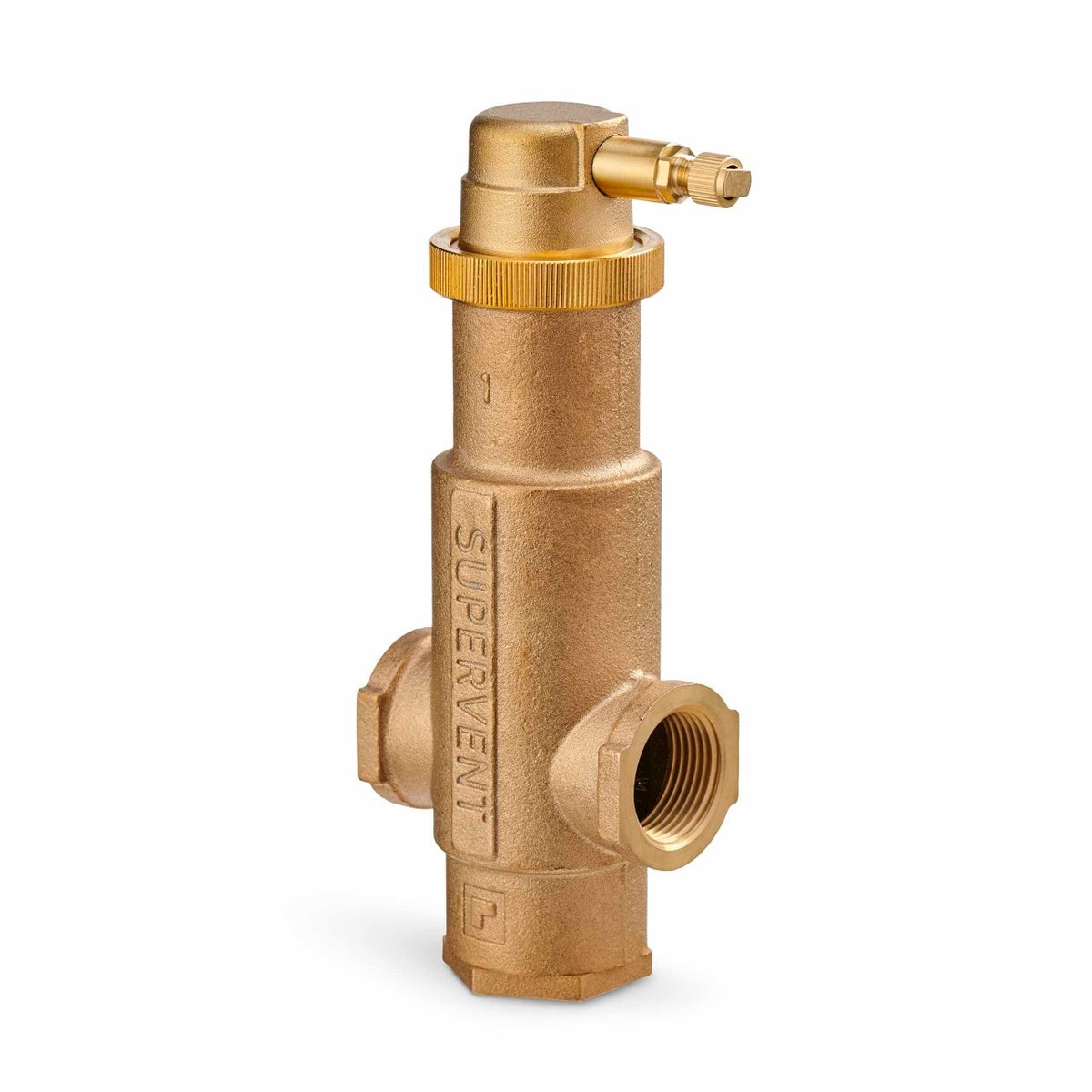

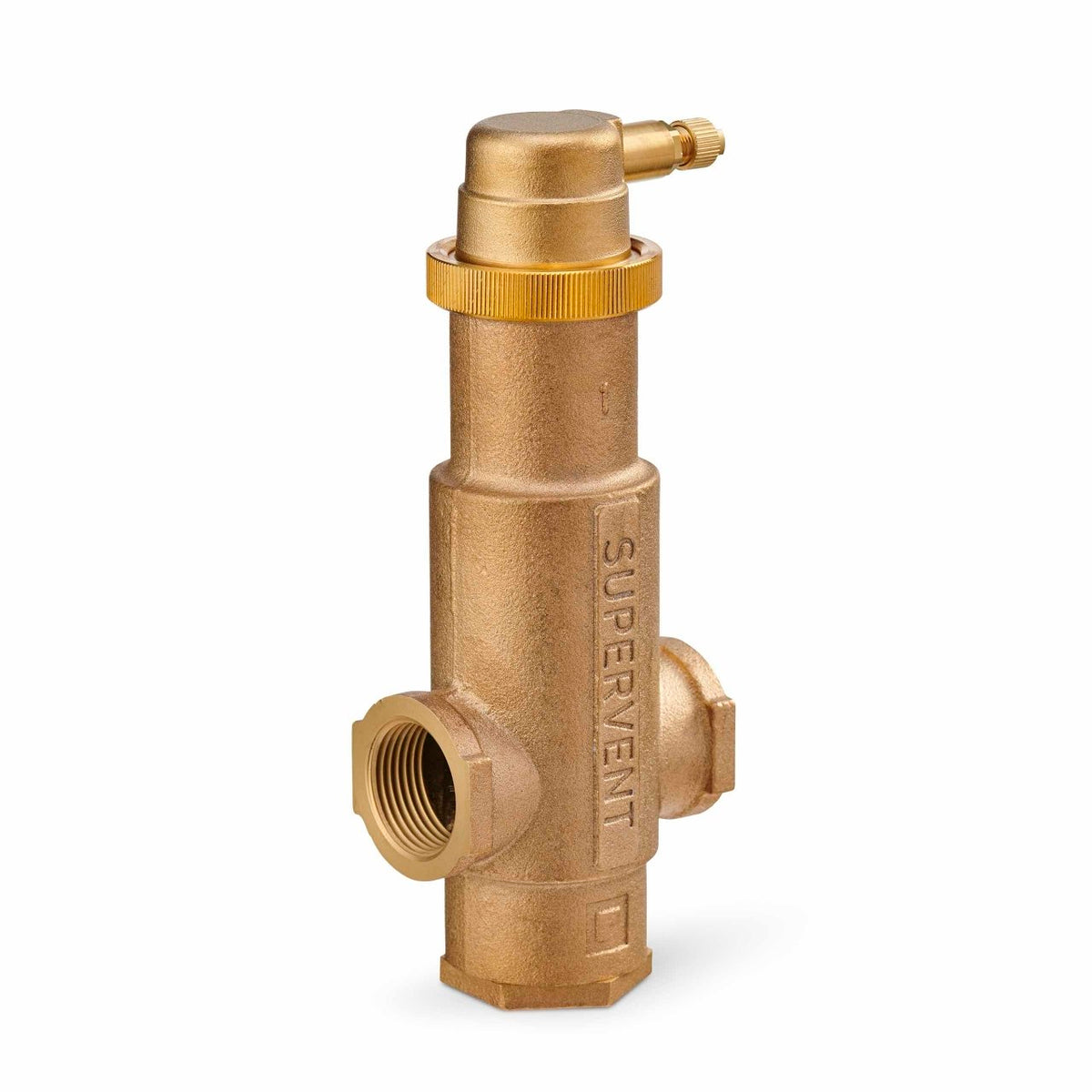

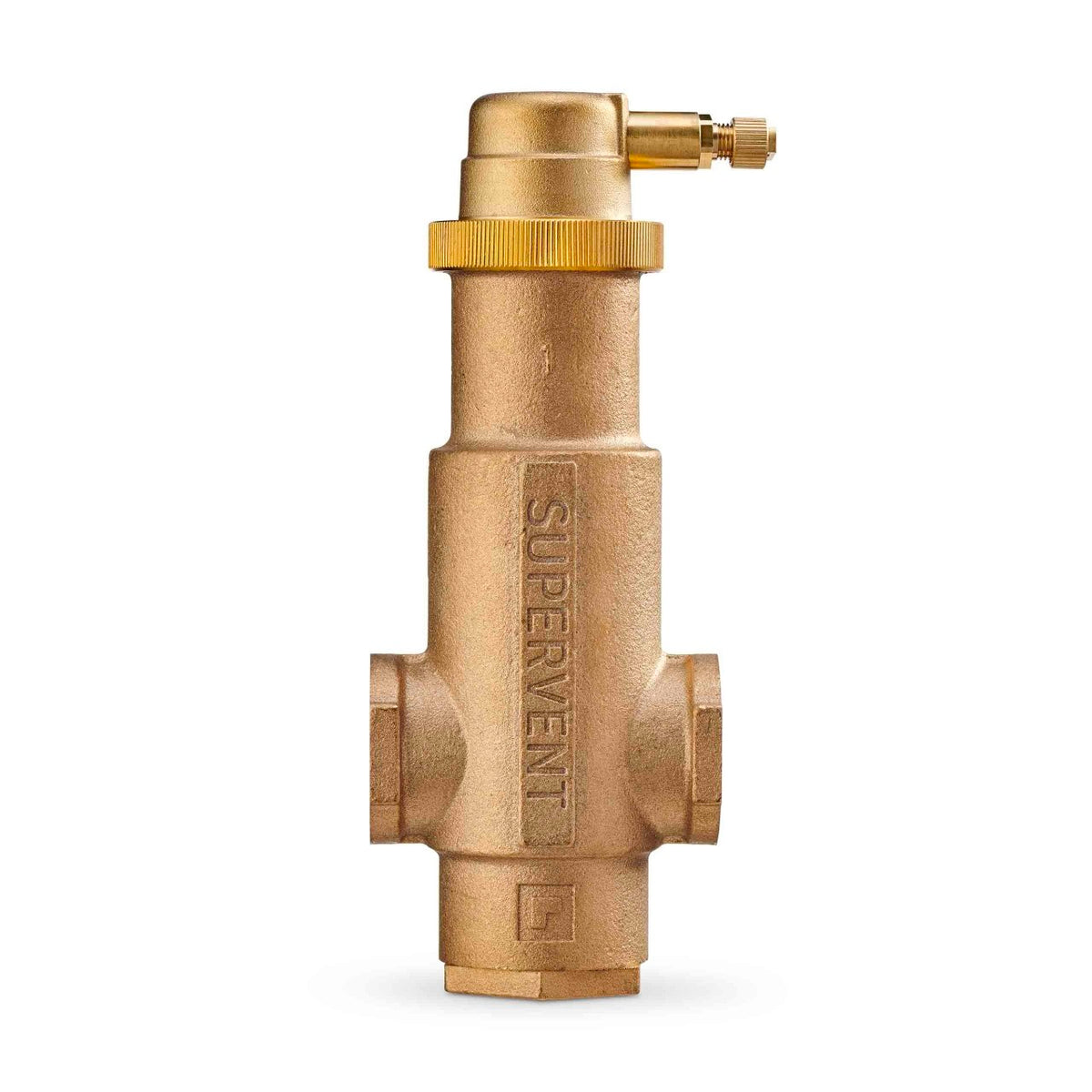

Supervent Universal for vertical riser applications, 1-1/4 in NPT.
Features
- Brass cap for system shutoff
- System can be air tested
- Adjustable Vent Top Collar Ring allows easier installation and application flexibility
- High Temperature Thermoplastic Float
- Stainless Steel Concentrator is a patented and more efficient way to eliminate air
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: PVU125/U
- Application: Residential or Commercial closed loop hydronic heating or chilled water systems
- Controlled Media: Non Potable Water
- Flow Coefficient: 27 Cv
- Warranty: 1 Year
- Color: Brass
- Compatible With: Hydronic Heating and Cooling Systems
- For Use With: PV-001RP/U Replacement Vent Top Float Assembly, PV-020RP/U Vent Top Replacement (New Style 90 Degree)
- Bi-directional Flow: Yes
- Bottom Connection: Yes
- Connection Size: Bottom Inlet 1-1/4 in, Bottom Inlet 31.75 mm
- Connection Type: Female NPT
- Pipe Size: 1 1/4 in
- DN Size: DN32
- Operating Pressure (Max): 125 psi
- Product Diameter: 2.5 in maximun
- Product Height: 8.9 in, 226 mm
- Product Weight: 3.6 lb, 1.63 kg
- Product Width: 3.7 in, 81 mm
- Seal Material: EPDM Rubber
- Float Material: TPX® Polymethylpentene (PMP)
- Body Material: Bronze
- UPC: 085267828376
- Country of Origin: MX
- Category: Air Separators
