Description

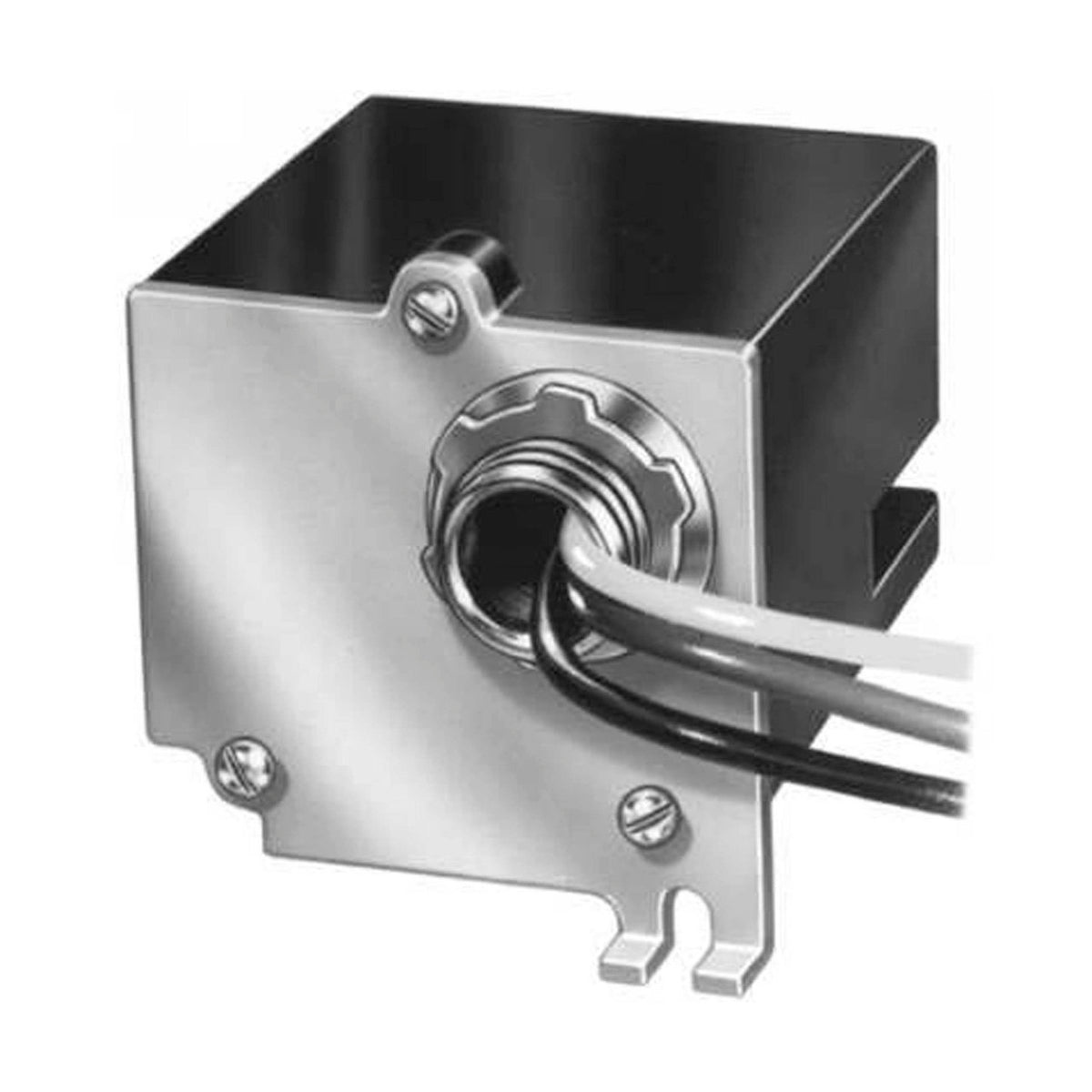

Fully enclosed SPDT relay with a 24 V, 60 Hz coil and leadwire connections.
Features
- Molded terminal numbers and circuit diagram on top of relay provide easy identification for wiring and checking system operation
- Untaped coil assures cooler operation
- Laminated magnet construction for higher efficiency
- Base designed for easy replacement of competitive relays
- Double quick-connect coil terminals
- Plug compatible with Steveco 90-340 and Mars 90340
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: R8225A1017/U
- Application: Low voltage (24 V) control of line voltage fan motors and auxiliary circuits in heating, cooling, and heating-cooling systems
- Approvals and Standards: UL Listed: File No. E14480, Vol. 1. Sec. 3, Guide No. NLDX, CSA Certified: File No. LR95329-1
- Includes: Conduit Mount bracket
- Coil Rating Voltage: 24 V ac
- Coil Connection Size: 10 in
- Coil Connection Type: Leadwire
- Number of Poles: 1 Pole
- Operating Frequency: 60 Hz
- Power Supply Frequency: 60 Hz
- Switch Action: SPDT N.C., SPDT N.O.
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 155 °F
- Mounting Type: Spud mounting on an outlet box
- Product Height: 2.69 in, 68 mm
- Product Length: 2.44 in, 54 mm
- Product Width: 2.5 in, 64 mm
- UPC: 085267990059
- Country of Origin: US
- Category: Relays
