Description

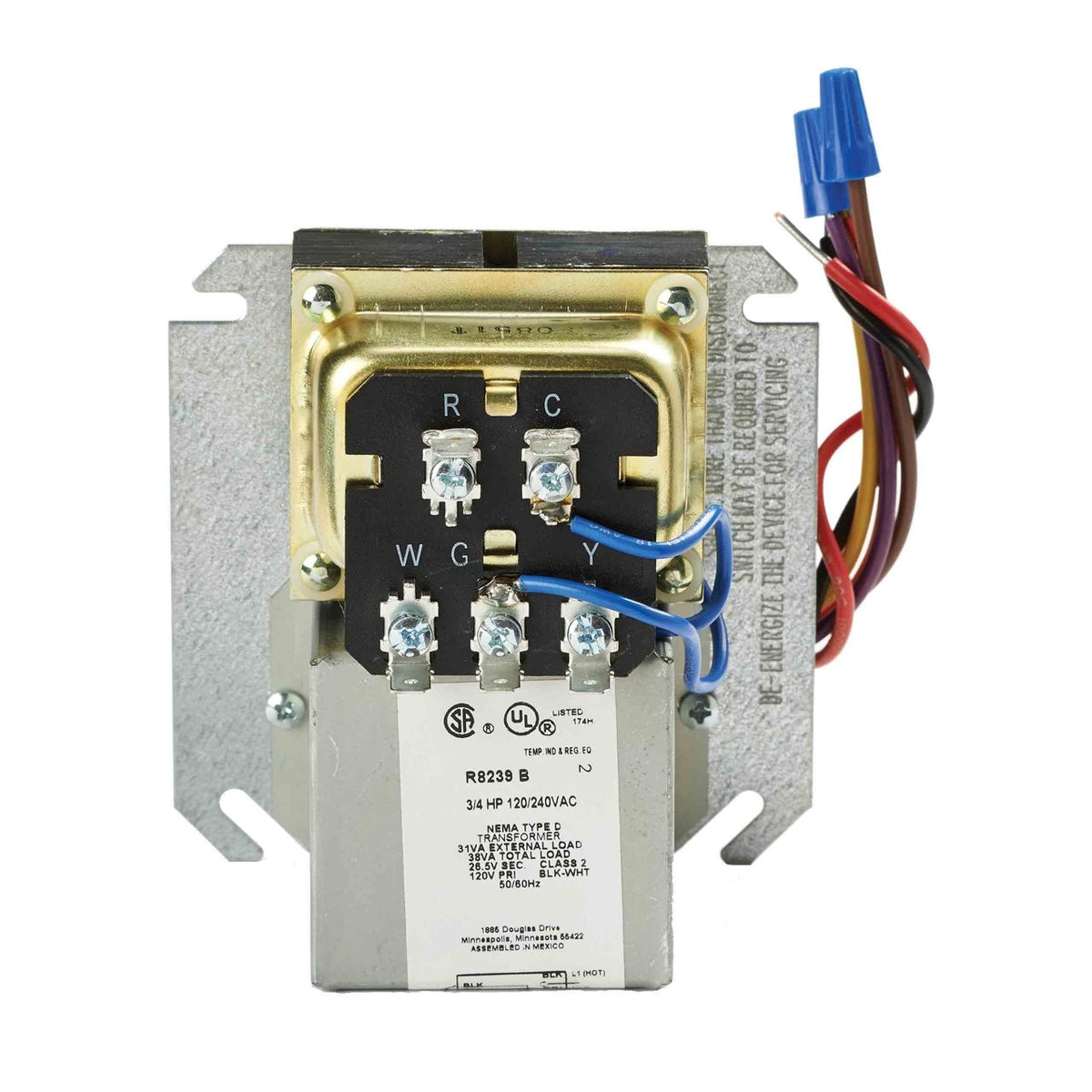

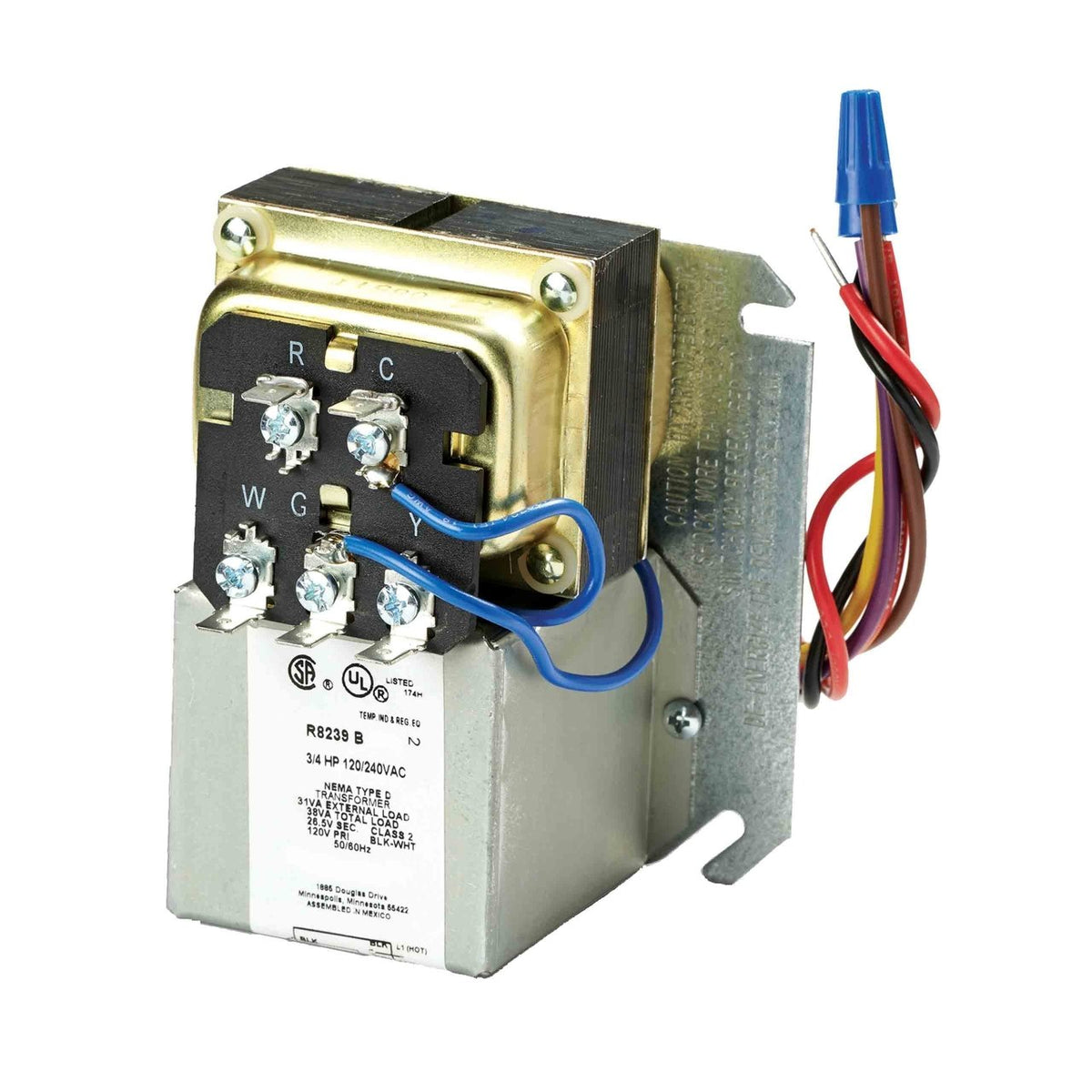

Fan center with a 120 V primary and a metal cover.
Features
- NEMA standard Type D transformer (included) powers 24Vac control systems
- Provides overload protection for transformer
- Convenient connections for thermostat and heating and cooling equipment wiring
- Mounts on standard 4 x 4 junction box
- Can be mounted in any indoor location without additional enclosure
- Relay is easily replaced without disturbing wiring
- Includes relay enclosure
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: R8239A1003/U
- Application: Low voltage control of line voltage fan motors and auxiliary circuits in heating, cooling or heating-cooling systems
- Approvals and Standards: NEMA Standard DC20-1992, UL Listed, CSA Certified
- Compatible With: Heating only, Cooling only, Heating and Cooling
- Includes: R8222B, Relay enclosure
- Coil Rating Voltage: Inrush 20 VA maximum, Sealed 9 VA
- Number of Poles: 1 Pole
- Operating Frequency: 50 Hz, 60 Hz
- Operating Voltage: 120 Vac
- Power Supply: 40 VA, 26.5 V Secondary
- Power Supply Frequency: 50 Hz, 60 Hz
- In-Rush Voltage (Max): 20 VA
- In-Rush Voltage (Nominal): 9 VA
- Switch Action: SPDT
- Warranty: 1 Year
- Mounting Type: Exposed Junction Box
- Product Height: 4.5 in, 144 mm
- Product Length: 4.19 in, 106 mm
- Product Weight: 2.7 lb
- Product Width: 3.1 in, 79 mm
- UPC: 085267080255
- Country of Origin: MX
- Category: Relays
