Description

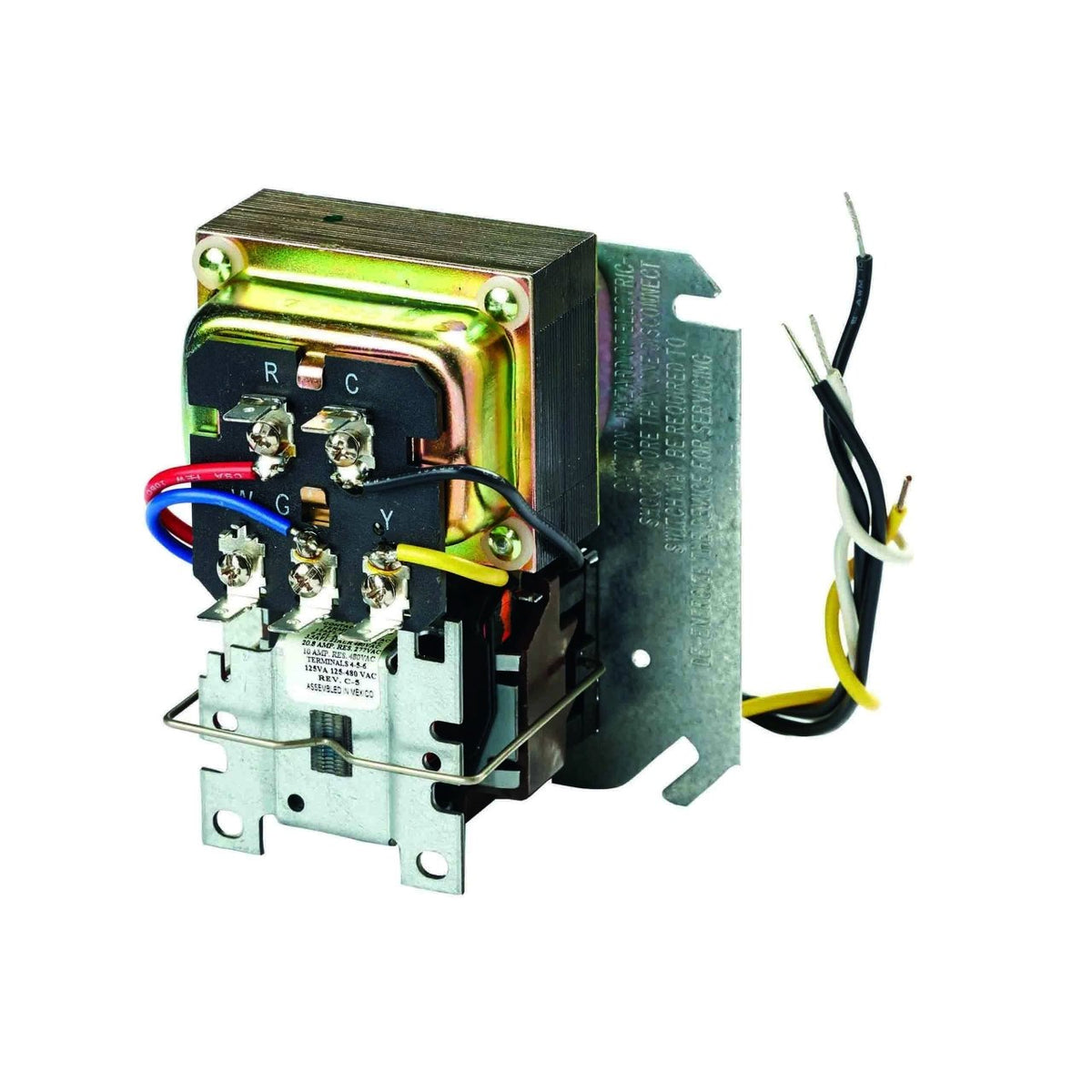

Tradeline fan center, 120/208/240 V, consisting of a 40 VA transformer and an R8222D plug-in DPDT relay (power poles) with no cover, on a 4 x 4 plate.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: R8285B1053/U
- Application: DPDT switching for applications with electronic air cleaner, humidifier and blower motor.
- Approvals and Standards: UL Component Recognized; File No. E4436, Vol.15, Sec.1, Guide No.XAPX2, CSA Certified: File No. LR95329-17
- Includes: R8222D
- Coil Rating Voltage: Inrush 20 VA maximum, Sealed 9 VA
- Number of Poles: 2 Poles
- Operating Frequency: 60 Hz
- Operating Voltage: 120 Vac, 208 Vac, 240 Vac
- Switch Action: DPDT
- Warranty: 1 Year
- Product Height: 4.19 in, 106 mm
- Product Width: 4.5 in, 114 mm
- UPC: 085267081221
- Country of Origin: MX
- Category: Relays
