Description

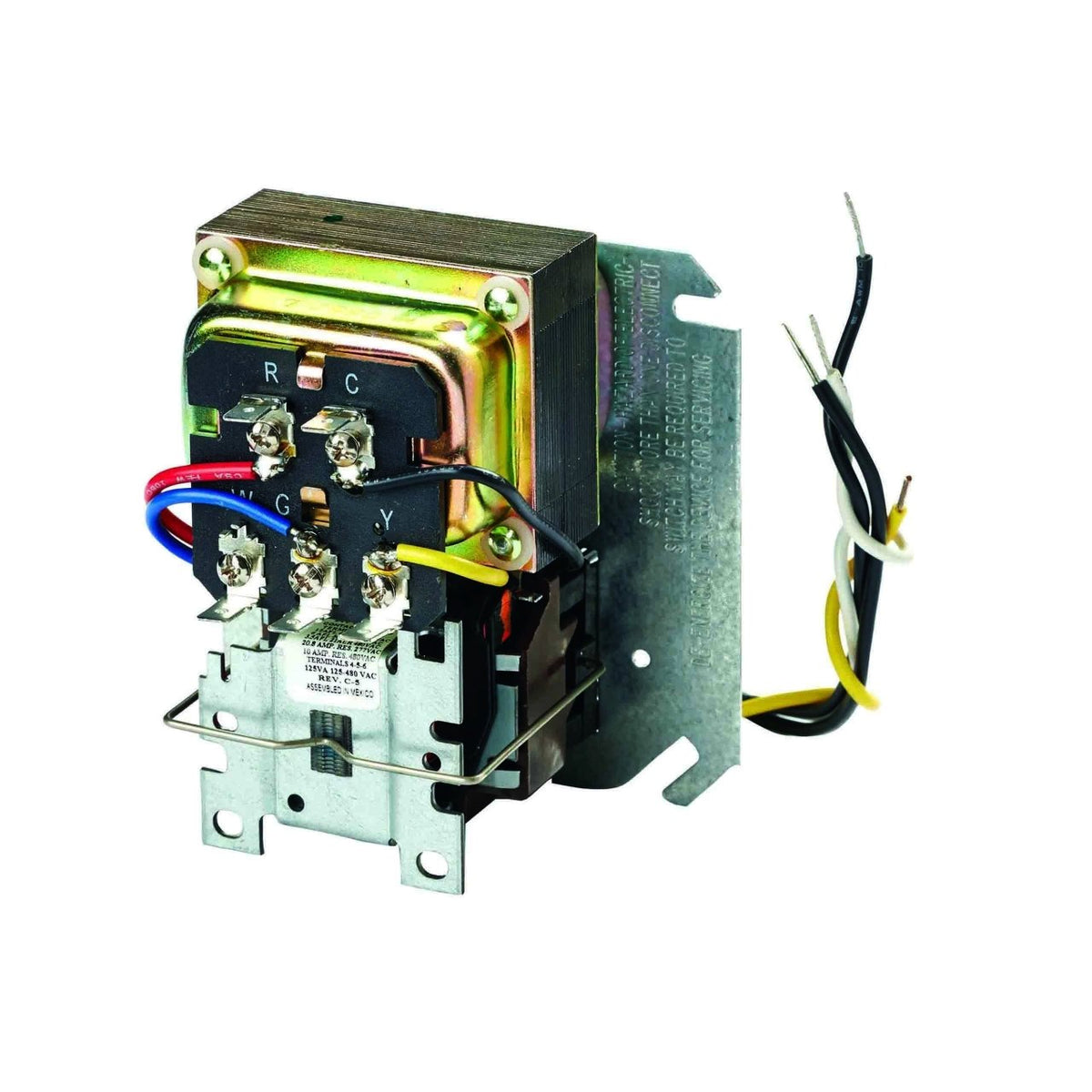

DPST fan center, 120 V, with a 50 VA transformer, for SV9500/9600 applications.
Features
- For Hydronic Applications; use with SV9600 SmartValve™ System and other systems that require 50 VA capacity
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: R8285D5001/U
- Application: DPST switching for one-speed fan motor and limit controller applications
- Approvals and Standards: UL Component Recognized; File No. E4436, Vol.15, Sec.1, Guide No.XAPX2, CSA Certified: File No. LR95329-17
- Includes: R8222U
- Coil Rating Voltage: Inrush 20 VA maximum, Sealed 9 VA
- Number of Poles: 2 Poles
- Operating Frequency: 60 Hz
- Operating Voltage: 120 Vac
- Switch Action: DPST (One Power Rated, One Pilot Duty)
- Warranty: 1 Year
- Product Height: 4.19 in, 106 mm
- Product Width: 4.5 in, 114 mm
- UPC: 085267141840
- Country of Origin: MX
- Category: Relays
