Description

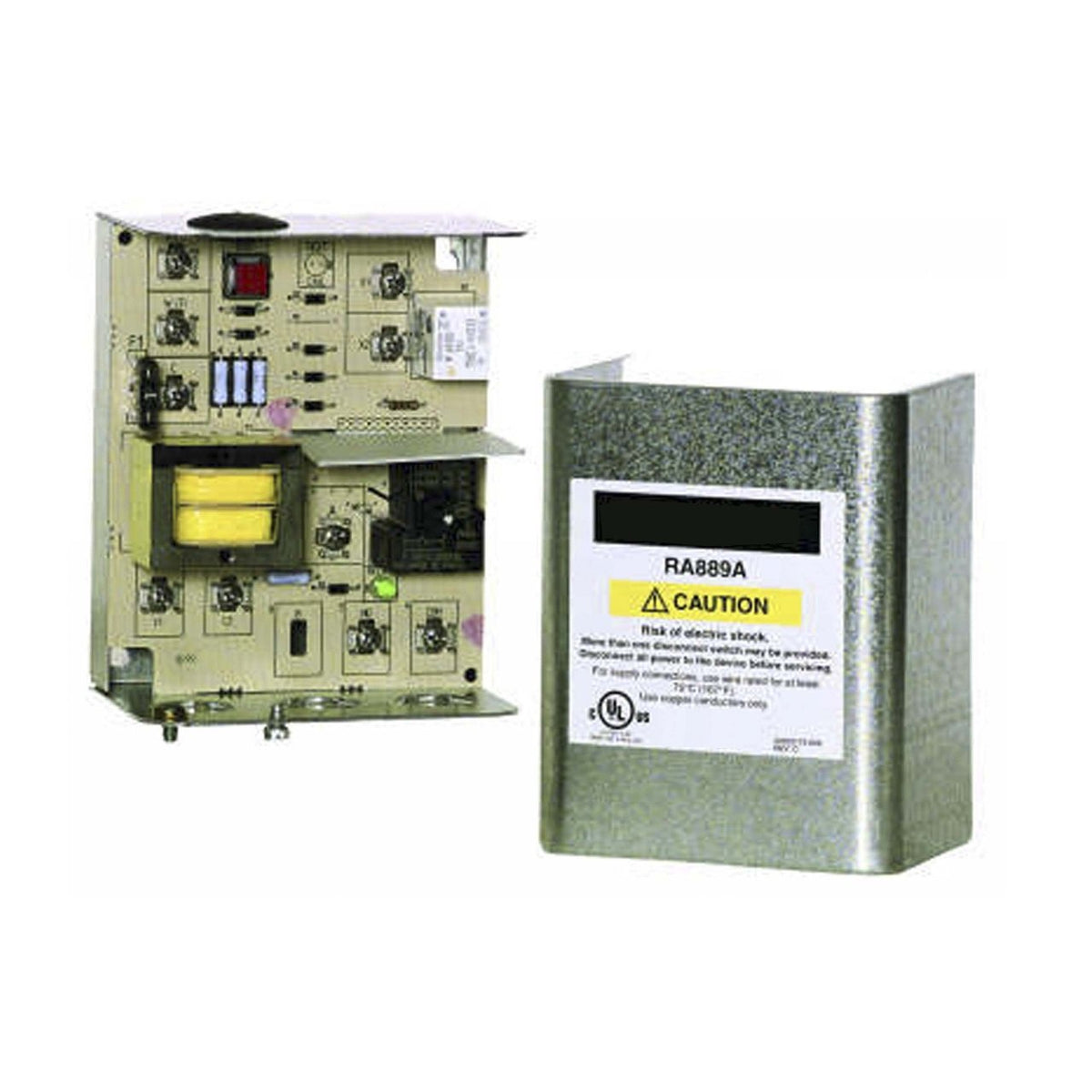

Relay for SPDT switching of two line voltage loads plus SPST switching of a low voltage load, 120 V 60 Hz.
Features
- High load switching capability
- Troubleshooting LED
- Push-to-test button
- Replaceable transformer fuse
- Long-life DC relay drive control technology
- Relay for use with external 24 Vac or 24 Vdc supply, with line-voltage control, or with internal 24 V transformer supply
- One model replaces many models
- Secondary of transformer protected by replaceable 1A automotive fuse
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: RA889A1001/U
- Application: SPDT switching of a line and low voltage devices from a line or low voltage controller, SPST switching of a line and low voltage devices from a line or low voltage controller
- Approvals and Standards: UL Listed: File No. E4436, Guide No. XAPX, Canadian UL Listed: Guide No. XAPX7.
- Includes: Integral transformer, Enclosure
- Number of Poles: 1 Pole
- Power Supply Frequency: 60 Hz
- Switch Action: Two SPST
- Compatible Thermostat: Low voltage (Class 2) 2-wire Thermostat
- Warranty: 1 Year
- Product Height: 6.25 in, 159 mm
- Product Length: 3.5 in, 89 mm
- Product Width: 4.44 in, 118 mm
- UPC: 085267198370
- Country of Origin: MX
- Category: Relays
