Description

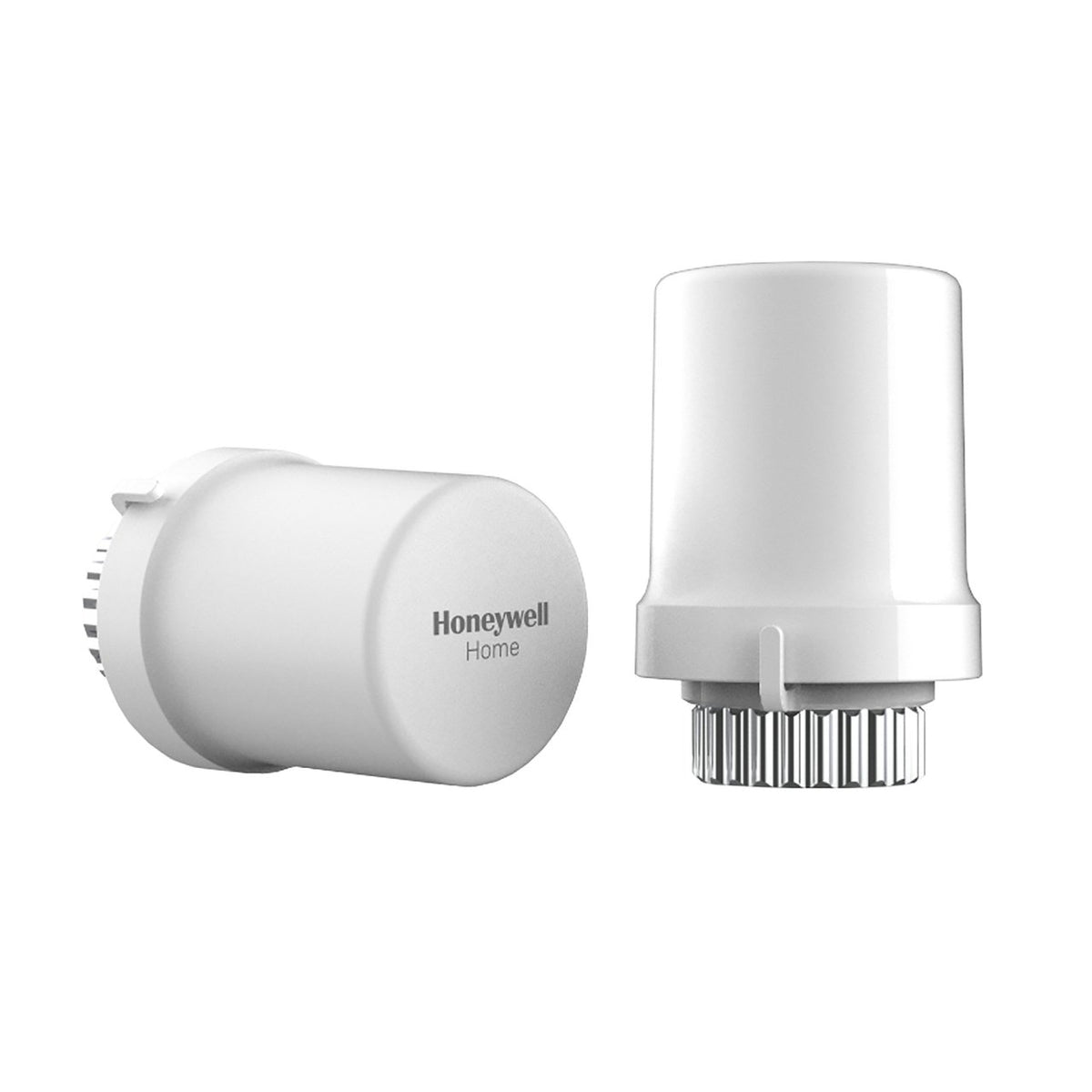

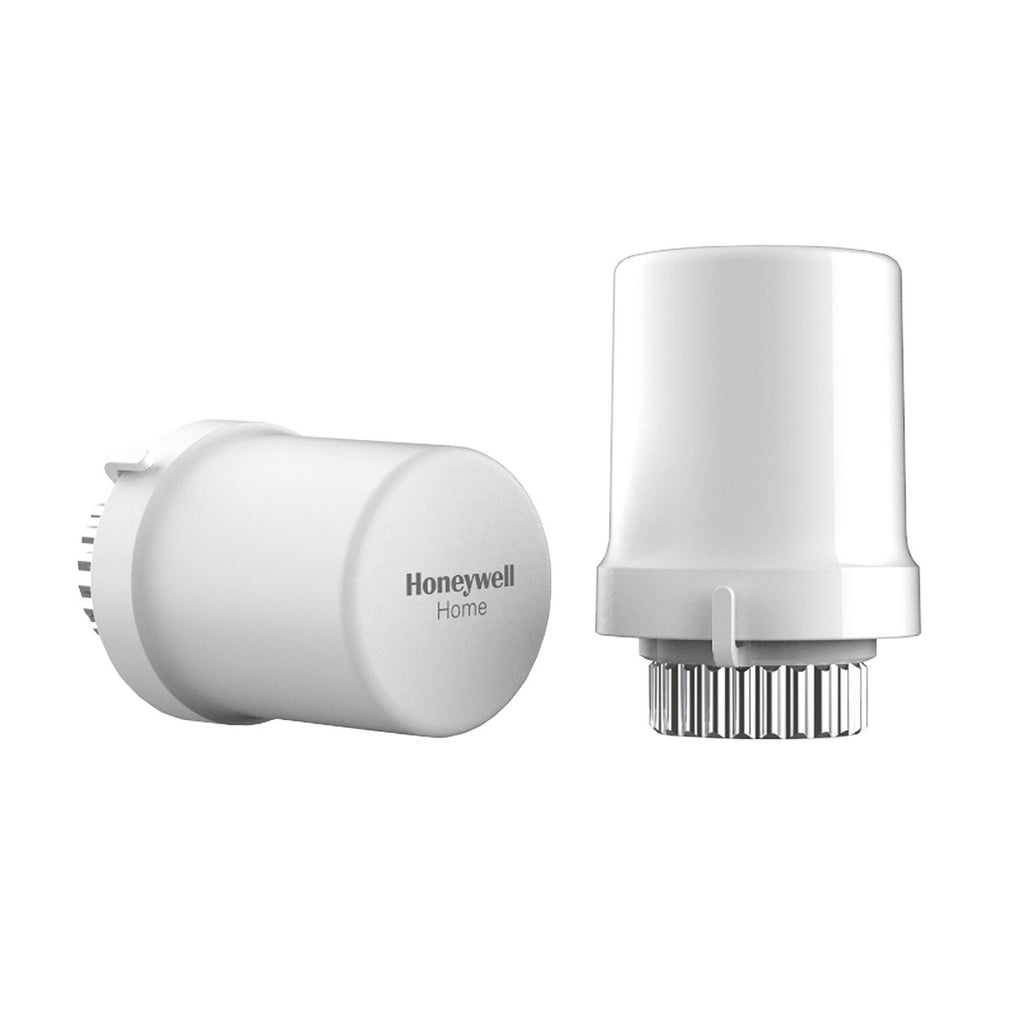

Thera Six thermostatic head for MMA M28.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: T3019MMAW0
- Application: A self-contained control with sensor, setpoint dial and valve actuator in one unit. Not for use inside enclosures or where airflow around sensor is restricted.
- Scale Markings: 0 - *, 1 to 5
- Body-Head Connection: M28 x 1,5
- Closing Dimension: 1-3/16 in collar, 30 mm collar
- Connection Type: Threaded Connections
- Approvals and Standards: EN 215, Keymark, TELL A
- Color: White
- Set point Temperature (Max): 82 °F, 28 °C
- Set point Temperature (Min): 34 °F, 1 °C
- Sensor Location: Integral
- Frost Protection: Yes
- Shipping and Storage Temperature (Max): 122 °F, 50 °C
- Shipping and Storage Temperature (Min): -4 °F, -20 °C
- Suitable for Valve Compact Radiator: Yes
- Zero Position: Yes
- For Use With: MMA Valves, Macon Valves
- Product Height: 3.07 in, 48 mm
- Additional Dimensions Details: 1.95 in. diameter, 49.5 mm diameter
- UPC: 5059087010414
- Country of Origin: CZ
- Category: Thermostatic Radiator Controls & Valves
