Description

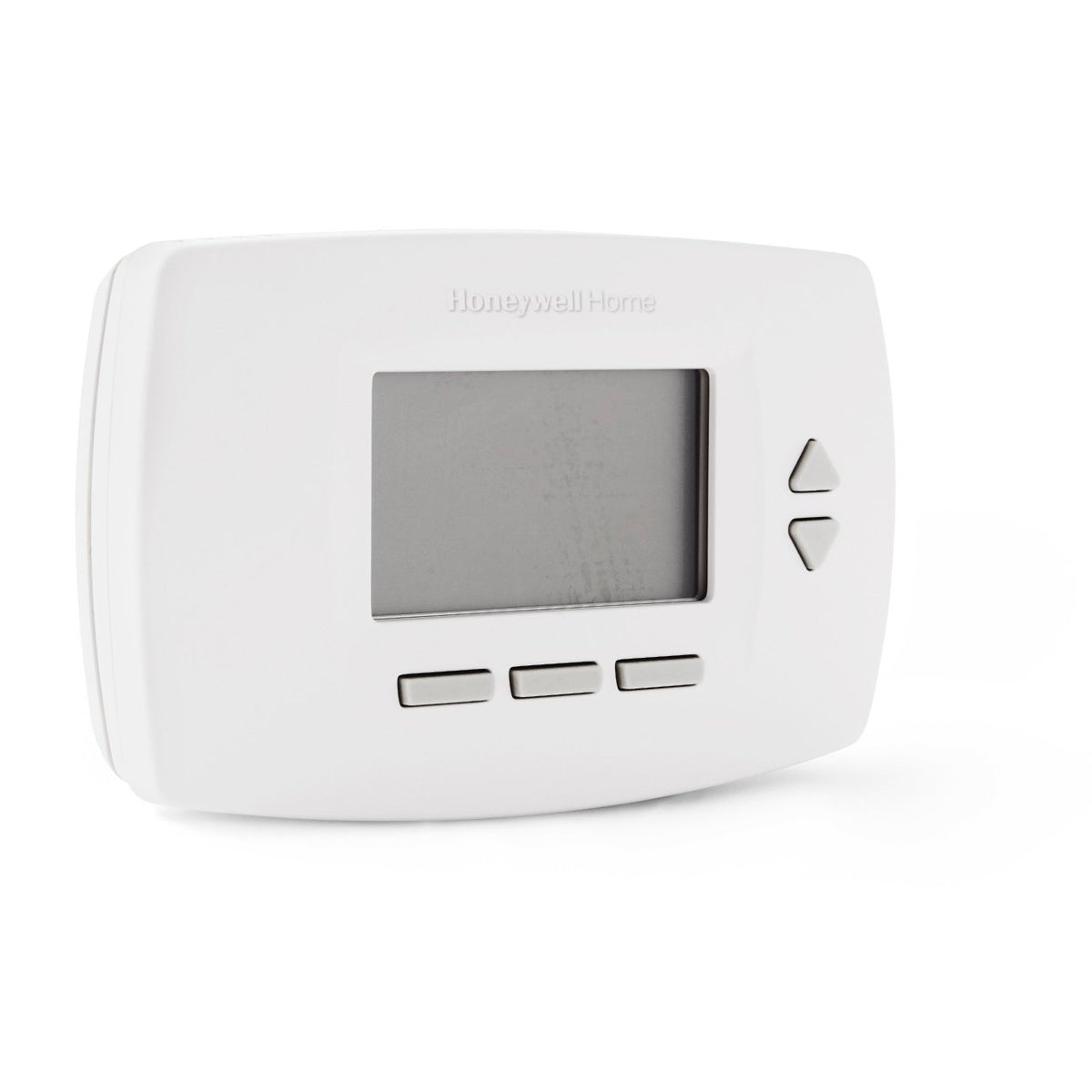

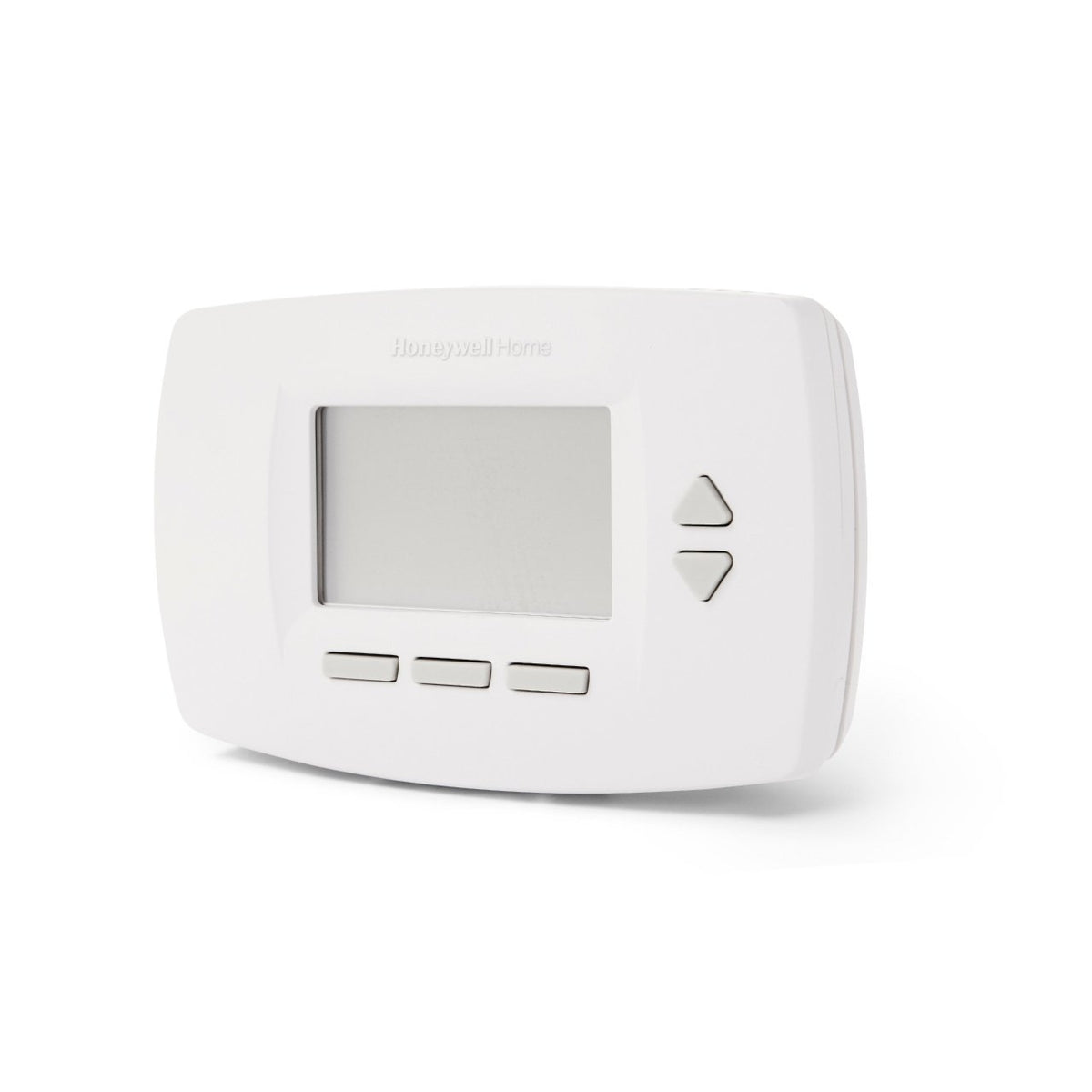

MultiPRO multispeed, multi-application thermostat, 7-day programmable or non-programmable, for 1H/1C conventional, up to 2H/1C heat pump, and 4-pipe fan coil systems.
Features
- Selectable programmable or non-programmable.; Includes 3 speed fan control and configurable sensor input for indoor temperature, occupancy sensor, or changeover
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TB7100A1000/U
- Application: Conventional Systems, Heat Pump Systems, Fan Coil Systems, PTAC Systems
- Thermostat Type: Programmable
- Approvals and Standards: Meets the same requirements as UL-873
- Stages: 1 Heat/1 Cool Conventional Systems, Up to 2 Heat/1 Cool Heat Pump Systems, 2 or 4 pipe Fan Coil Systems, Up to 2 Heat/1 Cool PTAC Systems
- Smart Home Integration: No

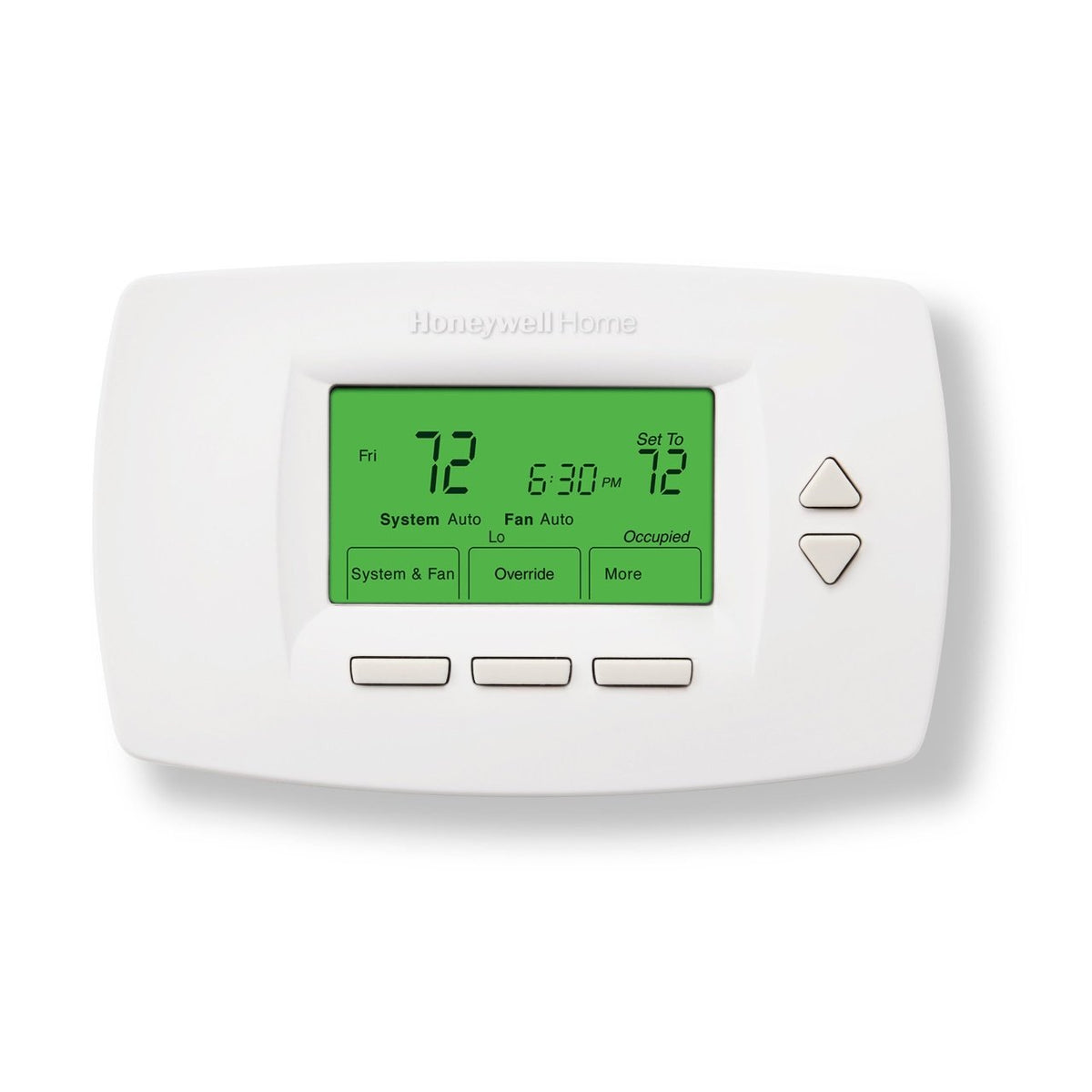

- Display Type: LCD Screen
- Display Size: 3.75 sq in
- Modes of Operation: Heat, Cool, Auto, Off
- Alerts and Reminders: Battery Replacement
- Power Supply: Battery Powered, Hardwired
- Battery Type: Alkaline
- Power Source: Battery Operated, Hardwired
- Number of Batteries: 2
- Battery Life: 1 Year
- Battery Size: AA
- Warranty: 5 Years
- Includes: 3 Speed Fan Control and Configurable Sensor Input for Indoor Temperature, Occupancy Sensor, Changeover
- WiFi: No
- Z-Wave: No
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: Premier White®
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 102 °F, 39 °C
- Ambient Operating Temperature (Min): 37 °F, 2.8 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Clock Type: Year Clock
- Temperature Accuracy: ±0.5 °C, ±1 °F
- Mounting Type: Horizontal Mount
- Number of Fan Speeds: 3
- Operating Frequency: 50 Hz, 60 Hz
- Power Supply Frequency: 50 Hz, 60 Hz
- Set point Temperature (Max): Heat: 90 °F, Heat: 32 °C, Cool: 99 °F, Cool: 37 °C
- Set point Temperature (Min): Heat: 40 °F, Heat: 4 °C, Cool: 50 °F, Cool: 10 °C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Switch Action: DPDT
- Mounting Location: Wall, Internal
- Switch Type: Relay
- Product Depth: 1.5 in, 38 mm
- Hazmat Information: LI metal Button Cell contained in Equipment *No Label is required*
- UPC: 085267676724
- Country of Origin: MX
- Category: Programmable Thermostats
