Description

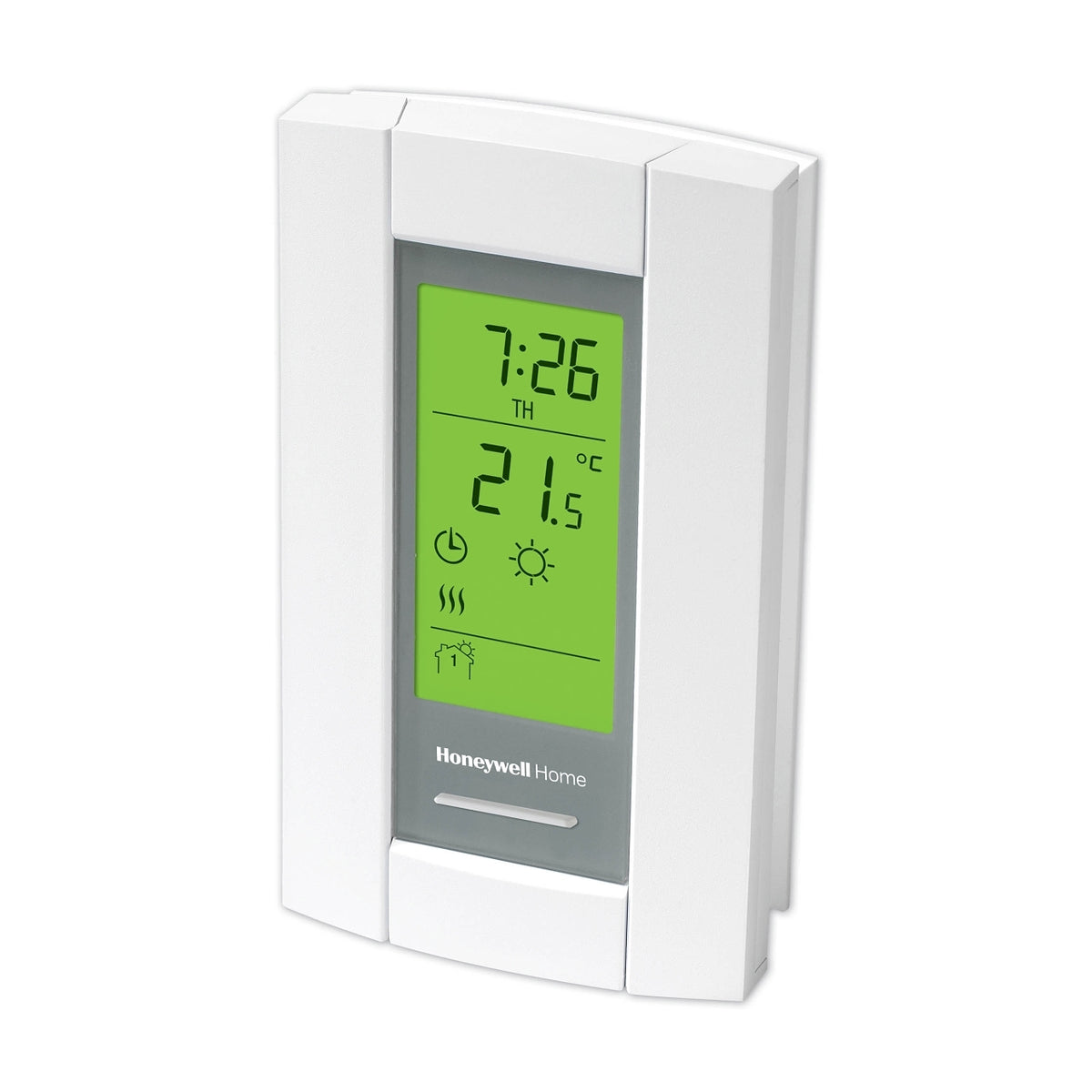

Low voltage 7-day programmable thermostat rated 0.5 A at 24 V with R, C, W terminals, 15-second cycles, and a backlit screen.
Features
- TRIAC thermostat - Accuracy of ± 0.27°F for maximum savings and comfort
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH115-A-024T-15S/U
- Application: Convector; Baseboard heater; Radiant ceiling; Electric Heating
- Thermostat Type: Programmable, Low Voltage
- Smart Home Integration: No
- Display Type: LCD Screen
- Display Time Format: 24 Hour, 12 Hour (AM/PM)
- Displayed Information: Indoor Temperature, Time, Day, Mode Icons, Heating Intensity Indicator
- Modes of Operation: Heat, Off
- Program Type: 7-Day Programmable
- Power Supply: Hardwired
- Warranty: 3 Years
- Includes: Includes mounting hardware
- For Use With: Aube RT850T Series Solid State Relays
- Z-Wave Specifications: Not Applicable
- RedLINK: No
- Color: White
- Sensor Type: Thermistor
- Ambient Operating Temperature (Max): 120 °F, 49 °C
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Backlight Options: Backlight Button
- Clock Type: Year Clock
- Mounting Type: Vertical Mount
- Set point Temperature (Max): 86 °F, 30 °C
- Set point Temperature (Min): 40 °F, 5 °C
- Switch Type: External solid state relay
- Product Height: 4.9 in, 2.8 mm
- Product Length: 2.8 in, 70 mm
- Product Width: 0.9 in, 23 mm
- Product Depth: 1.5 in, 38 mm
- UPC: 775264115103
- Country of Origin: CN
- Category: Programmable Thermostats
