Description

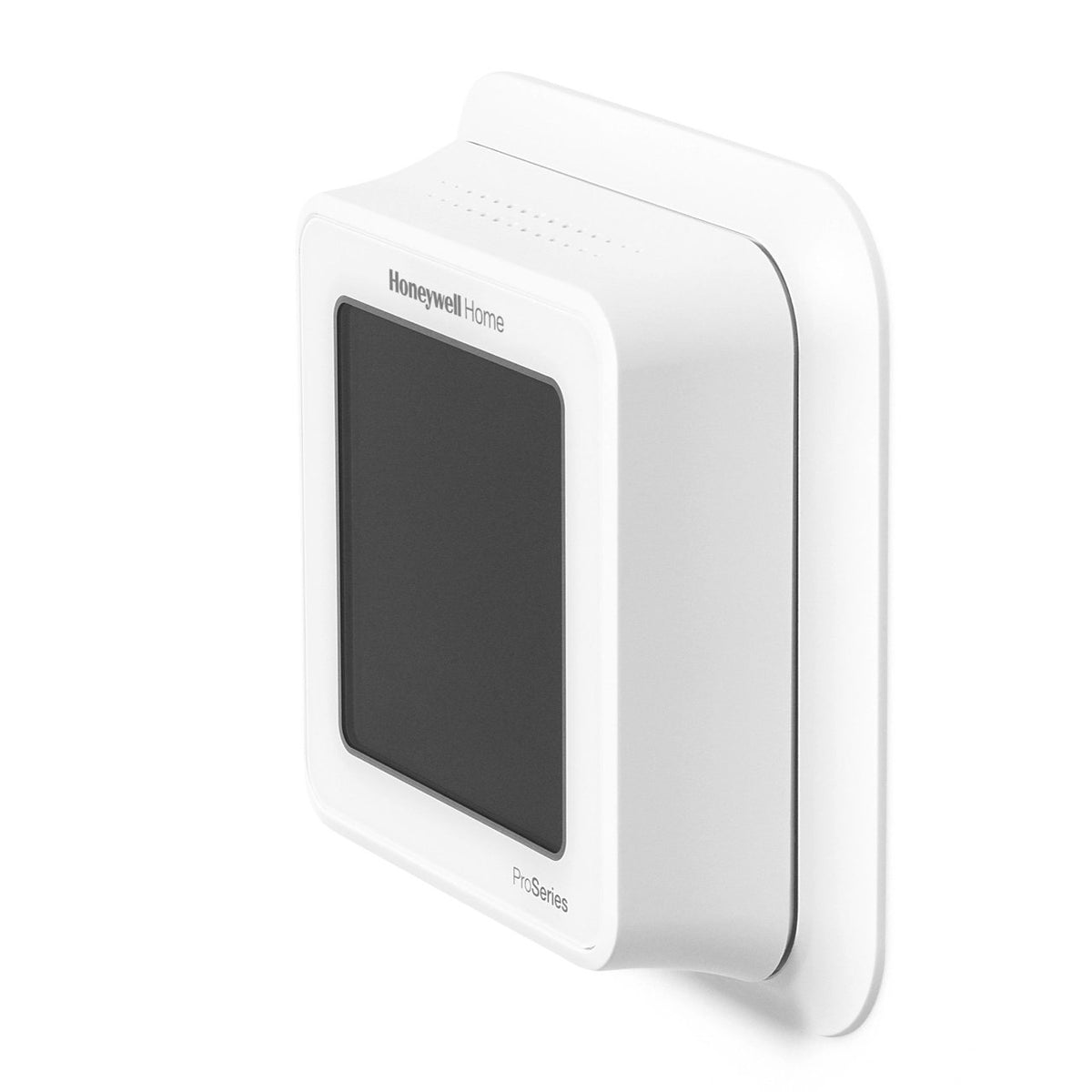

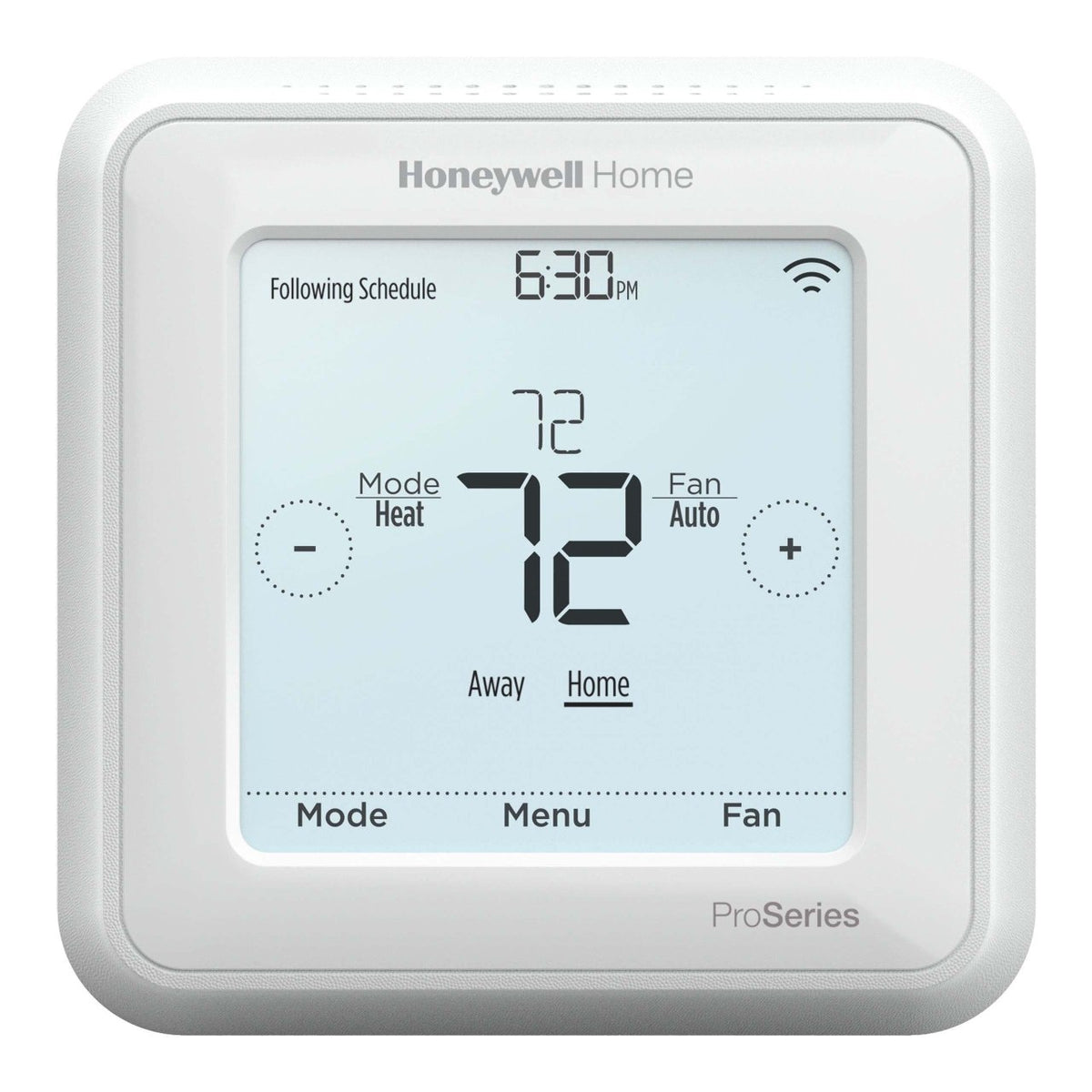

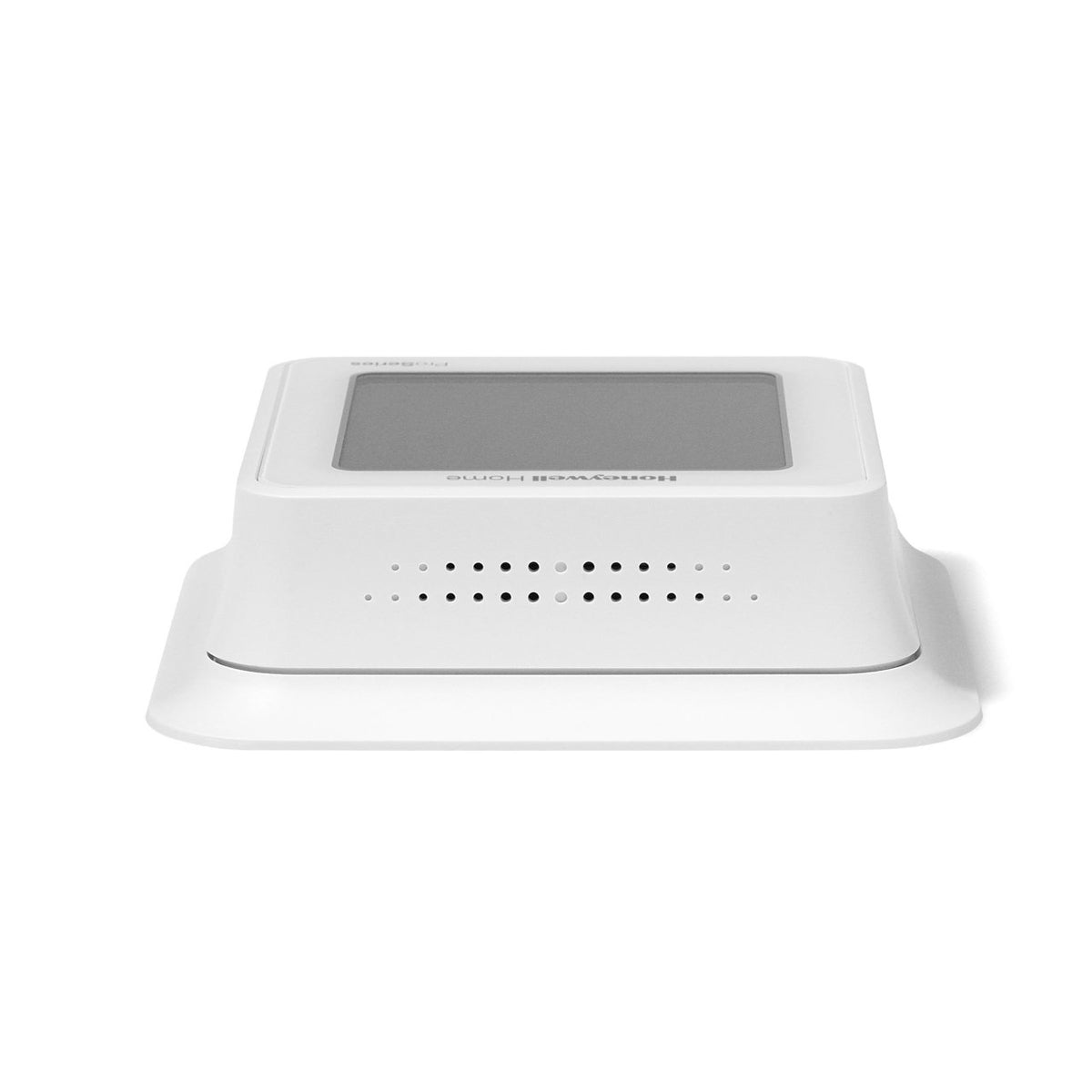

T6 Pro Z-Wave thermostat, 700 Series.
Features
- Occupancy sensor through Z-wave panel and App
- Smart Home Integration works through Z-Wave Controller the thermostat is paired with
- Selectable ranges stops
- Z-Wave Plus certified
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: TH6320ZW2007/U
- Application: Z-wave systems, 24 Vac systems; Gas, Oil, Electric Warm Air, Hot water Coil; Gas, Oil, Electric Hydronic; or Steam / Gravity Systems
- Thermostat Type: Programmable, Digital, Low Voltage, Z-Wave
- Approvals and Standards: Compliant with IC Regulations RSS-GEN
- Stages: Up to 3 Heat/2 Cool Heat Pumps + Dual fuel, Up to 2 Heat/2 Cool Conventional Systems
- Smart Home Integration: Yes
- Display Type: Touch Screen
- Display Size: 6.89 sq in
- Touchscreen: Yes
- Display Language: English
- Display Time Format: 24 Hour, 12 Hour (AM/PM)
- Displayed Information: Indoor Temperature, Indoor Humidity, Mode, Current Setting, Connected symbol, Time, Status Display
- Display Functions: Backlit
- Modes of Operation: Heat, Cool, Emergency Heat, Off, Auto
- Programming Features: Occupancy Through App
- Program Type: 1 Week, 5-1-1 Programmable, 5-2 Programmable, 7-Day Programmable, Manual / Not Programmed
- Alerts and Reminders: Humidity Sensor Error, Heat Pump Failure, Vent Filter, UV Bulb 1, UV Bulb 2, Battery Replacement, Dehumidifier Filter, Filter Change 1, Filter Change 2, Humidifier Pad, Internal Sensor Failure
- Power Supply: 20 to 30 Vac
- Battery Type: Alkaline
- Frequency: 50 Hz, 60 Hz
- Number of Batteries: 3
- Battery Life: 1 Year
- Battery Size: AA
- Warranty: 5 Years
- Occupancy Sensor: Z-Wave Control Panel and App

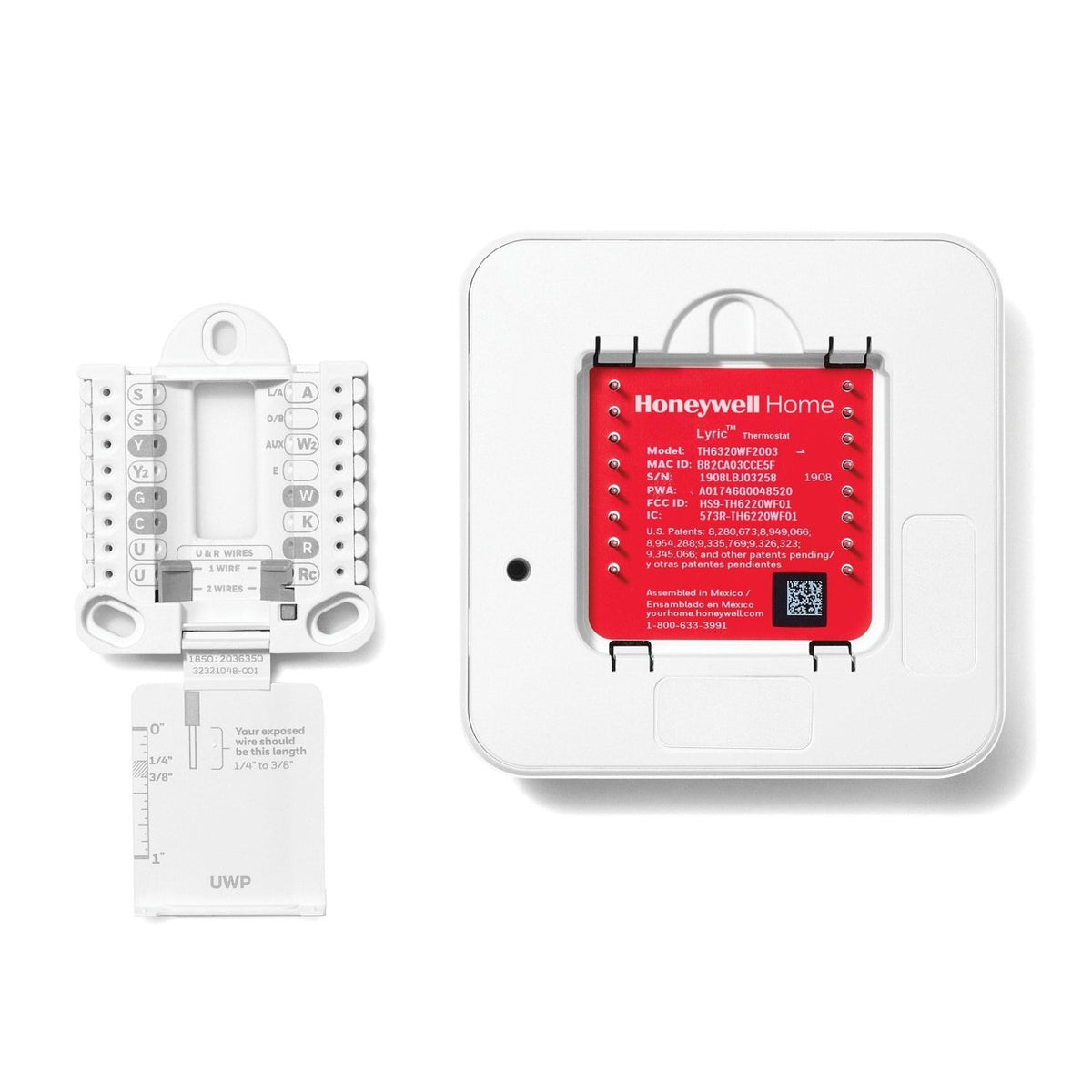

- Includes: T6 PRO Z-Wave Thermostat, UWP mounting system, Cover plate, Mounting hardware, Literature
- For Use With: Optional Outdoor Sensor C7089U1006, Optional Remote Indoor sensor C7189U1005
- WiFi: No
- Z-Wave: Yes
- Z-Wave Specifications: Z-Wave Plus, Z-Wave Interoperability, Frequency (USA and Canada): 908.42 MHz, Node type (C-wire): Always On Slave (AOS), Node type (Battery): Listening Sleeping Slave (LSS), Z-Wave Chipset: ZM5202AU
- RedLINK: No
- Color: White
- Ambient Operating Temperature (Max): 102 °F, 39 °C
- Ambient Operating Temperature (Min): 37 °F, 3 °C
- Differential Temperature: ± 1 °F, ± 0.5 °C
- Backlight Options: Adjustable
- Fan Function: On, Auto, Circulating
- Clock Type: Year clock
- Demand Response: Yes
- Temperature Accuracy: 0.5°C, 1°F
- Mounting Type: UWP Mounting System
- Power Supply Frequency: 50 Hz, 60 Hz
- Set point Temperature (Max): 90 °F, 32 °C
- Set point Temperature (Min): 40 °F, 4.5 °C
- Shipping and Storage Temperature (Max): 120 °F, 49 °C
- Shipping and Storage Temperature (Min): -20 °F, -29 °C
- Mounting Location: Wall, Internal
- Switch Type: Relay
- Product Height: 4.06 in, 104 mm
- Product Width: 4.06 in, 104 mm
- Product Depth: 1.09 in, 28 mm
- Hazmat Information: NOT RESTRICTED - SPECIAL PROVISION A123
- Features: Smart Response, Utility Rewards
- UPC: 194159007819
- Country of Origin: MX
- Category: Smart Thermostats
