Description

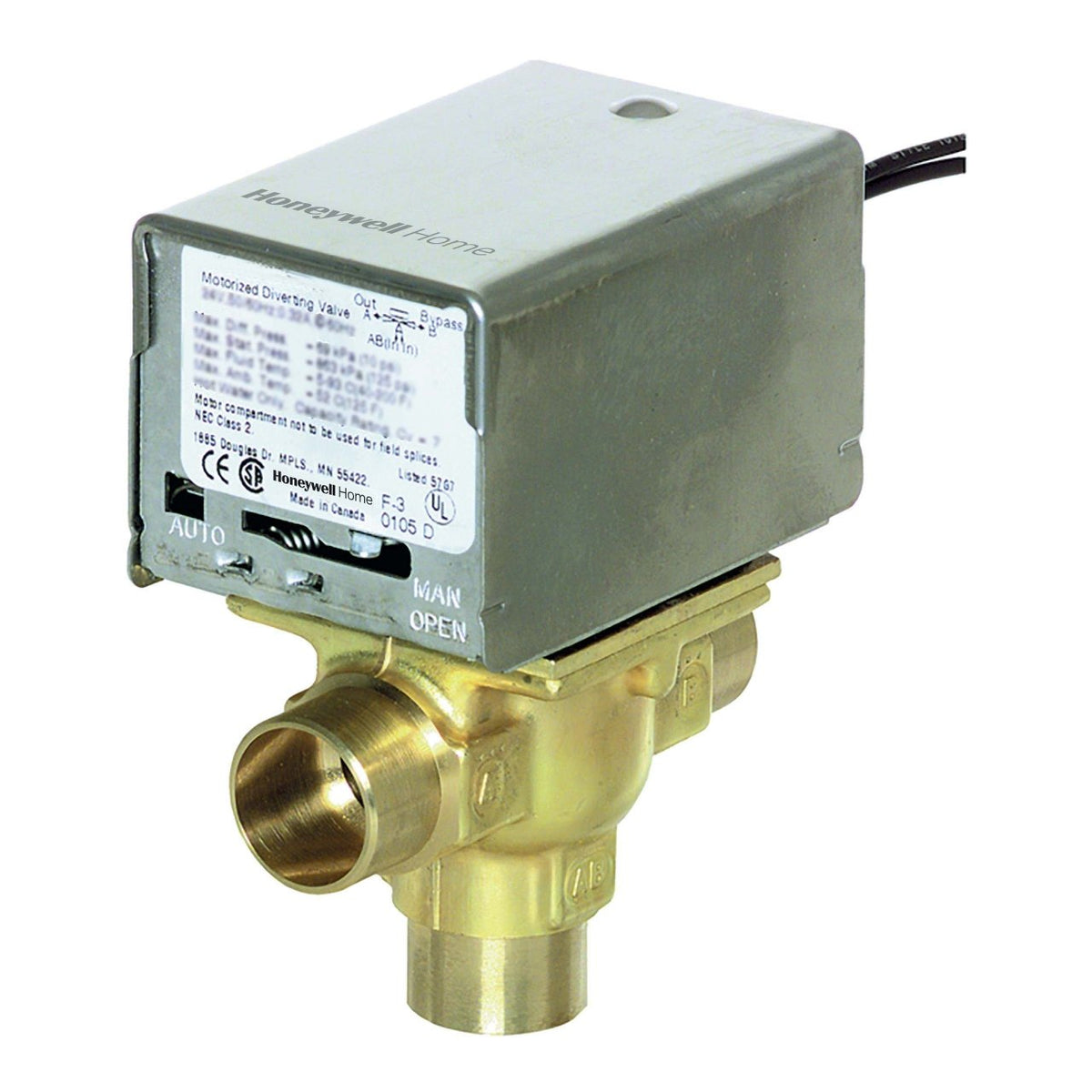

3-way motorized valve.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V4044C1312/B
- Controlled Media: Water with max. 50 % glycol according to VDI 2035
- Valve Ball Material: NBR
- Color: Metallic
- Includes: Manual Opener
- Warranty: 5 years
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: BSPP-INT
- Differential pressure for close-off (Max): 55 kPa
- Flow Coefficient: 9.5 Cv, 8.1 Kvs
- Media Temperature (Min): 40 °F, 5 °C
- Media Temperature (Max): 190 °F, 88 °C
- Operating Pressure (Max): 8.6 bar
- Static Pressure Rating: 125 psi, 862 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Three-way, Diverting
- Valve Plug Material: Buna-N (NBR) Rubber
- Valve Seat Material: Brass
- Valve Start Position: Port A Closed
- Valve Stem Material: Stainless Steel
- UPC: 085267130950
- Country of Origin: HU
- Category: 3-Way Zone Valve
