Description

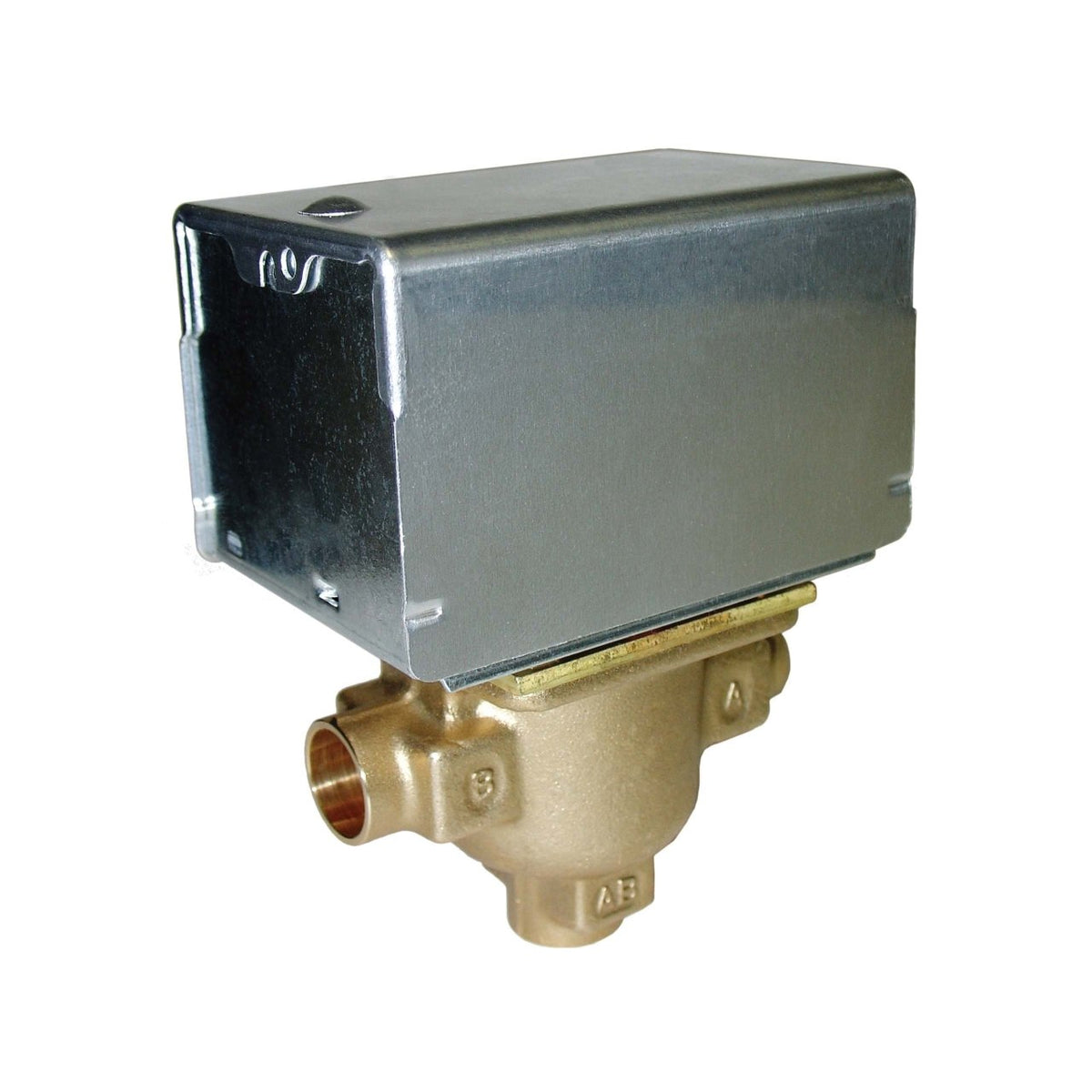

24 V/60 Hz diverting valve with 1/2 in sweat connection and 4 Cv.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: V8044E1003/U
- Valve Ball Material: Buna-N (NBR) Rubber
- Valve Disc Material: Buna-N (NBR) Rubber
- Approvals and Standards: UL Listed: File MH11826
- Color: Brass
- Includes: Manual Opener
- Product Height: 4.63 in, 117 mm
- Product Length: 2.38 in, 60 mm
- Product Weight: 0.95 lb
- Product Width: 3.69 in, 90 mm
- Warranty: 1 Year
- Ambient Operating Temperature (Max): 125 °F, 52 °C
- Connection Type: Sweat
- Differential pressure for close-off (Max): 20 psi, 138 kPa
- Flow Coefficient: 4 Cv, 3.4 Kvs
- Media Temperature (Min): 40 °F, 5 °C
- Media Temperature (Max): 200 °F, 93 °C
- Static Pressure Rating: 125 psi, 862 kPa
- Valve Body Material: Brass
- Valve Body Pattern: Three-way, Diverting
- Valve Plug Material: Buna-N (NBR) Rubber
- Valve Seat Material: Brass
- Valve Start Position: Port A Closed
- Valve Stem Material: Stainless Steel
- UPC: 085267109888
- Country of Origin: HU
- Category: 3-Way Zone Valve
