Description

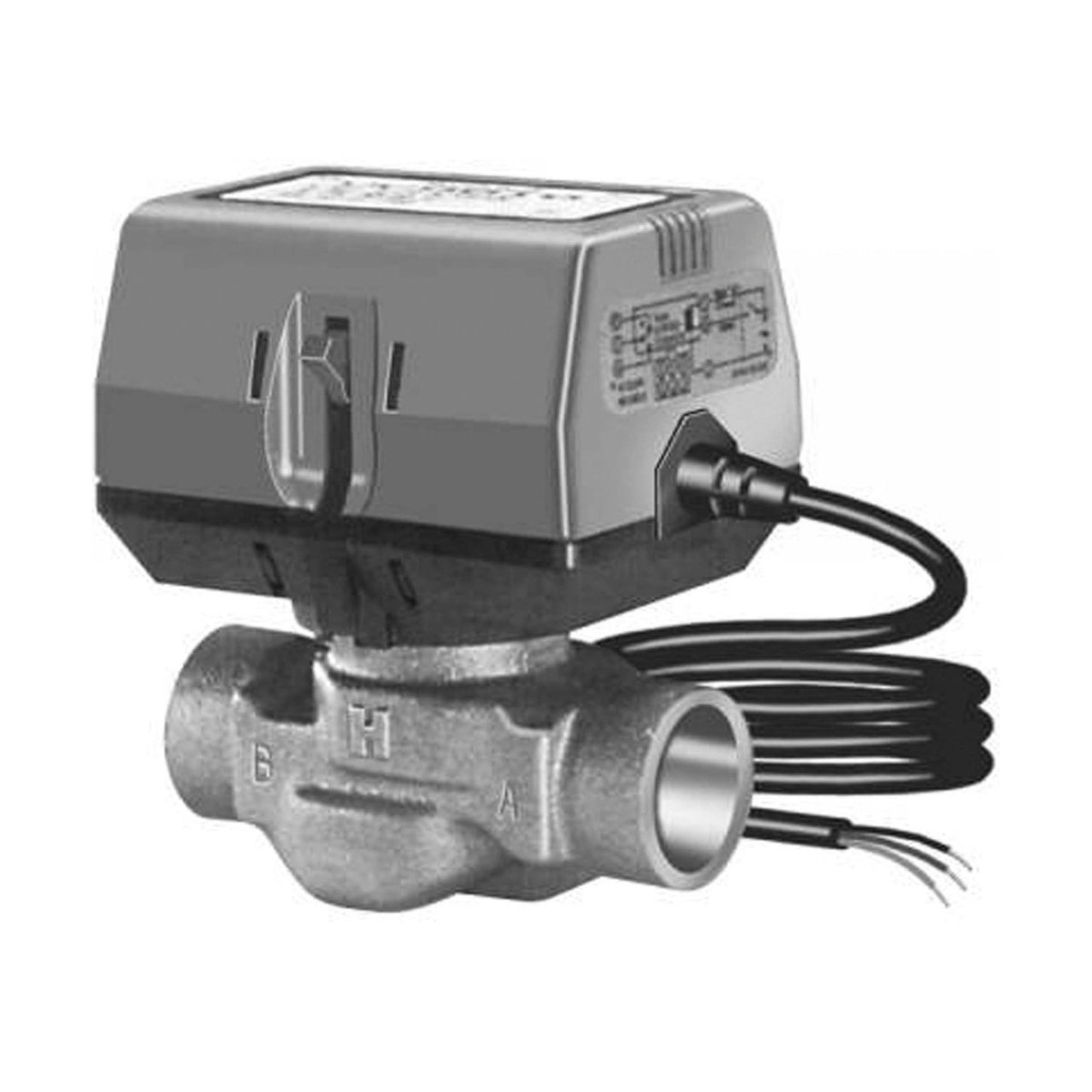

Two-position (on/off) VC actuator, 200–240 V 50/60 Hz.
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VC4013ZZ11/U
- Application: HVAC
- Approvals and Standards: UL Recognized, File# MH11826, CSA Certified: LR1322-367, 89/336/ECC, 73/23/EEC
- For Use With: VC Series Valves, 1000 Series 2-way and 6000 Series 3-way
- Compatible With: Use in cold, warm, and hot water applications
- Control Signal: Two position, SPST
- Warranty: 5 years
- Media Temperature (Max): 203 °F, 95 °C
- Mounting Type: Direct Coupled
- Ambient Operating Temperature (Min): 32 °F, 0 °C
- Ambient Operating Temperature (Max): 150 °F, 65 °C
- Shipping and Storage Temperature (Min): -40 °F, -40 °C
- Shipping and Storage Temperature (Max): 150 °F, 65 °C
- Operating Relative Humidity (Min): 5 % sans condensation, 5% Non condensing
- Operating Relative Humidity (Max): 95 % sans condensation, 95% Non condensing
- Protection Class: Double Insulated, IP40
- Fail-Safe Operation Type: Stays in place
- Drive Time: 6 sec
- Supply Voltage: 200 to 240 V AC
- Power Supply Frequency: 50 Hz, 60 Hz
- Power Consumption: 6 VA
- Differential pressure for close-off (Max): 60 psid, 400 kPa
- Manual Override Included: Yes
- Actuator Connection: Valve
- Connection Length: 39 in, 1 m
- Connection Type: Cable
- Stroke (Max): 0.4 in, 10 mm
- Product Height: 2.8 in, 70 mm
- Product Weight: 0.73 lb, 0.33 kg
- Product Width: 3.7 in, 94 mm
- Product Depth: 2.7 in, 68 mm
- Housing Material: Plastic
- UPC: 085267815109
- Country of Origin: HU
- Category: Zone Valve Replacement Heads
