Description

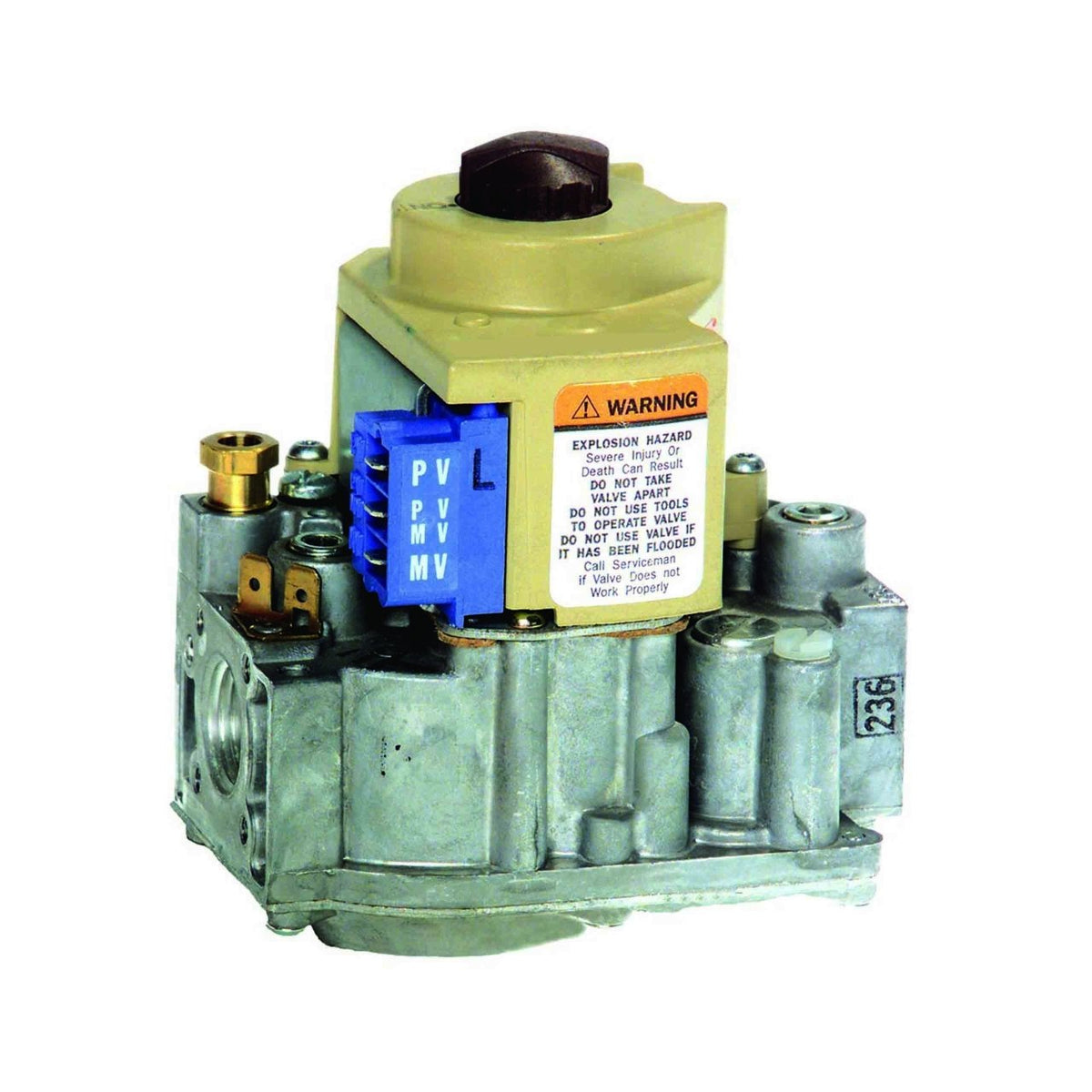

Intermittent pilot gas valve with standard opening, 1/2 x 1/2 connections and regulator set at 3.5 in WC; includes conversion kit, reducer bushing and straight flange.
Features
- ON-OFF Lighting Sequence
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8204M1091/U
- Application: Single-Stage Standard Opening Valve for Intermittent Pilot
- Ignition Type: Intermittent Pilot
- Type of Fuel: Natural Gas, LP with included conversion kit
- Regulator: Standard
- Capacity (Max): 200,000 BTU/h
- Capacity (Min): 20,000 BTU/h
- Operating Voltage: 24 V AC
- Inlet Connection Size: 1/2 in
- Outlet Connection Size: 1/2 in
- Regulation Type: Standard Opening
- Pressure Rating: 1/2 psi, 3.5 kPa
- Operating Pressure (Max): 1/2 psi
- For Use With: S86F Control Modules, S86H Control Modules, S860D Control Modules, S8600F Control Modules, S8600H Control Modules, S8610 Control Modules, S90A Control Modules, S90B Control Modules
- Includes: Natural to LP Conversion Kit, 1/2 in x 3/8 in Reducer Bushing, 3/4 in Straight Flange
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): -40 °F, -40 °C
- Approvals and Standards: UL Component Recognized MCCZ2.MH5323, CSA International: 112395, Australian Gas Association: 4752
- Color: Gray, Orange
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Pilot Gas Outlet: Compression Fitting for 1/4 in OD Tubing
- Product Height: 4.94 in, 125 mm
- Product Width: 4.13 in, 104 mm
- UPC: 085267113151
- Country of Origin: MX
- Category: Gas Valves
