Description

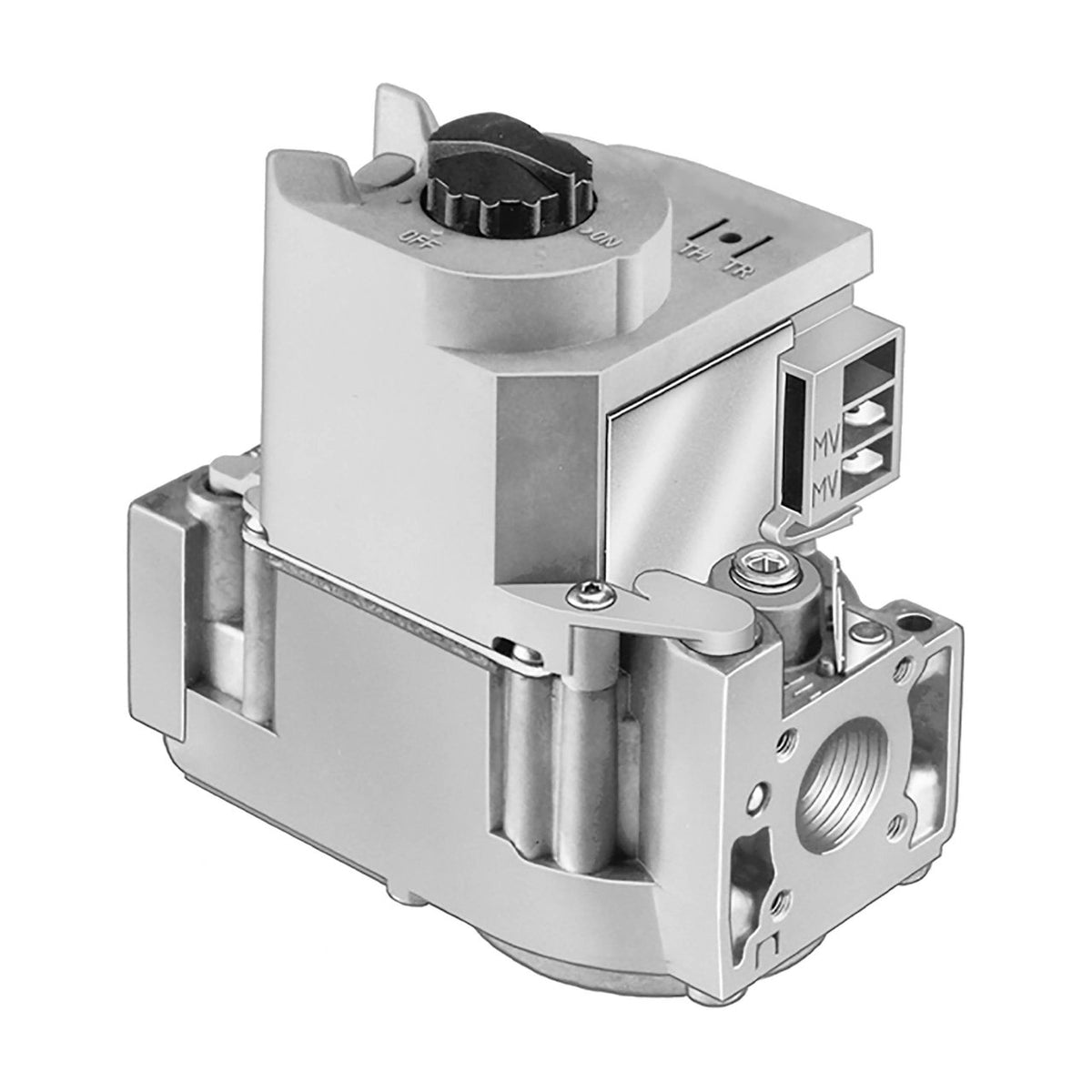

Direct ignition gas valve with step opening, 1/2 x 1/2 connections, regulator set at 3.5 in WC full rate and a fixed 1.2 in WC step rate.
Features
- ON-OFF Lighting Sequence
Specifications
- Brand: Resideo (Honeywell Home)
- Manufacturer Part #: VR8205C1024/U
- Application: Single-Stage Step Opening for Direct Burner Ignition
- Ignition Type: Direct Burner Ignition
- Type of Fuel: Natural Gas
- Operating Voltage: 24 V AC
- Inlet Connection Size: 1/2 in
- Outlet Connection Size: 1/2 in
- Regulation Type: Step Opening
- Operating Pressure (Max): 1/2 psi, 3.5 kPa
- For Use With: S89C, S89E, S89F, S87 Series 5 and later
- Valve Body Pattern: Straight Through
- Ambient Operating Temperature (Max): 175 °F, 79 °C
- Ambient Operating Temperature (Min): 0 °F, -18 °C
- Approvals and Standards: UL Component Recognized, CSA International: 112395
- Color: Black, Gray
- Mounting Type: 0° to 90° in any direction from the upright position of the gas control knob, including vertically
- Operating Frequency: 60 Hz
- Product Height: 4.94 in, 125 mm
- Product Width: 4.13 in, 104 mm
- UPC: 085267113373
- Country of Origin: MX
- Category: Gas Valves
