| Frequency | 50 Hz,60 Hz |
| Electrical Ratings | 20 to 30 Vac or 750 mV |
| Operating Humidity | 5 to 90% RH, non-condensing |
| Mounting | Vertical |
| Application | 1 Heat/1 Cool Conventional Systems and Heat Pumps with No Auxiliary Heat |
| Dimensions | 4 11/16 in. High X 2 7/8 in. Wide X 1 1/8 in. Deep |
| Hazmat Information | NOT RESTRICTED - SPECIAL PROVISION A123 |
| Stages | 1 Heat/1 Cool |
| Switch Positions (System) | HEAT-OFF-COOL |
| Switch Positions (Fan) | AUTO-ON |
| Power Method | Dual Powered: Battery or Hardwire |
| Color | Premier White® |
| Terminal Designations | R, RC, C, W, Y, G, O, B |
| Display Size | 1.32 sq in. |
| Changeover | Manual |
| Setting Temperature Range (F) | Heat: 40 F to 90 F; Cool: 50 F to 99 F |
| Cycles per Hour | Heating 2 - 6 CPH; Cooling 2 -6 CPH |
| Cool Current | 0.02 A to 1.0 A running |
| Heat Current | 0.02 A to 1.0 A running |
Description

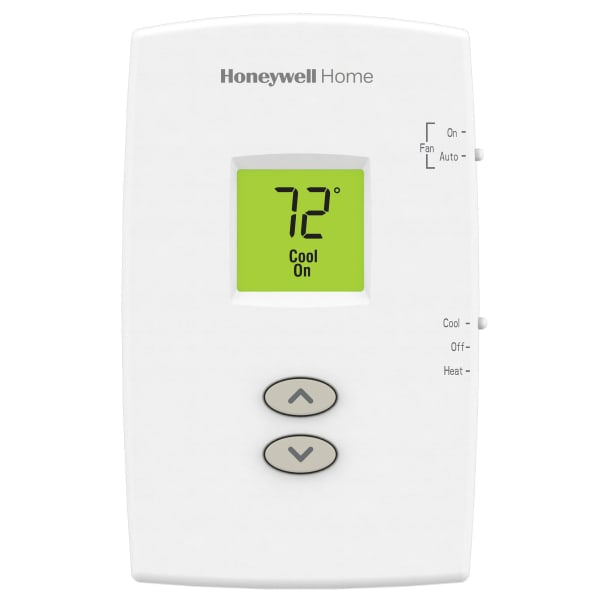

The Resideo TH1110DV1009/U is a PRO 1000 wall thermostat. The case is the vertical version — vertical and the other orientation are electrically the same thermostat in a different body, so pick the one that matches the footprint and the wire opening already in the wall.
Non-programmable. One setpoint, changed by hand. That is the right choice for a rental, a shop, a space on a fixed occupancy, or any job where a schedule would just get overridden. Fewer things to explain at handover, and nothing to reprogram after a power event.
Where it sits in the range. Resideo builds these in tiers, and the tier number is the amount of control you get, not the build quality. T1 and PRO 1000 are single-stage and non-programmable — set it and leave it. T3 and PRO 3000 add a digital display and more staging. T4 and PRO 2000 add scheduling. T6 covers multi-stage and heat pump work, with a Smart version that adds Wi-Fi. T10 Pro is the top of the line, with RedLINK and remote room sensing. PRO 1000, PRO 2000 and PRO 3000 are the older names for the same tiers as T1, T4 and T3 — if you are matching what came out of the wall, the PRO number and the T number can be the same generation of product under two labels.
Before you order. Match the thermostat to the equipment, not to the room: count the heating and cooling stages the system actually has, and confirm whether it is a heat pump or a conventional system, because the two wire differently at the thermostat. A unit rated for more stages than you have will work; one rated for fewer will not run the equipment you own. If you are replacing a Honeywell Home unit, the part number carries over — Honeywell Home thermostats are made by Resideo, and the legacy numbering is the same.
Related: Non-programmable thermostats · Programmable thermostats · Smart thermostats · All Resideo
- Brand: Resideo
- Manufacturer Part #: TH1110DV1009/U
- UPC: 085267799317
- Category: Thermostats
- Shipping Weight: 0.5 lb
