| Connection Type | All H |
| Material | PVC DWV |
| Size | 4" x 4" x 2" |
| Type | Elbow - 90° with Low Heel Inlet - All H |
Description

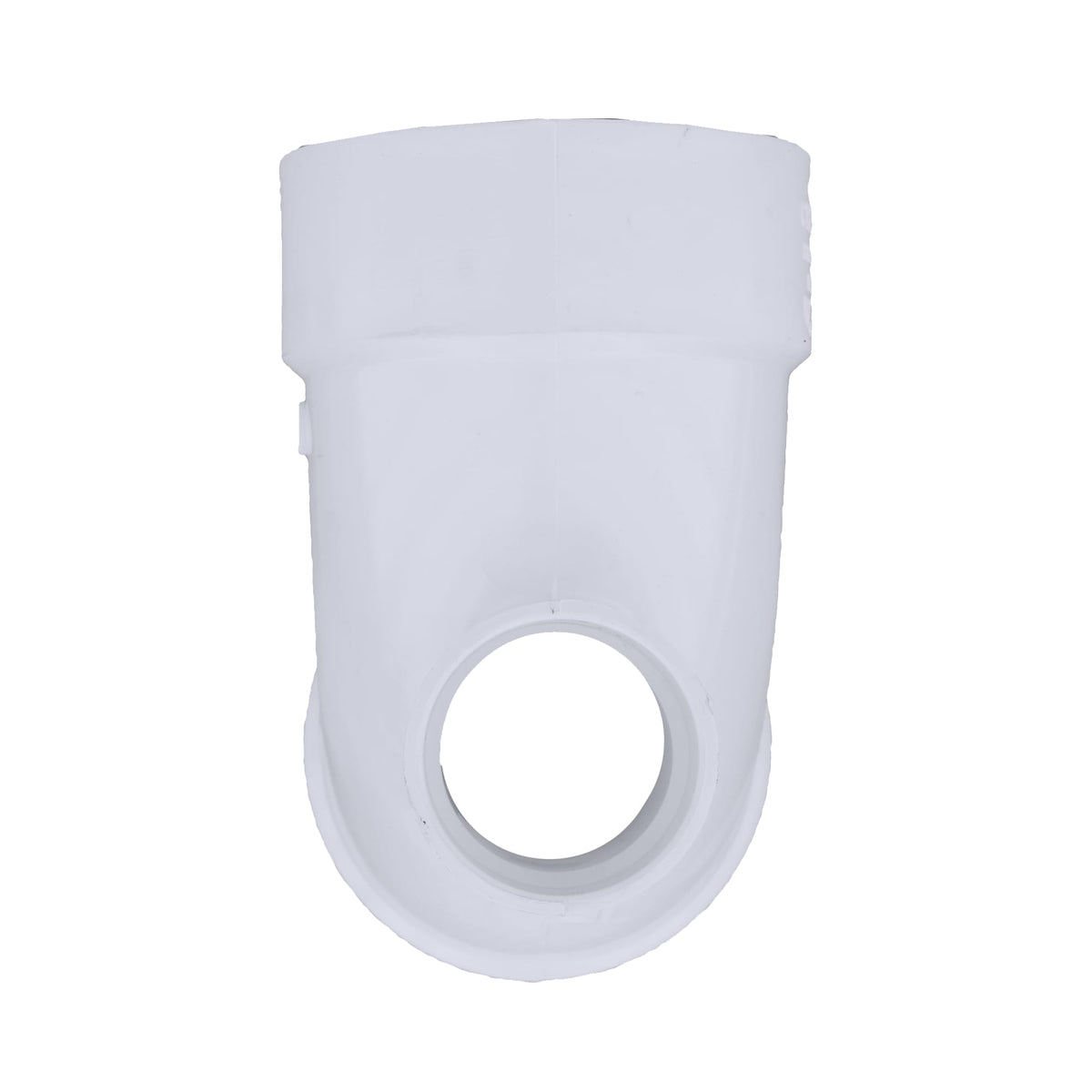

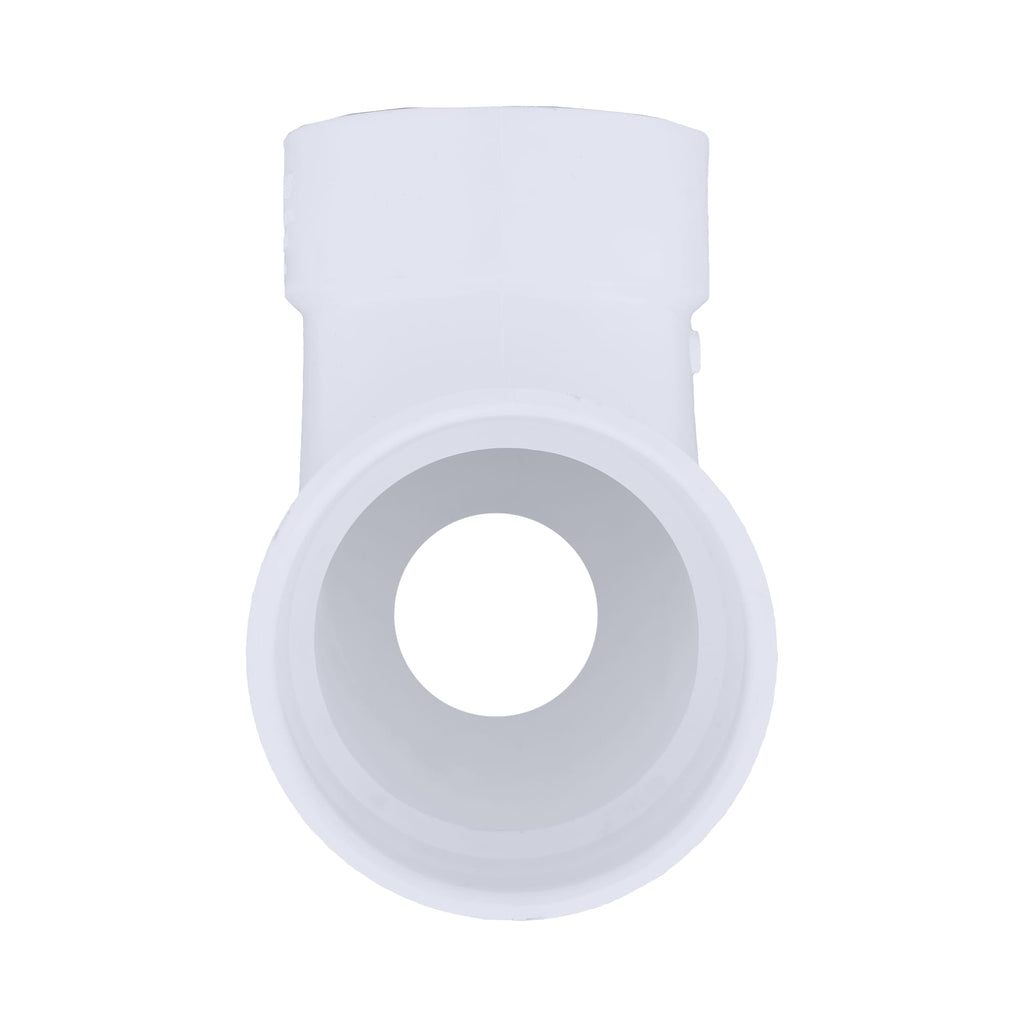

Charlotte Pipe PVC-00303-1000 is a 4" x 4" x 2" PVC DWV 90° elbow with low heel inlet, All H (H = hub (socket that takes the pipe)).
A 90° elbow turns the line a quarter turn.
Charlotte PVC DWV fittings are made to ASTM D2665 with drainage patterns to ASTM D3311, and listed to NSF 14. They are for non-pressure sanitary drain, waste and vent, sewer and storm drainage at up to 140°F, joined to Schedule 40 PVC or cellular core pipe with primer and PVC solvent cement. DWV fittings have no pressure rating and do not belong on a water supply line.
Specifications
- Brand: Charlotte Pipe
- Manufacturer Part #: PVC-00303-1000
- System: PVC DWV
- Size: 4" x 4" x 2"
- Type: 90° Elbow with Low Heel Inlet
- Connections: All H
- Material: PVC, Schedule 40 DWV
- Standards: ASTM D2665, D3311, NSF 14
- Temperature: 140°F max, non-pressure
- Joining: Primer (ASTM F656) and PVC solvent cement (ASTM D2564)
- UPC: 611942033775
- Category: PVC DWV Fittings
