| Connection Type | H x Spigot |
| Material | PVC DWV |
| Size | 6" |
| Type | Elbow - 22-1/2° Street - H x Spigot |
Description

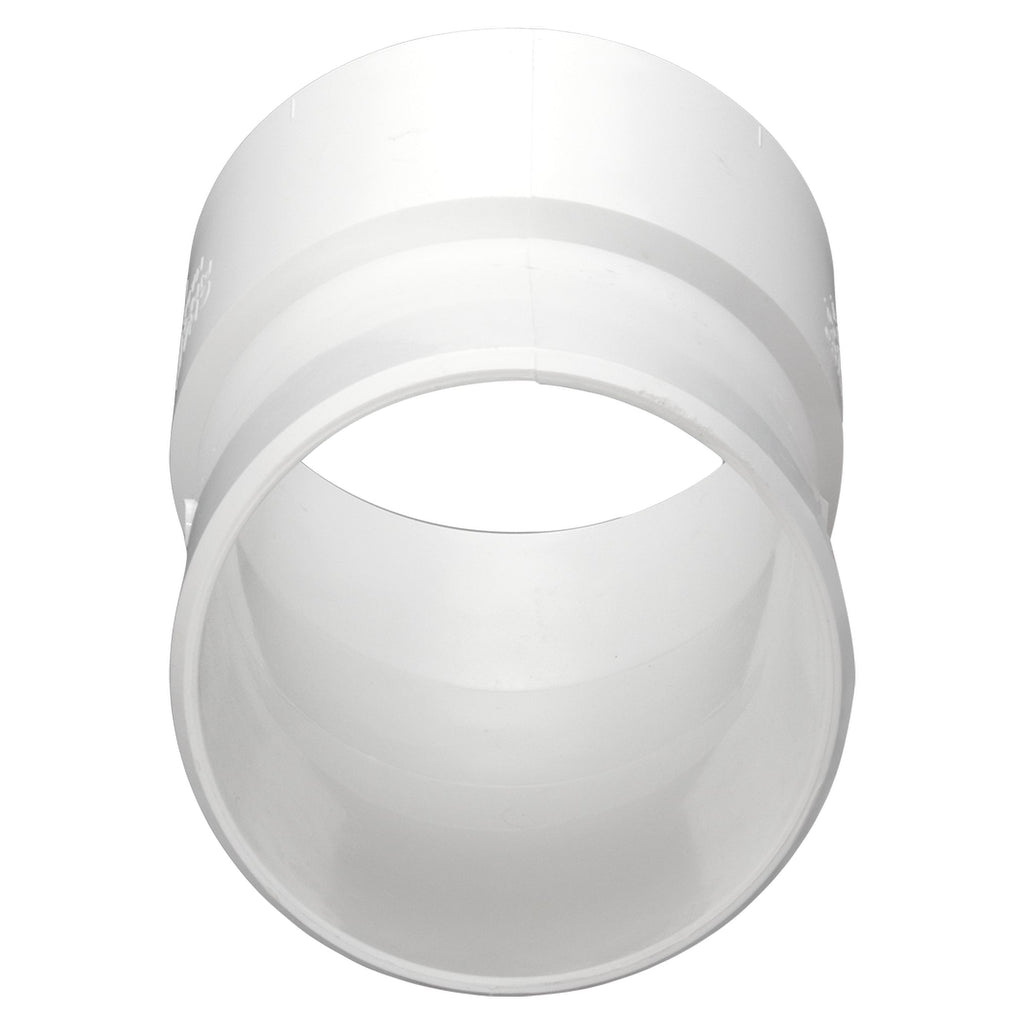

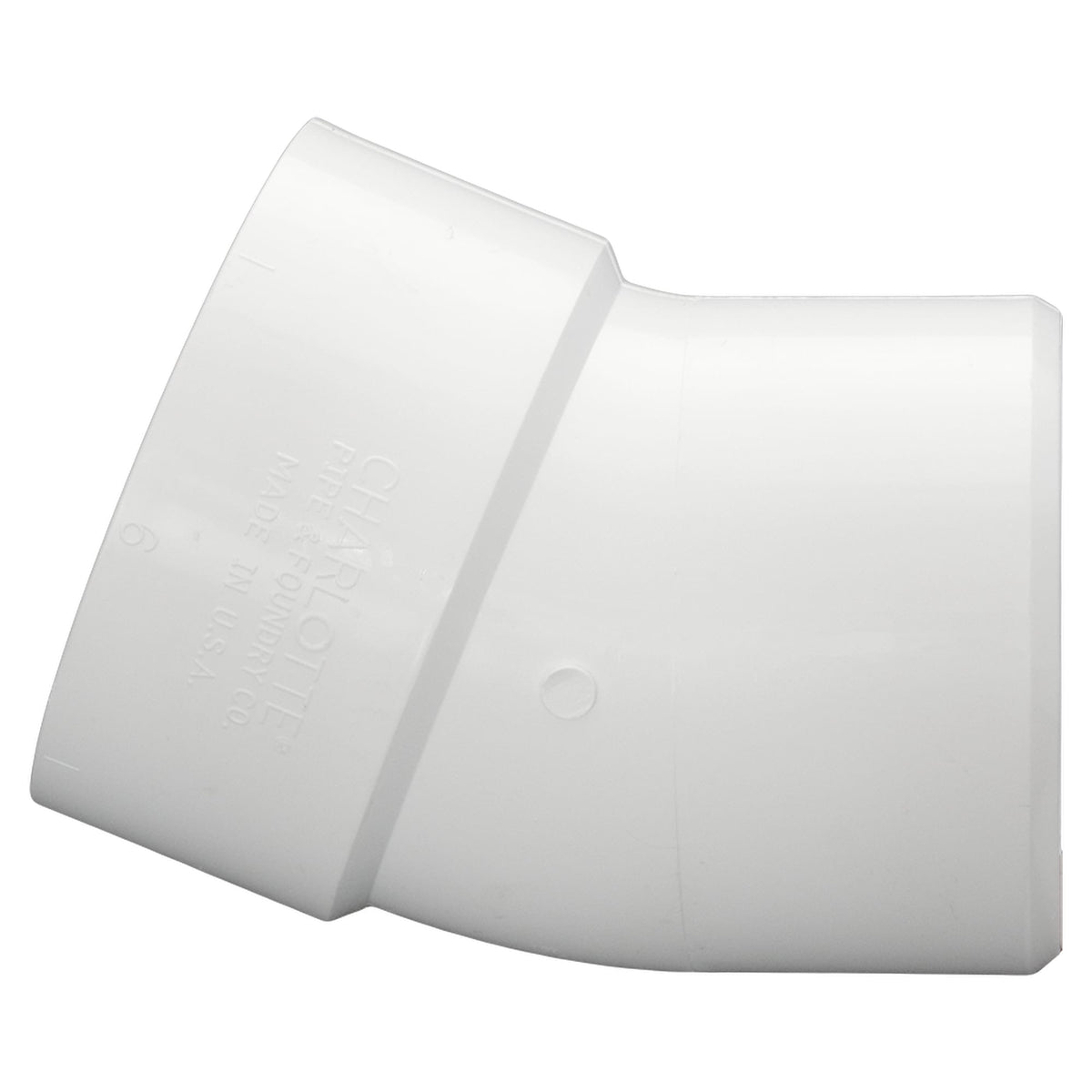

Charlotte Pipe PVC-00326-1400 is a 6" PVC DWV 22-1/2° street elbow, H x Spigot (H = hub (socket that takes the pipe); Spigot = spigot (pipe-size end that fits into a hub or socket)).
A street elbow has one fitting-size end, so it goes straight into another fitting without a separate piece of tube, which makes the turn tighter and saves a joint.
Charlotte PVC DWV fittings are made to ASTM D2665 with drainage patterns to ASTM D3311, and listed to NSF 14. They are for non-pressure sanitary drain, waste and vent, sewer and storm drainage at up to 140°F, joined to Schedule 40 PVC or cellular core pipe with primer and PVC solvent cement. DWV fittings have no pressure rating and do not belong on a water supply line.
Specifications
- Brand: Charlotte Pipe
- Manufacturer Part #: PVC-00326-1400
- System: PVC DWV
- Size: 6"
- Type: 22-1/2° Street Elbow
- Connections: H x Spigot
- Material: PVC, Schedule 40 DWV
- Standards: ASTM D2665, D3311, NSF 14
- Temperature: 140°F max, non-pressure
- Joining: Primer (ASTM F656) and PVC solvent cement (ASTM D2564)
- UPC: 611942034253
- Category: PVC DWV Fittings
