| Finish/Color | White Shades |
| Finish Name | White |
| Sink Size (Front - Back) | Under 15" Front to Back |
| Sink Size (Left - Right) | 19" - 20" Wide |
| Faucet Hole Center | No holes |
| Number of Faucet Holes | 0 |
| Commercial or Residential | Primarily Residential |
| ADA Compliant | Yes |
| Type | Under Counter Sink |
| Size | 19-3/4" x 13-3/4" |
Description

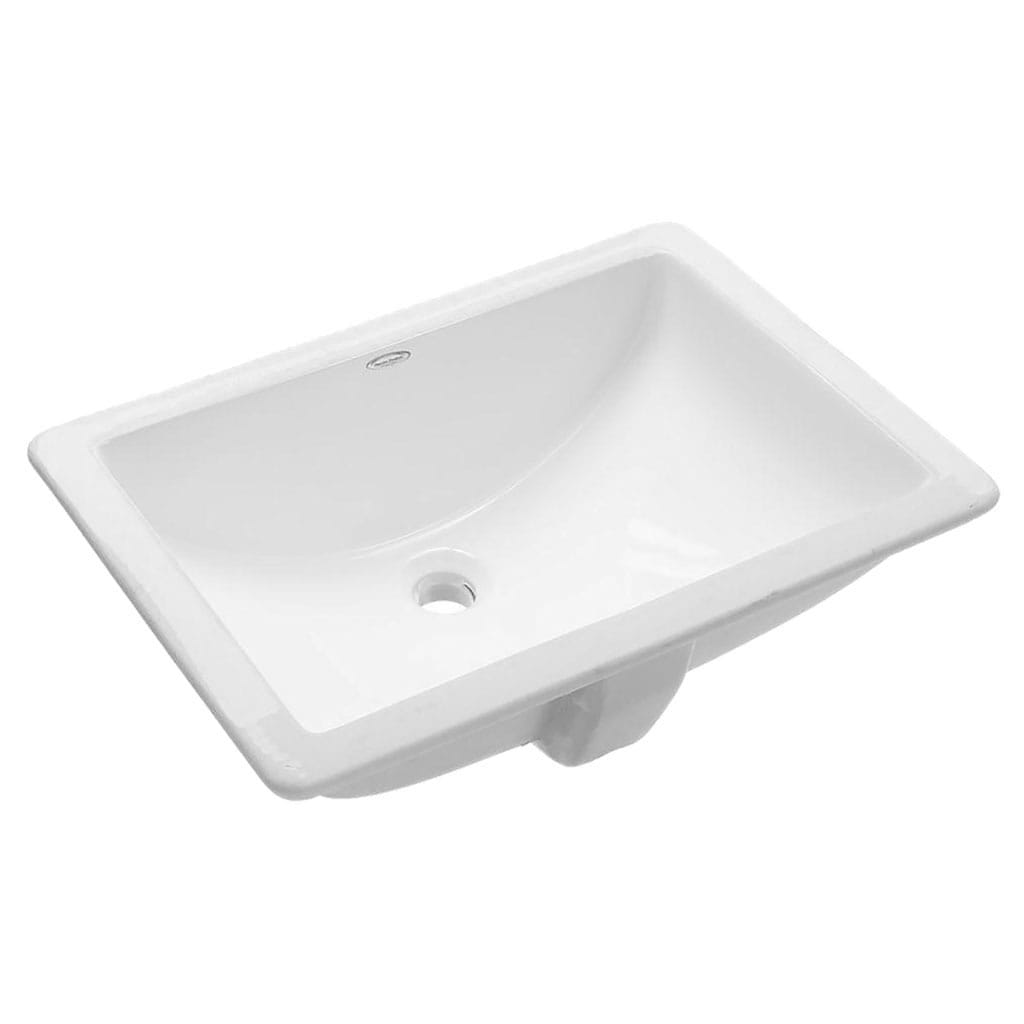

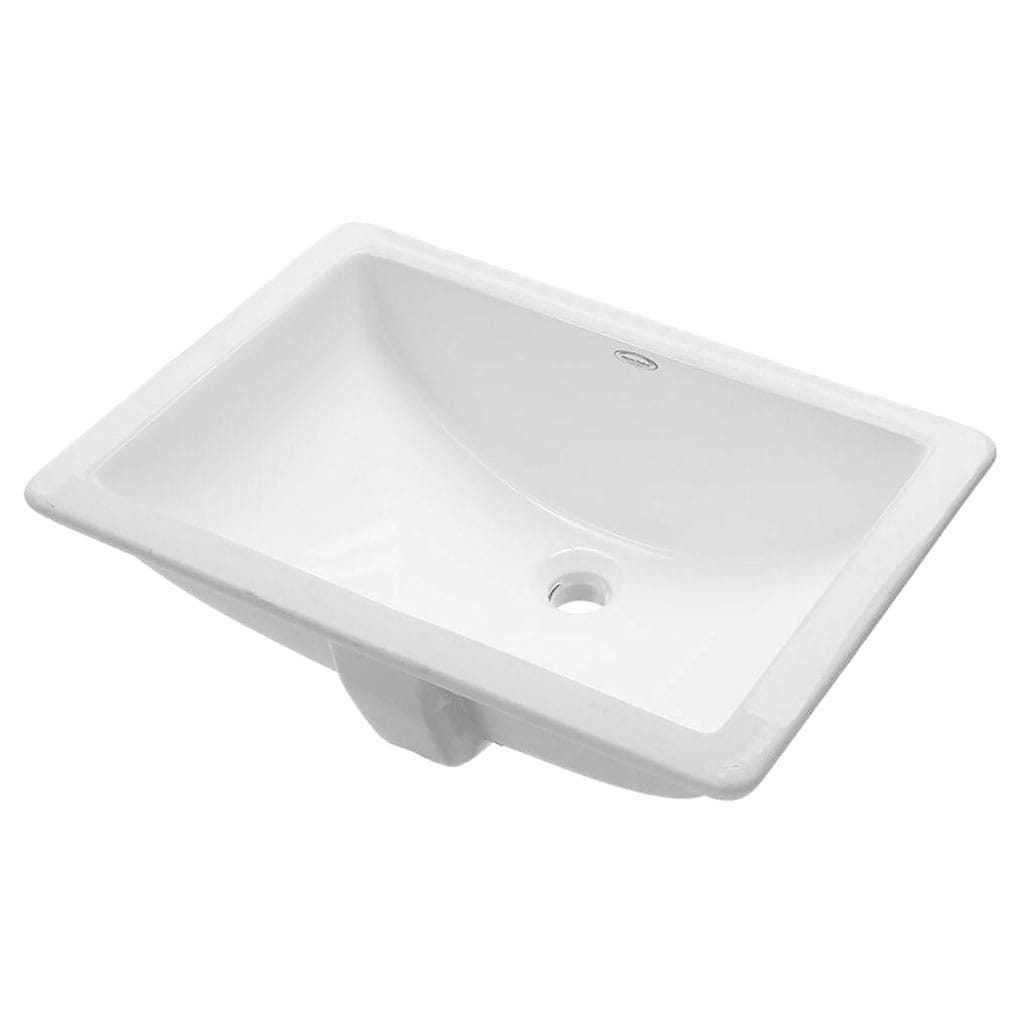

American Standard 0614300.020 is a Studio® undercounter bathroom sink in White, a rectangular vitreous china sink with a unique curved basin and a glazed underside.
The sink has an unglazed rim, a front overflow and no faucet holes, and it is supplied with an undercounter mounting kit and template. Listed nominal dimensions are 21-1/4 in x 15-1/4 in, with a bowl of 18 in wide, 12 in front to back and 6-7/16 in deep. It is made from high-gloss, stain-resistant vitreous china.
Because there are no faucet holes, the faucet must mount on the countertop or wall, so plan for that before ordering. Use the supplied template to check the countertop cutout and confirm the counter is suited to undermount installation. Faucet and drain are ordered separately.
Specifications
- Brand: American Standard
- Manufacturer Part #: 0614300.020
- Finish: White
- Faucet Hole Center: No holes
- Commercial or Residential: Primarily Residential
- ADA Compliant: Yes
- Type: Under Counter Sink
- UPC: 033056707203
- Category: Undermount Bathroom Sinks
Documents
- Specification Sheet (PDF)
