| Commercial or Residential | Primarily Commercial |
| Finish/Color | White Shades |
| Finish Name | White |
| Gallons per Flush | 1.28 - 1.6 gpf |
| Rough-In Dimension | 10" or 12" |
| Toilet Bowl Shape | Elongated |
| Toilet Height | Children's Height |
| WaterSense | Yes |
Description

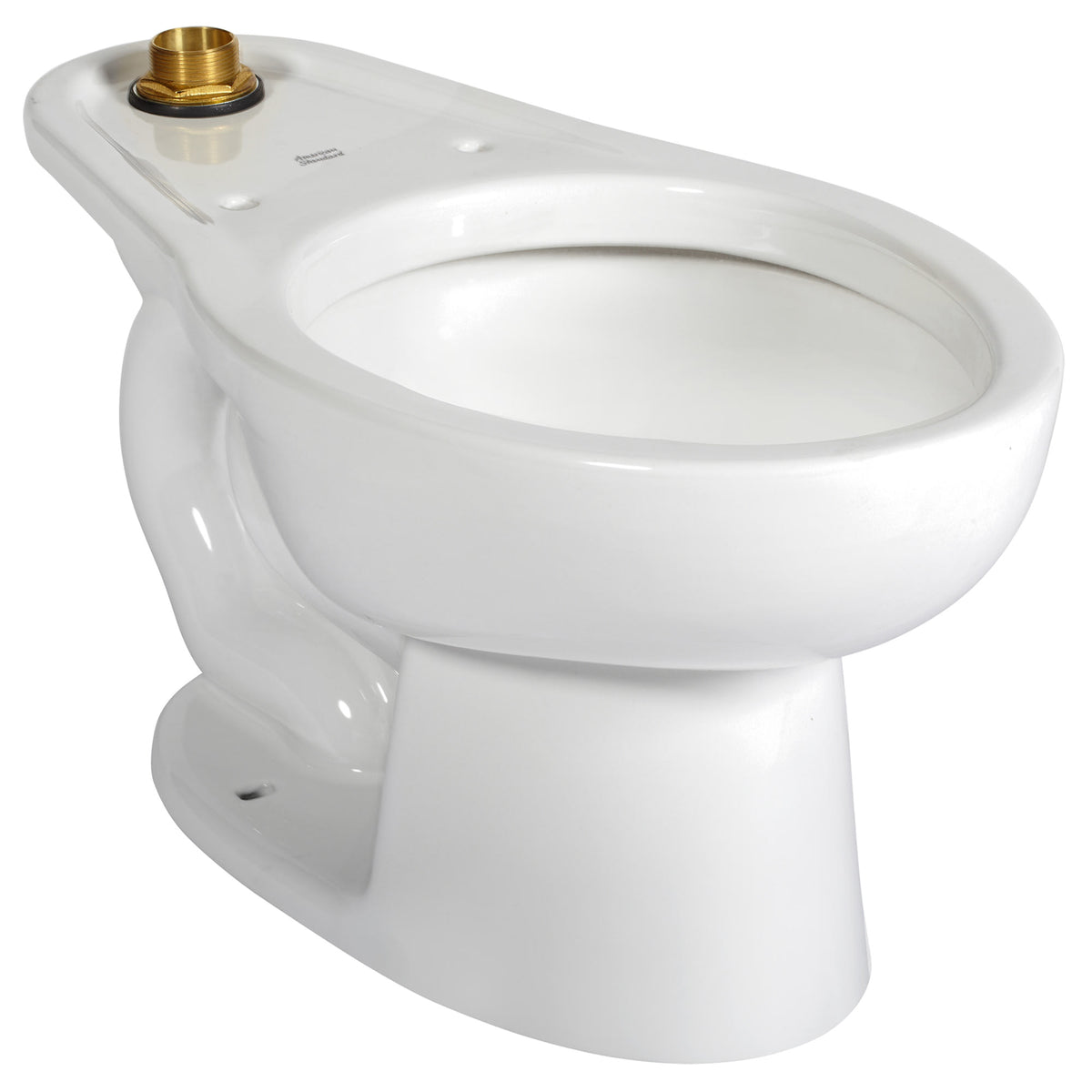

American Standard 2599001.020 is a Madera Youth floor-mount elongated flushometer toilet bowl in White, supplied less seat, with a 14-inch rim height.
The bowl operates in the range of 1.28 to 1.6 gpf and has a 2-1/8 in. fully glazed trapway, a condensation channel and powerful direct-fed siphon jet action. The 14 in. (356 mm) rim height is listed as ADA and TAS compliant for elementary school children, 5 to 8 years old.
This is a top spud bowl, so it needs a flushometer valve that is ordered separately, and the seat is not included. Confirm the 10 in. or 12 in. rough-in against the finished wall and choose a compatible elongated seat.
Specifications
- Brand: American Standard
- Manufacturer Part #: 2599001.020
- Commercial or Residential: Primarily Commercial
- Finish: White
- Gallons per Flush: 1.28 - 1.6 gpf
- Rough-In Dimension: 10" or 12"
- Toilet Bowl Shape: Elongated
- Toilet Height: Children's Height
- WaterSense: Yes
- UPC: 791556016484
- Category: Toilet Bowls Only
Documents
- Installation Instructions (PDF)
- Specification Sheet (PDF)
See also: toilet bowls only, all American Standard products.
