| ADA Compliant | Yes |
| Commercial or Residential | Primarily Commercial |
| Finish/Color | White Shades |
| Finish Name | White |
| Rough-In Dimension | Floor-mount Back Outlet |
| Toilet Bowl Shape | Elongated |
| Toilet Height | Chair Height |
| WaterSense | Yes |
Description

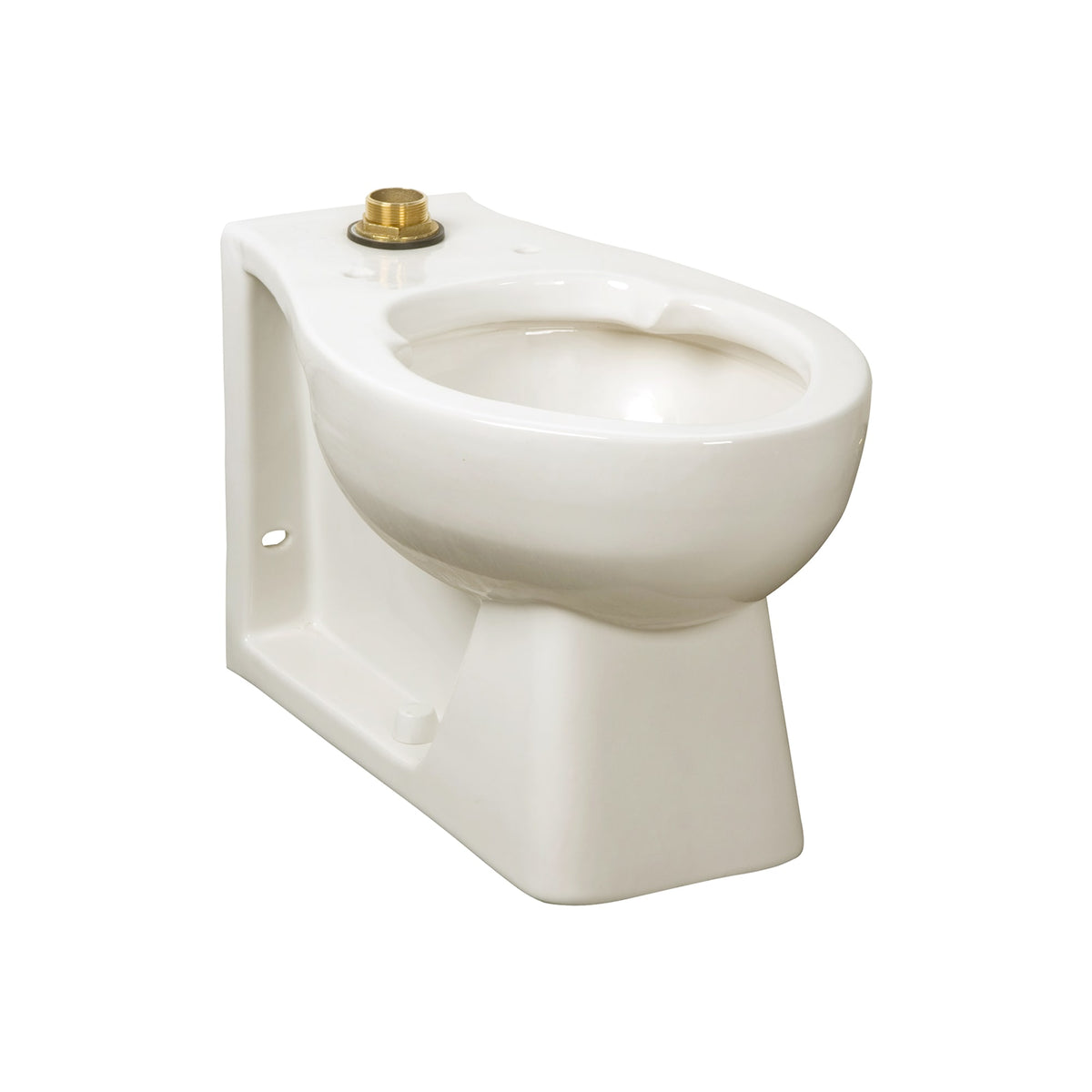

American Standard 3312001.020 is a Huron® floor-mount, back outlet, elongated flushometer toilet bowl in White, supplied less seat.
The bowl is 24-1/2 in. (622 mm) from the wall to the front of the bowl, with a 2 in. (51 mm) fully glazed trapway, a 1-1/2 in. (38 mm) inlet spud and bedpan lugs. It includes four color-matched bolt caps, and the EverClean® antimicrobial surface inhibits the growth of stain and odor causing bacteria, mold and mildew.
Because the outlet is at the back, confirm the waste location and rough-in before ordering. A flushometer valve and a toilet seat are ordered separately, and the bowl is listed as ADA compliant in a chair-height configuration.
Specifications
- Brand: American Standard
- Manufacturer Part #: 3312001.020
- ADA Compliant: Yes
- Commercial or Residential: Primarily Commercial
- Finish: White
- Rough-In Dimension: Floor-mount Back Outlet
- Toilet Bowl Shape: Elongated
- Toilet Height: Chair Height
- WaterSense: Yes
- UPC: 033056834695
- Category: Toilet Bowls Only
Documents
- Installation Instructions (PDF)
- Specification Sheet (PDF)
See also: toilet bowls only, all American Standard products.
