| Commercial or Residential | Primarily Commercial |
| Finish/Color | White Shades |
| Finish Name | White |
| Gallons per Flush | 0.125 gpf |
| Type | Top Spud Urinal |
| WaterSense | Yes |
Description

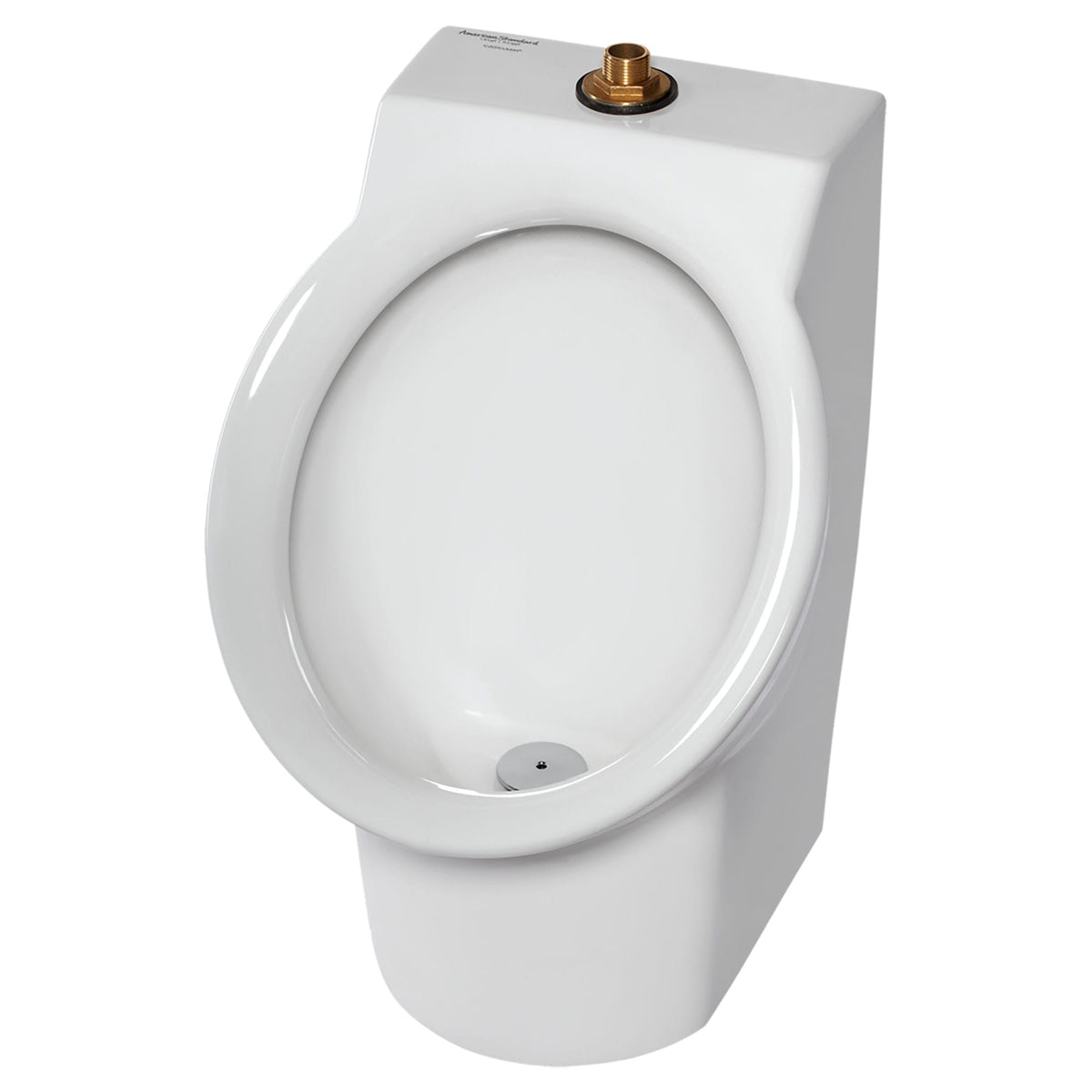

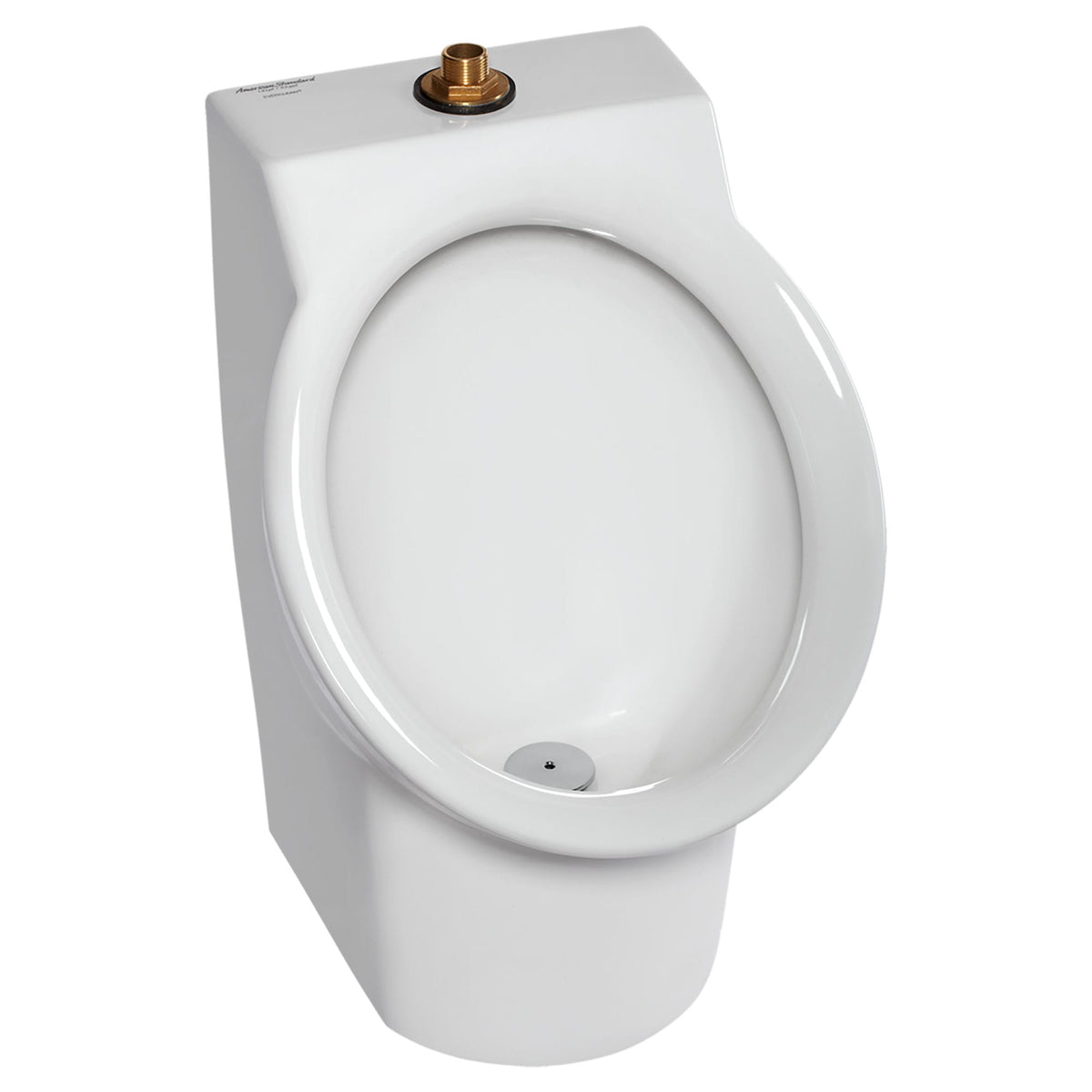

American Standard 6042001EC.020 is a Decorum® high efficiency top spud urinal in White, rated at 0.125 gpf (0.47 Lpf), in a sleek, compact vitreous china design.
It has a 3/4 in. (19 mm) inlet spud with a 2 in. (51 mm) threaded outlet connection, a deep sump to help reduce splashing, and powerful washdown action. Two wall hangers and a chrome plated non-metallic strainer are included, and the EverClean® antimicrobial surface inhibits the growth of stain and odor causing bacteria, mold and mildew.
This is the fixture only. Order a compatible flushometer valve separately, and check that it is made for a 3/4 in. top spud and for the 0.125 gpf flush volume before ordering.
Specifications
- Brand: American Standard
- Manufacturer Part #: 6042001EC.020
- Commercial or Residential: Primarily Commercial
- Finish: White
- Gallons per Flush: 0.125 gpf
- Type: Top Spud Urinal
- WaterSense: Yes
- UPC: 791556090507
- Category: Urinals
Documents
- Installation Instructions (PDF)
- Specification Sheet (PDF)
See also: urinals, all American Standard products.
