| Commercial or Residential | Primarily Commercial |
| Finish/Color | Polished Chrome |
| Finish Name | Chrome |
| Gallons per Flush | 0.125 gpf |
| Type | Touchless Urinal Flush Valve |
| WaterSense | Yes |
Description

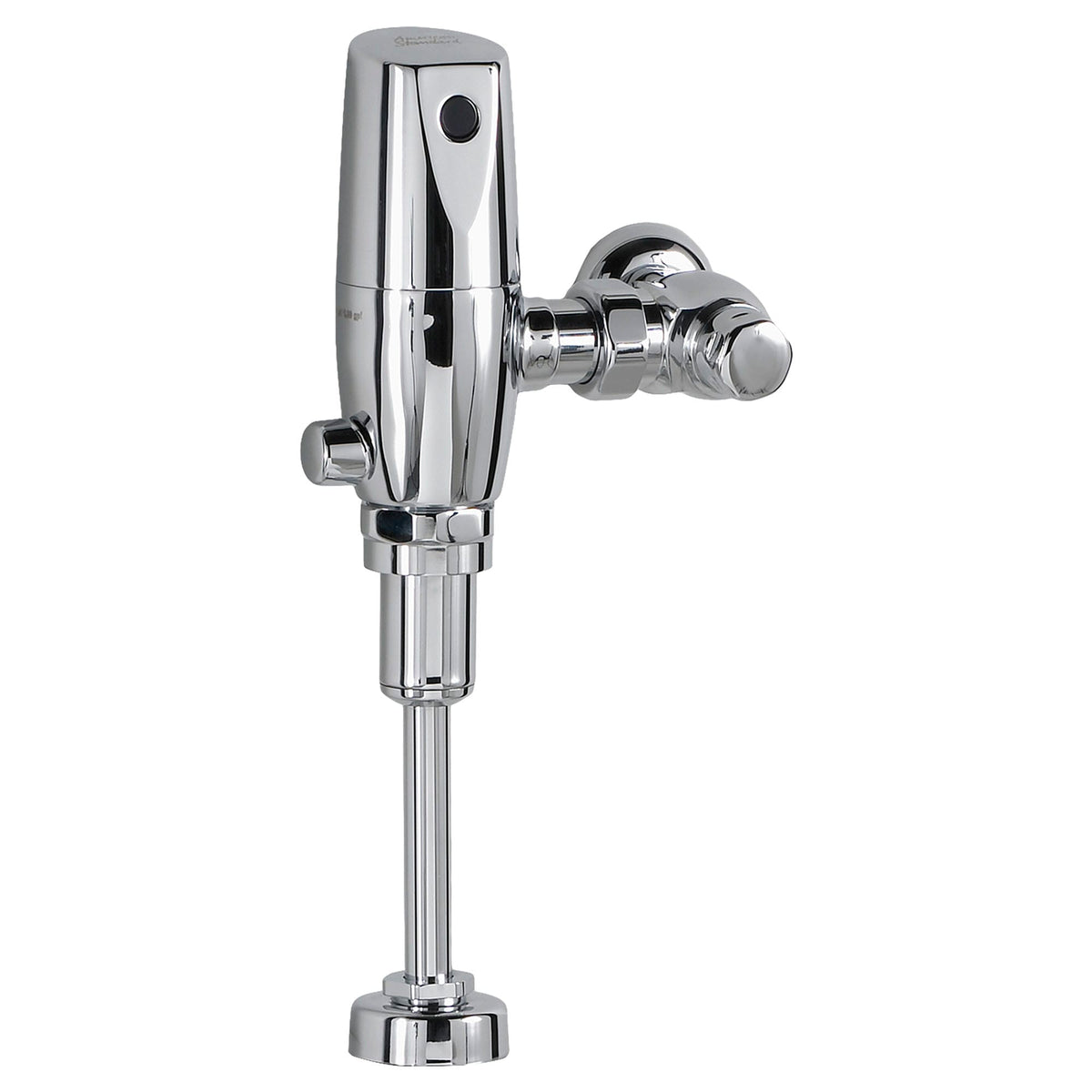

American Standard 6063013.002 is an Ultima Selectronic touchless piston-type urinal flush valve in Chrome, battery powered and rated at 0.125 gpf (0.5 Lpf).
The valve is for urinals with a 3/4 in. (19 mm) exposed top spud and has an 11-1/2 in. (292 mm) rough-in. A CR-P2 lithium battery is installed, a fully mechanical manual override can flush the valve without power, and the valve automatically closes upon loss of power or water pressure. A programmable proximity sensor allows adjustment and customization.
Confirm that the urinal has a 3/4 in. exposed top spud and is rated for 0.125 gpf, and plan access to the valve for sensor adjustment and battery replacement.
Specifications
- Brand: American Standard
- Manufacturer Part #: 6063013.002
- Commercial or Residential: Primarily Commercial
- Finish: Chrome
- Gallons per Flush: 0.125 gpf
- Type: Touchless Urinal Flush Valve
- WaterSense: Yes
- UPC: 012611439094
- Category: Urinal Flush Valves
Documents
- Installation Instructions (PDF)
- Specification Sheet (PDF)
