| Commercial or Residential | Primarily Commercial |
| Finish/Color | Polished Chrome |
| Finish Name | Chrome |
| Gallons per Flush | 1.1 gpf |
| WaterSense | Yes |
Description

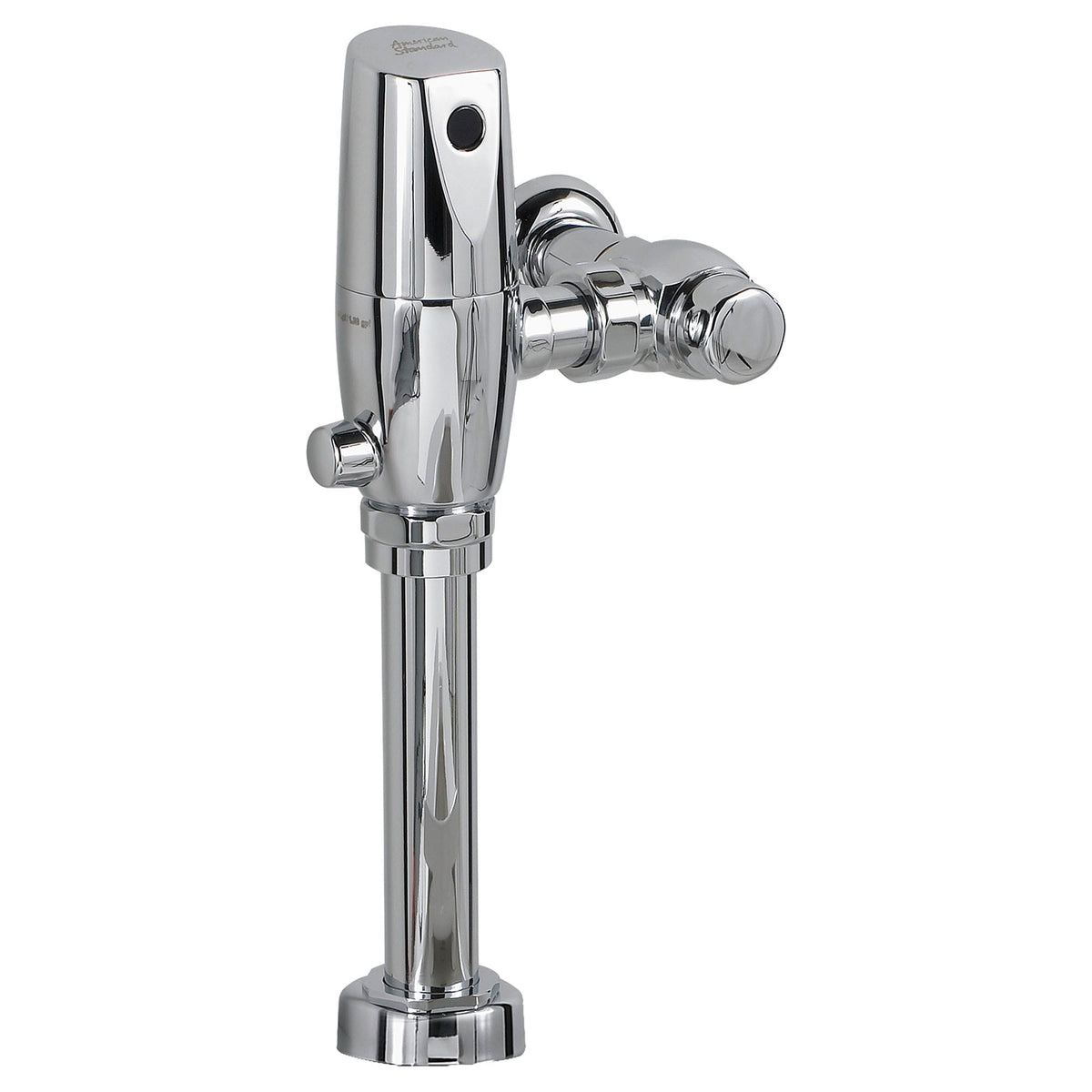

American Standard 6065111.002 is an Ultima Selectronic touchless piston-type toilet flush valve in Chrome, battery powered and rated at 1.1 gpf (4.2 Lpf).
It is made for flushometer bowls with a 1-1/2 in. (38 mm) exposed top spud and has an 11-1/2 in. (292 mm) rough-in. An 8-year CR-P2 lithium battery is installed, a fully mechanical manual override can operate without power, and the valve closes automatically upon loss of power or water pressure. It can meet ADA clearance requirements when installed under a grab bar mounted 36 in. above the floor to the top of the bar.
Confirm that the bowl has a 1-1/2 in. exposed top spud and is rated for a 1.1 gpf flush before ordering.
Specifications
- Brand: American Standard
- Manufacturer Part #: 6065111.002
- Commercial or Residential: Primarily Commercial
- Finish: Chrome
- Gallons per Flush: 1.1 gpf
- WaterSense: Yes
- UPC: 012611476938
- Category: Toilet Flush Valves
