| ADA Compliant | No |
| Basin Depth | 7.875" |
| Commercial or Residential | Primarily Residential |
| Drain Size | 3.5" |
| Faucet Hole Center | No holes |
| Finish/Color | Stainless Steel Tones |
| Finish Name | Lustrous Satin |
| Gauge | 18 |
| Height | 7.8750" |
| Installation Type | Undermount |
| Length | 20.50" |
| Material | Stainless Steel |
| Number of Bowls | 1 |
| Number of Faucet Holes | No Holes |
| Sink Basin Depth | 7" - 9" Basin Depth |
| Sink Size (Front - Back) | 16" - 18" Front to Back |
| Sink Size (Left - Right) | Under 20" Wide |
| Size | 20-1/2" x 16-1/2" x 7-7/8" |
| Type | Undermount Sink |
| Width | 16.50" |
Description

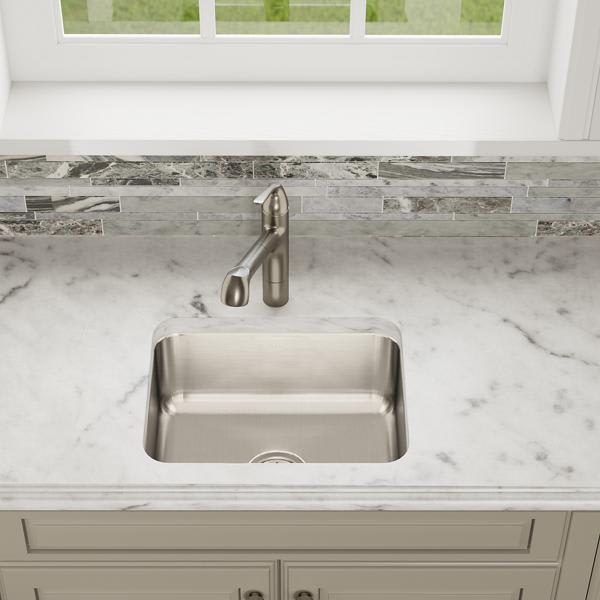

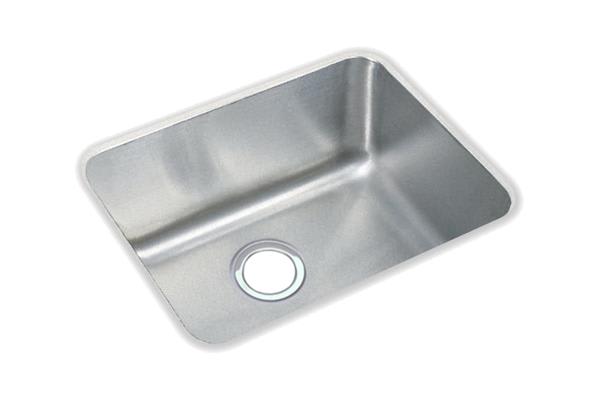

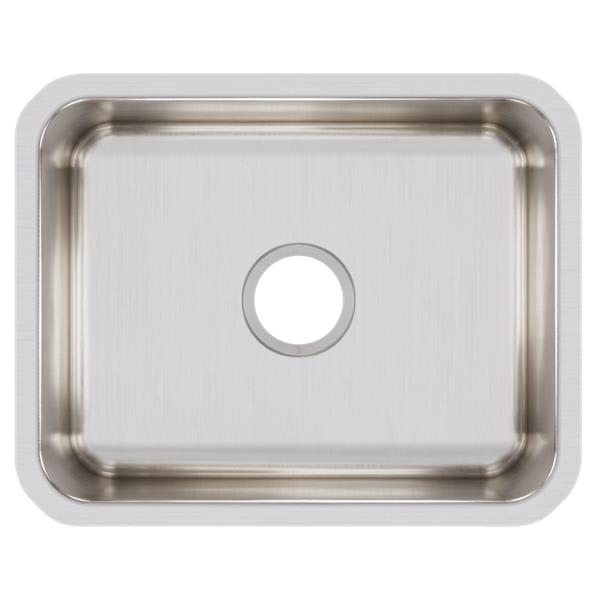

Elkay ELUH1814 is a Lustertone Classic stainless steel single-bowl undermount sink measuring 20-1/2" x 16-1/2" x 7-7/8".
This sink is 18 gauge, Type 304 stainless steel with a Lustrous Satin finish, sound-deadening pads and a 3-1/2" drain opening that works with standard garbage disposals if space allows. It has no faucet holes, so the faucet mounts in the countertop.
Because it mounts under the counter, confirm that your countertop material and cutout suit an undermount sink. Elkay lists a minimum cabinet size of 24", so check the base cabinet width before ordering. The sink is rated primarily residential and is not ADA compliant.
Specifications
- Brand: Elkay
- Manufacturer Part #: ELUH1814
- Collection: Lustertone Classic
- Finish: Lustrous Satin
- Material: Stainless Steel
- Gauge: 18
- Installation Type: Undermount
- Number of Bowls: 1
- Size: 20-1/2" x 16-1/2" x 7-7/8"
- Basin Depth: 7.875"
- Drain Size: 3.5"
- Number of Faucet Holes: No Holes
- ADA Compliant: No
- UPC: 094902447179
- Category: Undermount Sinks
Documents
- Care and Cleaning Guide (PDF)
- Installation Instructions (PDF)
- Specification Sheet (PDF)
- Warranty Information (PDF)
