GrundfosSKU: GRUN-93262074
Price:
$699.54
Stock:
Only 9 units left
Flow Rate Range 0 to 40 GPM
Material Cast Iron
Type Fixed Speed Circulators

Description

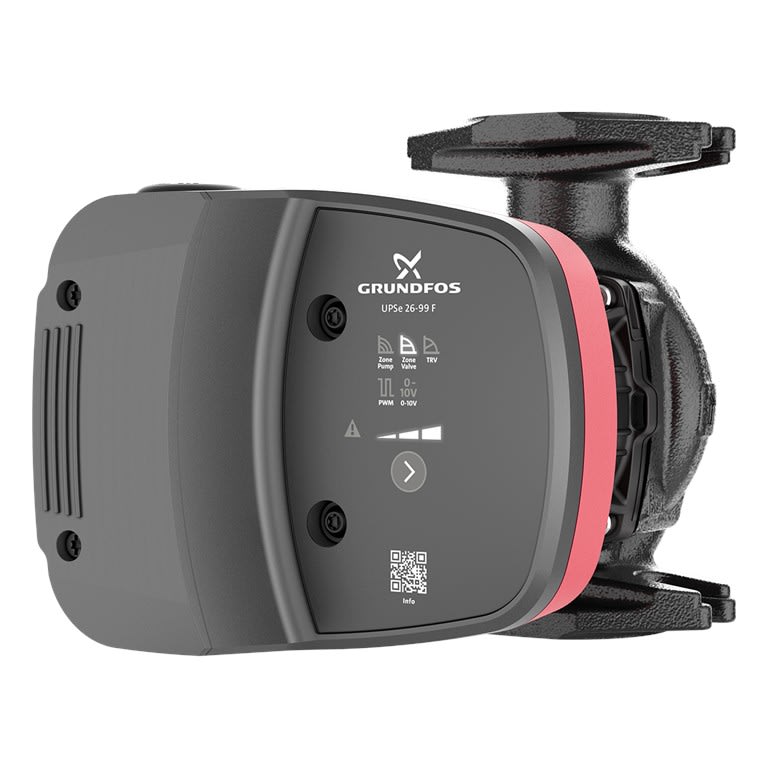

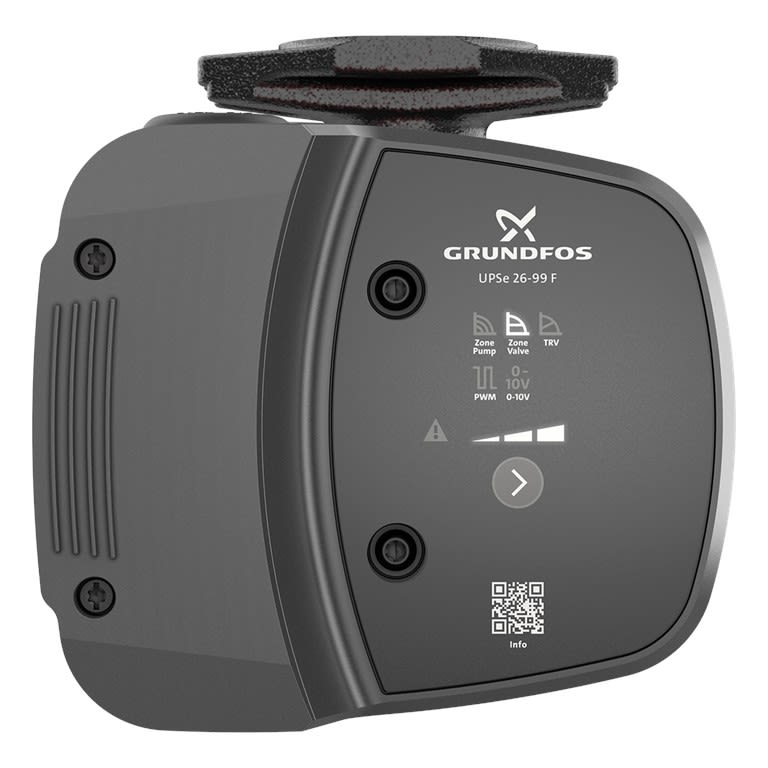

Grundfos 93262074 is a UPSe 26-99F high-efficiency ECM circulator with a cast iron body, for hydronic HVAC systems.

The UPSe 26 is designed for hydronic HVAC systems in large residential and light commercial buildings. It offers multiple control modes and accepts external 0-10 V and PWM input. The listing gives a maximum head of 33 and a maximum flow of 42 gpm.

Size a circulator from the system's required head and flow rather than from the pipe size, and compare the port-to-port length, connection style and electrical supply with the pump being replaced. Cast iron bodies are intended for closed hydronic loops rather than open potable water systems.

Specifications

  • Brand: Grundfos
  • Manufacturer Part #: 93262074
  • Collection: UPSe 26
  • Material: Cast Iron

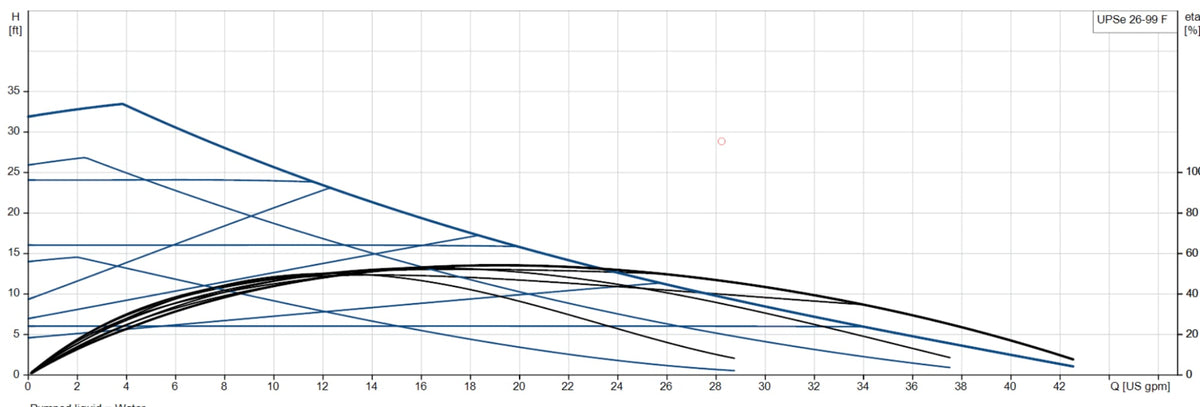

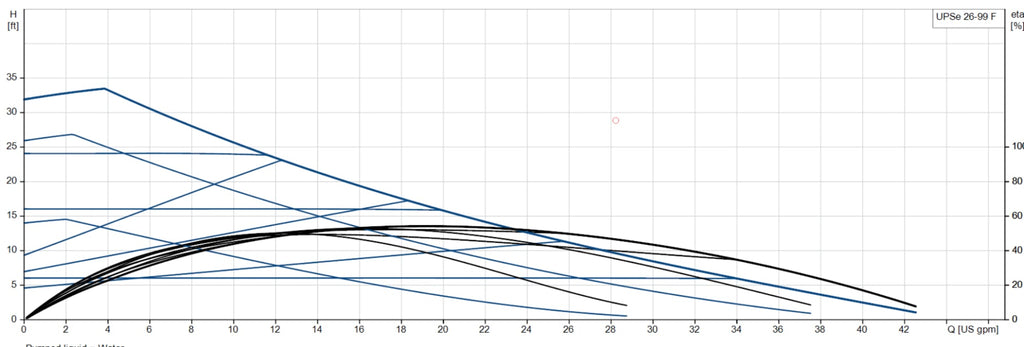

  • Maximum Head: 33
  • Maximum Flow: 42 gpm
  • Category: Variable Speed Circulators

Documents

See also: variable speed circulators, all Grundfos products.
