| Connection Type | Press |
| Size | 3/4" |
Description

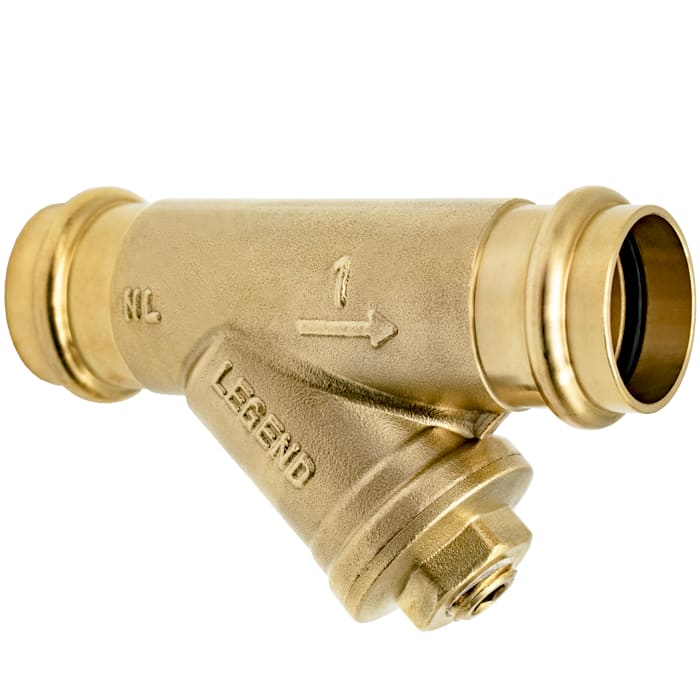

Legend Valve 105-704PNL is a 3/4" press x press Y-strainer in no lead forged brass, part of the LegendPress line.
A Y-strainer catches debris in the line with a screen so it does not reach valves, pumps and other equipment downstream. This one has press connections and a no lead forged brass body.
Install it with the flow in the direction marked on the body, and leave clearance to remove the screen cap for periodic cleaning. Confirm that the 3/4" press connection suits your press system and check the specification sheet for the pressure rating.
Specifications
- Brand: Legend Valve
- Manufacturer Part #: 105-704PNL
- Collection: LegendPress
- Connection Type: Press
- Size: 3/4"
- UPC: 662545138411
- Category: Y-Strainers
Documents
- Specification Sheet (PDF)
