| Connection Type | FIP |
| Size | 1-1/4" |
| Switch | Wide angle float |
| Type | Grinder Pumps |
| Volts | 208/230 |
Description

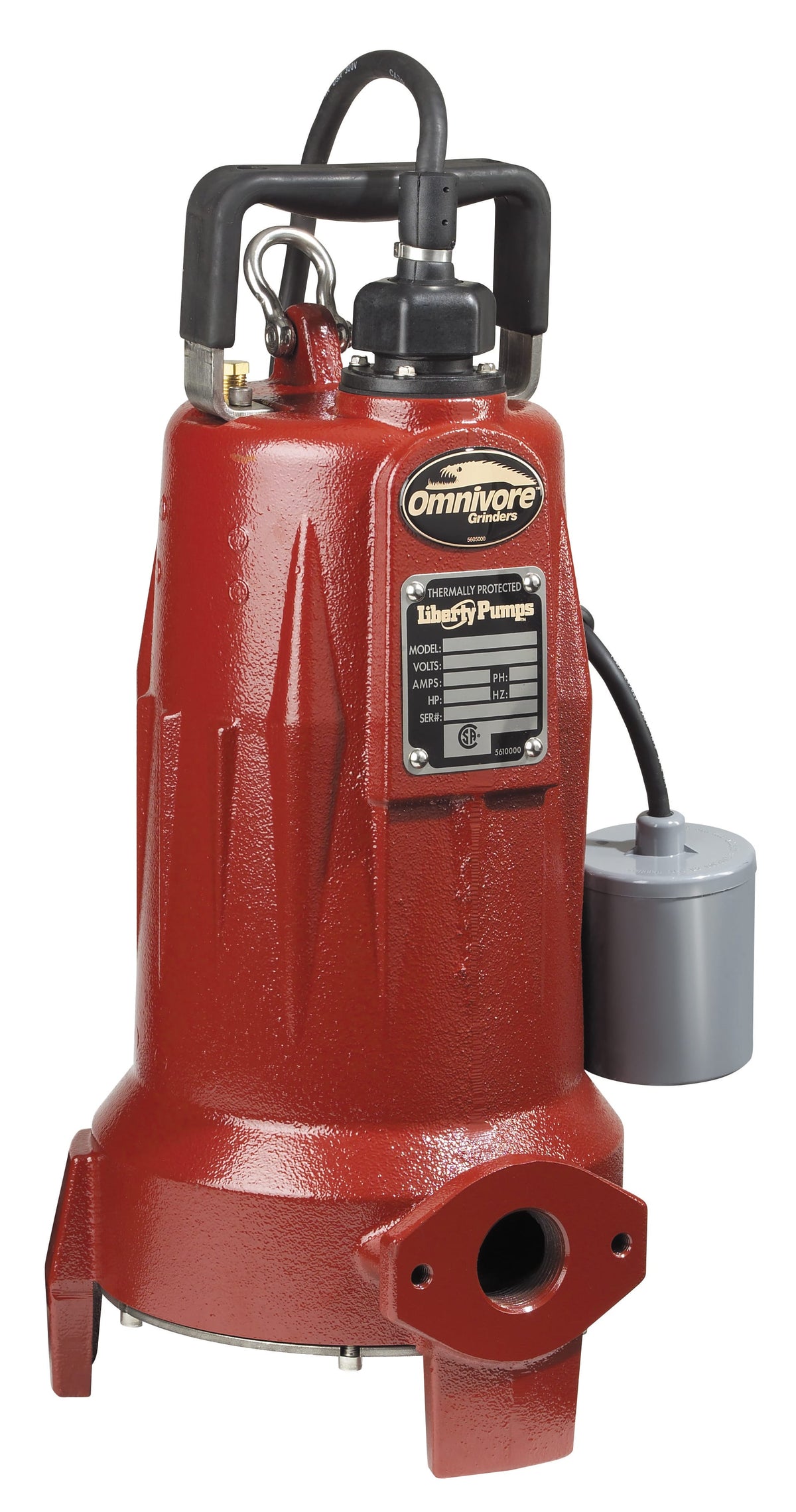

Liberty Pumps LSG202A is a 2 HP automatic grinder pump for 208-230V single-phase power, with a 25' cord and a 1-1/4" discharge.
A grinder pump macerates solids in wastewater and pushes it through a small-diameter discharge line, which is useful where gravity drainage is not available. This model has a wide angle float switch for automatic operation and a 1-1/4" FIP discharge.
Confirm that your electrical supply is 208-230V single phase and that the circuit is sized for a 2 HP motor. The basin, check valve and discharge piping are selected separately, so compare the pump dimensions with the basin and check the specifications for the head you need.
Specifications
- Brand: Liberty Pumps
- Manufacturer Part #: LSG202A
- Collection: LSG200 Series
- Type: Grinder Pumps
- Horsepower: 2 HP
- Phase: 1
- Volts: 208/230
- Cord Length: 25'
- Connection Type: FIP
- Size: 1-1/4"
- Switch: Wide angle float
- UPC: 671812110173
- Category: Sewage Pumps
Documents
- Brochure (PDF)
- Installation and Operation Manual (PDF)
- Specification Sheet (PDF)
