| Connection Type | FIP x FIP |
| Material | Bronze |
| WOG | 600 WOG |
Description

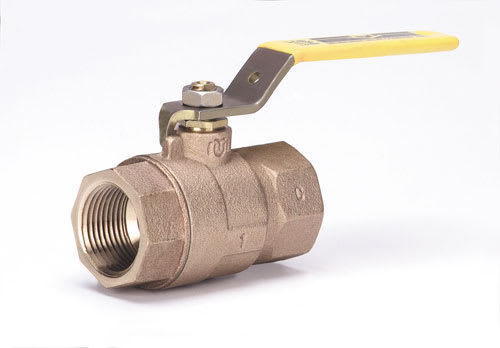

Milwaukee Valve BA-100-A-114 is a 1-1/4 in. two-piece bronze ball valve with FIP x FIP threaded ends, rated 150 SWP and 600 WOG.
A ball valve is a quarter-turn shutoff valve. This standard port valve has an RPTFE seat and a stainless steel ball, and the listing describes it as a two-piece bronze valve with threaded ends.
FIP means female iron pipe threads on both ends, so the mating pipe or nipples need male threads. Standard port is not full port, so check that the flow capacity meets your needs, and compare the 150 SWP and 600 WOG ratings with your system before ordering.
Specifications
- Brand: Milwaukee Valve
- Manufacturer Part #: BA-100-A-114
- Size: 1-1/4"
- Connection Type: FIP x FIP
- Material: Bronze
- Port: Standard Port
- WOG: 600 WOG
- Seat: RPTFE
- Ball: Stainless Steel
- UPC: 697988100206
- Category: FIP Ball Valves
Documents
- Installation Manual (PDF)
- Specification Sheet (PDF)
