| Commercial or Residential | Primarily Residential |
| Inlet Size | 1/2 |
Description

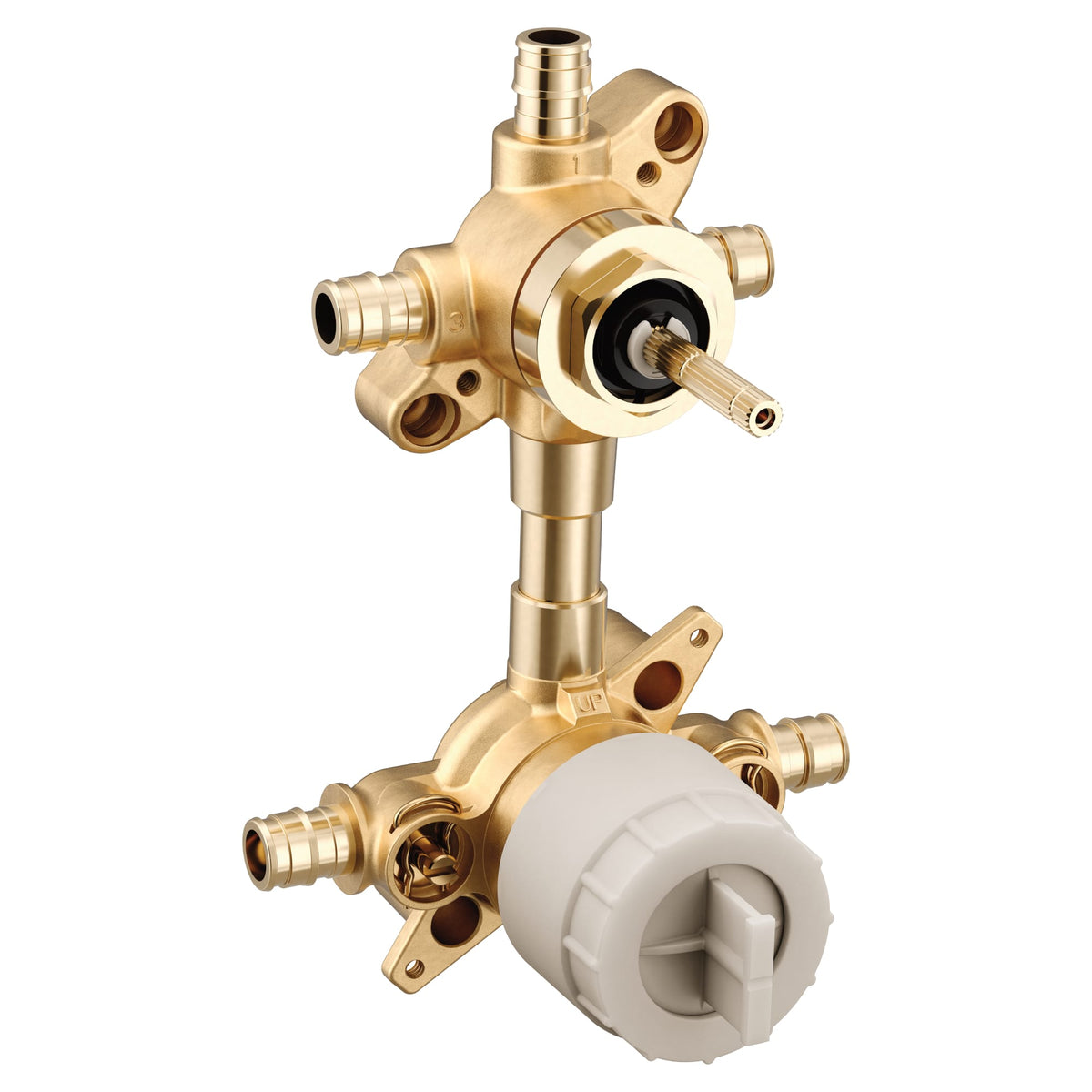

Moen U232CXS is an M-CORE 3-Series valve with a 2 or 3 function integrated transfer valve, cold expansion PEX connections and stops.
The integrated transfer valve can control two or three showering devices, and a simple transfer cartridge modification changes the flow from two outlets to three. When only two devices are used, outlet 3 must be capped, and caps are not included with the transfer valves.
This listing is for the valve only, so the trim is selected separately. Check the instruction sheet and parts list in the documents below, and confirm that cold expansion PEX connections match your piping and that the number of outlets matches your shower design.
Specifications
- Brand: Moen
- Manufacturer Part #: U232CXS
- Collection: M-CORE 3-Series
- Inlet Size: 1/2
- Commercial or Residential: Primarily Residential
- Connections: Cold Expansion PEX with stops
- Category: Shower and Tub-Shower Valves
Documents
- Installation Instructions (PDF)
- Parts List (PDF)
- Specification Sheet (PDF)
