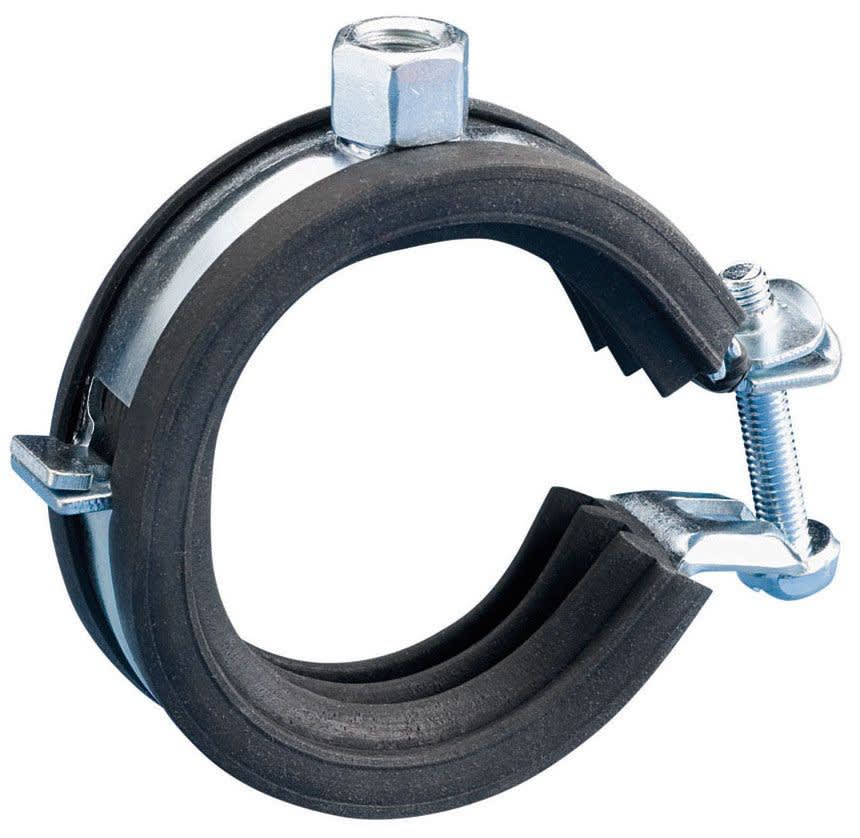

nVent Caddy 454008 CADDY Superfix 454 Standard Duty, 1.89"-2.047" (48-48.3 mm) OD, 1 1/2" Pipe

nVent Caddy 454008 is a CADDY Superfix 454 standard duty pipe support for 1-1/2" pipe with a 1.89"-2.047" (48-48.3 mm) outside diameter range.

The supplier lists a 180 lb static load rating and steel and EPDM-SBR rubber construction. Check the actual pipe outside diameter, not just the nominal size, against the 1.89"-2.047" range.

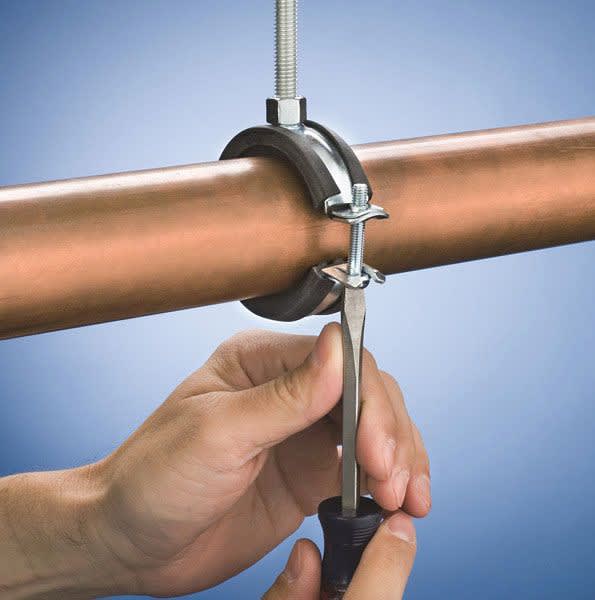

Confirm the load, the pipe material and how the support will be attached before ordering. The catalog page, installation instructions and specification documents are linked below.

Specifications

• Brand: nVent Caddy
• Manufacturer Part #: 454008
• Load Rating: 180 lb (Static)
• Material: Steel; EPDM-SBR Rubber
• Size: 1-1/2"
• Type: CADDY Superfix

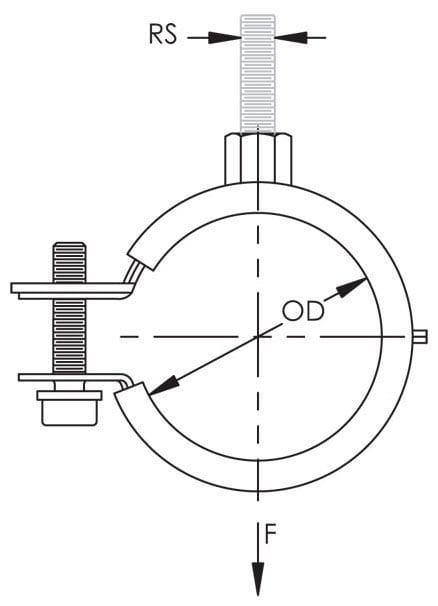

• Outside Diameter Range: 1.89"-2.047" (48-48.3 mm)
• UPC: 782856590507
• Category: Cushion Clamps

Documents

• Catalog Page (PDF)
• Installation Instructions (PDF)
• Technical Specifications (PDF)
• Specification Sheet (PDF)
