| Cold & Hot Connections | 3/4" MIP |
| Efficiency Tier | 90% and above |
| First Hour Rating | 55 gal |
| Installation Type | Medium |
| Tank Capacity | 30 - 60 Gallons |
| Tank Diameter | 20-1/4" |
| Tank Height | 48-3/8" |
| Tank Size | 40 gallon |
| Uniform Energy Factor (UEF) | 0.92 |
| Volts | 240 V |
| Warranty | 8 Year |
| Watts | 4.5 kW |
Description

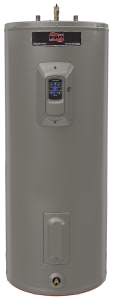

RUUD PRO+E50-M2-RU92-CL is a 50 gallon Classic Plus electric water heater.
This 50-gallon Classic Plus electric tank water heater is rated 4.5 kW at 240 V and uses 3/4" MIP hot and cold connections. Confirm the tank height and diameter against the space before ordering.
Electric water heaters need a dedicated circuit, so confirm the available voltage, breaker size and wire gauge against the installation manual and local code before ordering. Check that the tank height and diameter fit the space, that the hot and cold connections line up with the existing piping, and that a temperature and pressure relief valve with a discharge line is installed as code requires.
Specifications
- Brand: RUUD
- Manufacturer Part #: PRO+E50-M2-RU92-CL
- Tank Size: 50 gallon
- Cold & Hot Connections: 3/4" MIP
- Efficiency Tier: 90% and above
- Uniform Energy Factor (UEF): 0.92
- Volts: 240 V
- Warranty: 8 Year
- Watts: 4.5 kW
- Category: Residential Tank Heaters - Electric
Documents
- Brochure (PDF)
- Catalog (PDF)
- Specification Sheet (PDF)
