| BTU Category | 0-50,000 Btu/h |
| BTU Input Maximum | 40,000 Btu/h |
| Cold & Hot Connections | 3/4" MIP |
| Efficiency Tier | Less than 90% |
| Elevation Rating | 10,100' |
| First Hour Rating | 66 gal |
| Fuel Type | Natural Gas |
| Gas Inlet | 1/2" |
| Tank Capacity | 30 - 60 Gallons |
| Tank Diameter | 23" |
| Tank Height | 50-1/2" |
| Tank Size | 40 gallon |
| Uniform Energy Factor (UEF) | 0.58 |
| Vent Material | B-Vent |
| Vent Size | 3" or 4" |
| Vent Type | Atmospheric |
| Warranty | 8 Year |
Description

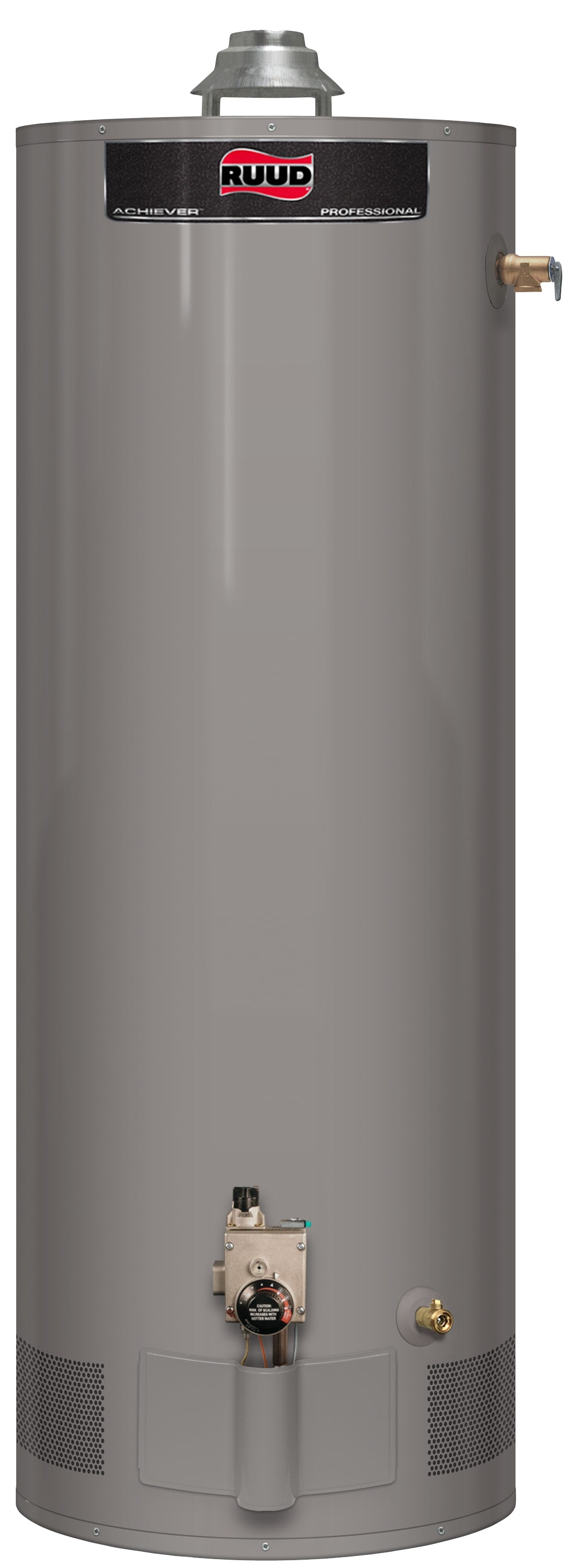

RUUD PRO+G40S-40N-RU62 is a 40 gallon short natural gas water heater.
This 40-gallon short natural gas tank water heater has a 40,000 Btu/h maximum input, 3/4" MIP hot and cold connections and a 1/2" gas inlet. It is an atmospheric vent model for 3" or 4" B-vent, and the manufacturer describes it as a Professional Achiever Plus unit with a Guardian System flammable-vapor shut-off.
Gas water heaters need a proper vent, combustion air and a gas line sized for the input, and natural gas and propane models are not interchangeable, so confirm the fuel type before ordering. Check the tank height and diameter against the space, line up the hot and cold connections with the existing piping, and have the installation follow the manufacturer's manual and local code.
Specifications
- Brand: RUUD
- Manufacturer Part #: PRO+G40S-40N-RU62
- BTU Input Maximum: 40,000 Btu/h
- Cold & Hot Connections: 3/4" MIP
- Efficiency Tier: Less than 90%
- Elevation Rating: 10,100'
- First Hour Rating: 66 gal
- Fuel Type: Natural Gas
- Gas Inlet: 1/2"
- Tank Diameter: 23"
- Tank Height: 50-1/2"
- Tank Size: 40 gallon
- Uniform Energy Factor (UEF): 0.58
- Vent Material: B-Vent
- Vent Size: 3" or 4"
- Vent Type: Atmospheric
- Warranty: 8 Year
- Category: Residential Tank Heaters - Gas
Documents
- Installation Guide (PDF)
- Specification Sheet (PDF)
- UEF Guide (PDF)
See also: residential tank heaters - gas.
