| Bypass | No |
| Connection Size | 1-1/2" |
| Connection Type | Female Threaded |
| Material | Lead Free Bronze |
| Test Status | Testable |
| Type | Double Check Valve Assembly |
Description

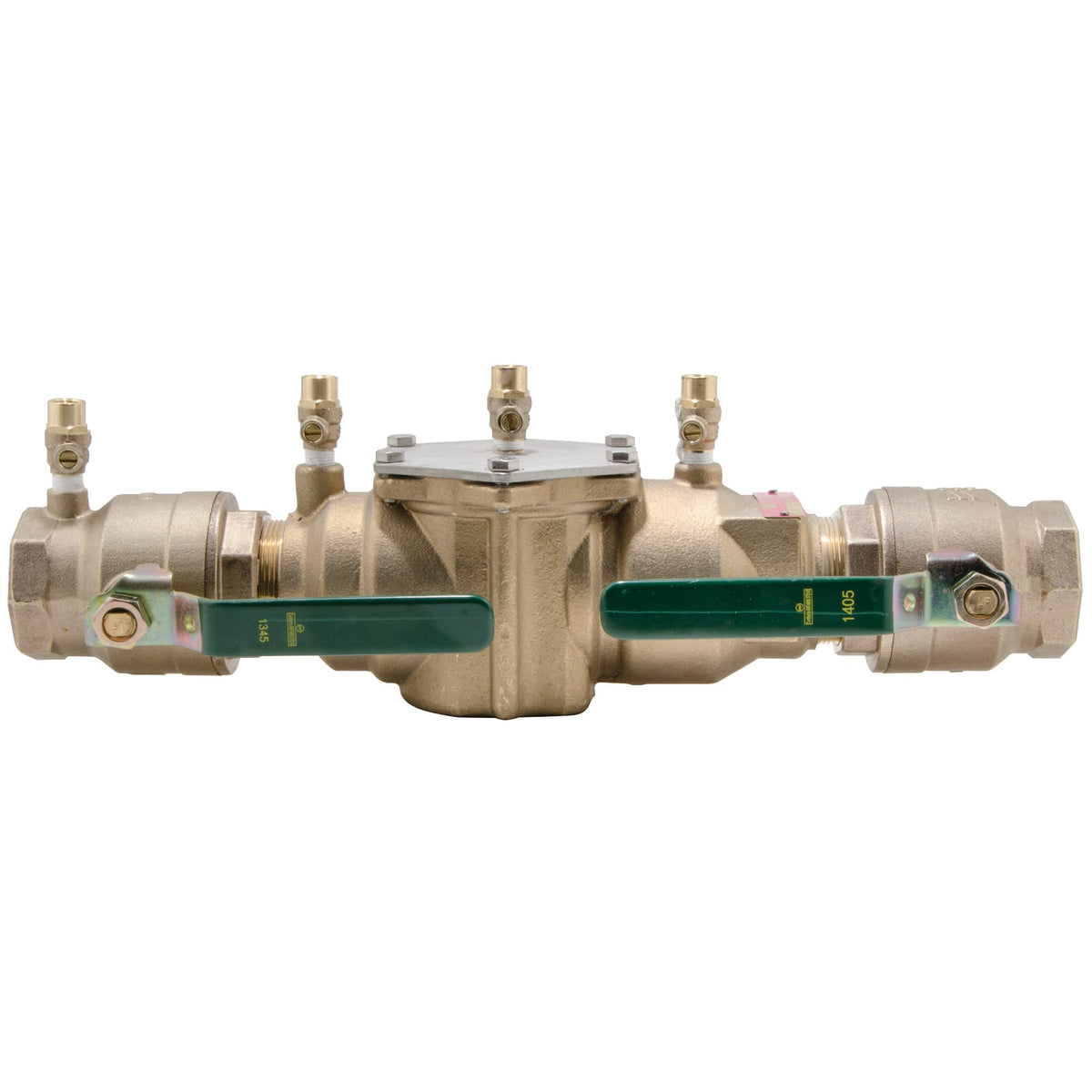

Watts T063234 is a 1-1/2" lead free double check valve backflow preventer assembly with quarter turn shutoffs and single top entry, with a freeze stop.
The manufacturer says a double check assembly is designed to prevent polluted water from flowing back into the potable supply due to backsiphonage or backpressure. It has a lead free body, NPT end connections, quarter turn ball valve shutoffs, top mounted test cocks and replaceable check discs and seats.
The compact modular design uses a single access cover for in-line repairs. Backflow assemblies are regulated, so check local water authority requirements and testing rules before ordering. The instruction manual and specification sheet are linked below.
Specifications
- Brand: Watts
- Manufacturer Part #: T063234
- Connection Size: 1-1/2"
- Connection Type: Female Threaded
- Material: Lead Free Bronze
- Bypass: No
- Test Status: Testable
- Type: Double Check Valve Assembly
- Category: Backflow Preventers
Documents
- Instruction Manual (PDF)
- Specification Sheet (PDF)
