| Application | Commercial & Residential Plumbing, Heating |
| Connection Size | 1" |
| Connection Type | FPT Union x Press |
| Material | Lead-Free Forged Brass |
| Pressure Rating | 250 PSI CWP Max |
| Temperature Rating (Max) | 250 F Max |
| Type | Ball Valve - /w Drain, Single Union End |
Description

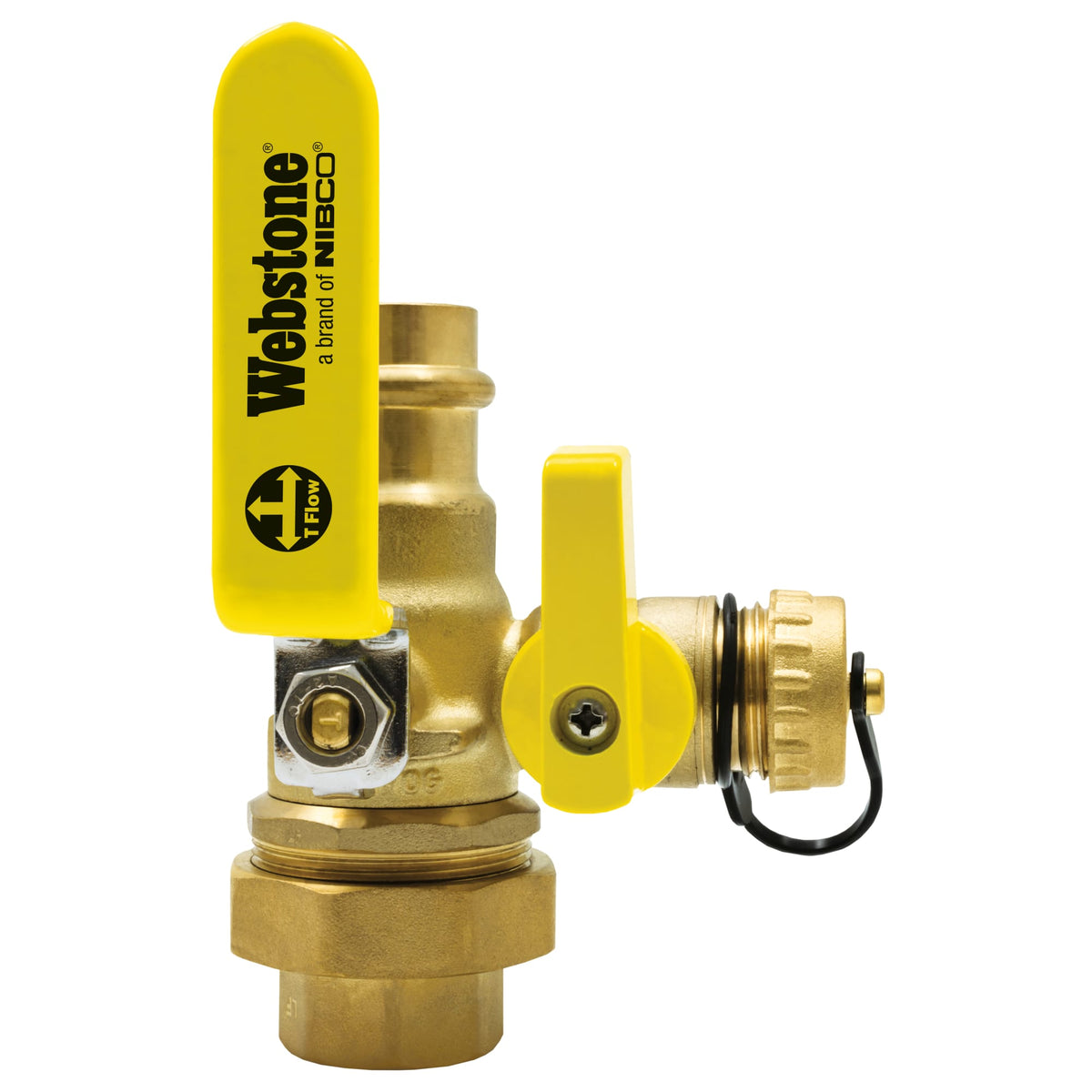

Webstone H-80434W is a 1" full port forged brass ball valve with an FIP union end, a press end and a hose drain, lead-free.
The manufacturer describes a Pro-Pal union ball drain valve with a single union end, a Hi-Flow hose drain, a reversible handle and adjustable packing glands. It is meant to remove the extra parts otherwise needed to isolate and drain a section of a piped system.
The listed pressure rating is 250 PSI CWP maximum and the maximum temperature is 250 F. Press connections need a compatible press tool, so confirm the 1" size and connection types before ordering.
Specifications
- Brand: Webstone
- Manufacturer Part #: H-80434W
- Application: Commercial & Residential Plumbing, Heating
- Connection Size: 1"
- Connection Type: FPT Union x Press
- Material: Lead-Free Forged Brass
- Pressure Rating: 250 PSI CWP Max
- Temperature Rating (Max): 250 F Max
- Type: Ball Valve - /w Drain, Single Union End
- UPC: 018394012868
- Category: Specialty Ball Valves
Documents
- Pro-Connect Press Installation and Operation Manual (PDF)
- Specification Sheet (PDF)
- Warranty (PDF)
